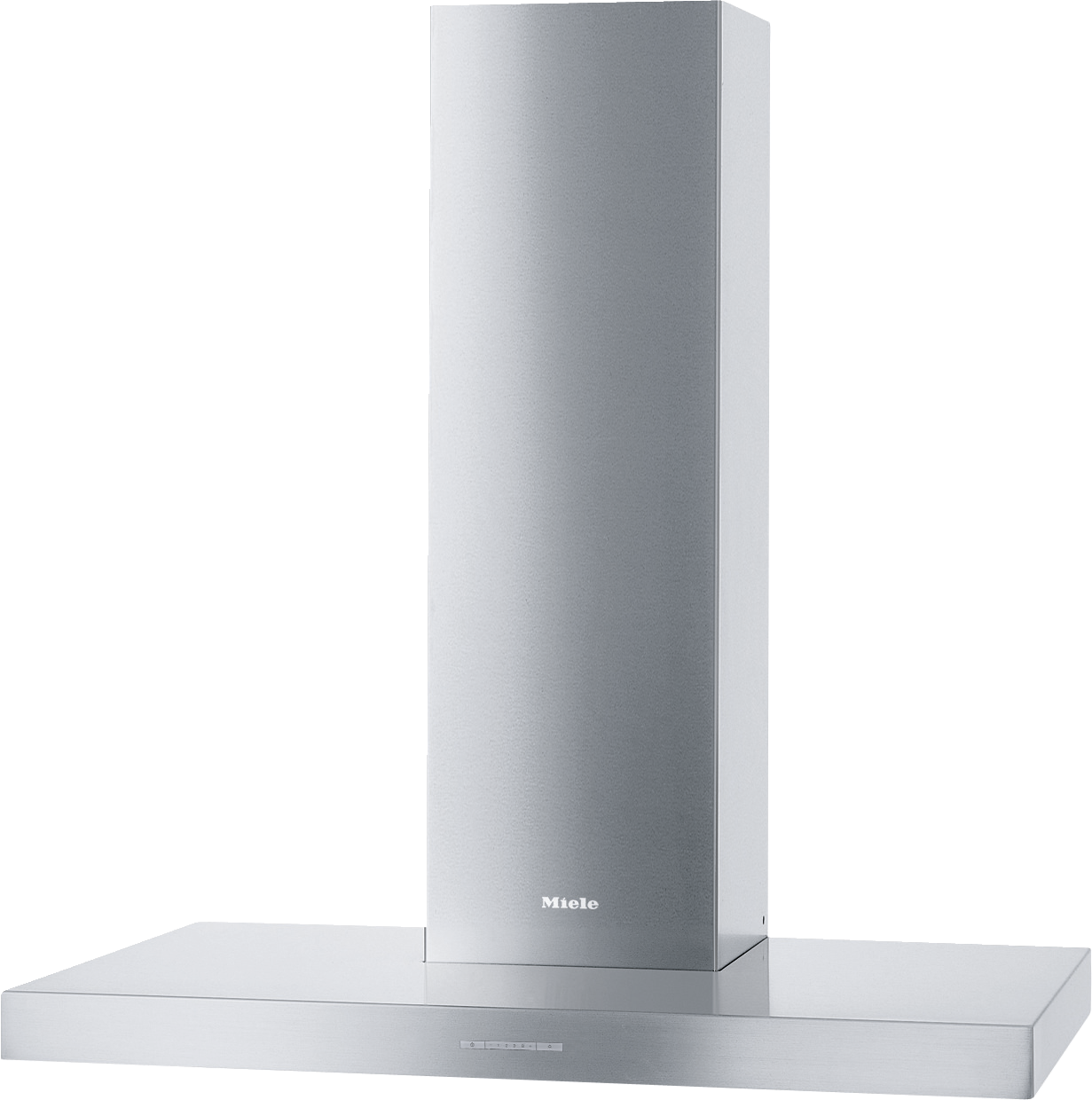

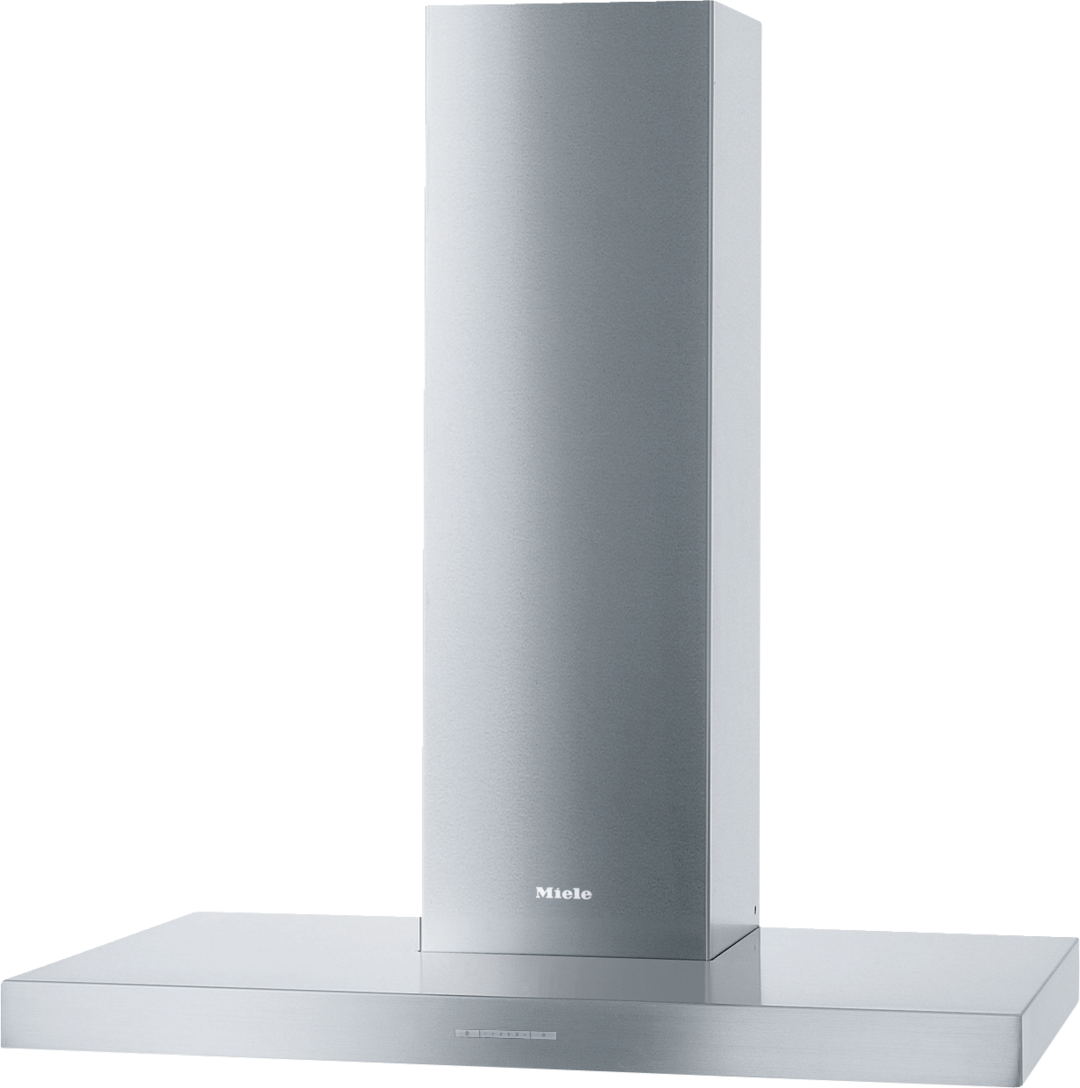

Wall mounted cooker hood
PUR 98 W Stainless steel
with EasySwitch light-touch switches for convenient operation and LED lighting
Colour:Stainless steel
sale price€1,299.99
A contribution to recycling costs (PRF) of 5 EUR for large domestic appliances and 10 EUR for American Side by Side refrigeration is Included in the retail price. No fees apply to Vacuum Cleaners, Accessories, Hobs, Microwaves, Hoods or Coffee Machines.
You can select the following services for this product in your basket:
- Built-In Installation (€70.00)
- WEEE Collection (€0.00)
Product details
- Powerful - 650 m3/h on the booster setting
- Efficient filtration-10-ply stainless-steel grease filter
- Safe and easy to clean -Miele CleanCover
- Suitable for every home - for extraction or recirculation
Wall mounted cooker hood
Type of air guideCan be retrofitted
Recirculation conversion kit (order separately)DUW 20
Active charcoal filter (order separately)DKF 12-P
ColourStainless steel
Possible in RAL colour (specify colour code when ordering)
Electronic controls
ControlsLight-touch switches with LEDs
Power levels (number without Booster level)3
Booster levels1
Programmable Booster level switch-off
Easy-to-clean canopy interior – CleanCover
Energy efficiency class (A+++ to D)A
Annual energy consumption in kWh/year49.7
Fluid dynamic efficiency classA
Lighting efficiency classA
Grease filtering efficiency classA
Easy-to-clean canopy interior – CleanCover
Number of dishwasher-safe stainless steel grease filters (10-ply)3
LED
Number x W3 x 3 W
Light intensity in Lx450 lx
Colour temperature in K3000 Kelvin
Dual-action blower
AC motor
Air throughput in Level 1 (m³/h) according to EN 61591265
Air throughput in Level 2 (m³/h) according to EN 61591320
Air throughput in Level 3 (m³/h) according to EN 61591395
Air throughput in booster level 1 (m³/h)650
Sound power in Level 1 (dB(A) re 1 pW) according to EN 60704-347
Sound power in Level 2 (dB(A) re 1 pW) according to EN 60704-352
Sound power in Level 3 (dB(A) re 1 pW) according to EN 60704-356
Sound power in Booster level 1 (dB(A) re 1 pW) acc. to EN 60704-367
Sound pressure in Level 1 (dB(A) re 20 µPa) according to EN 60704-2-1332
Sound pressure in Level 2 (dB(A) re 20 µPa) according to EN 60704-2-1337
Sound pressure in Level 3 (dB(A) re 20 µPa) according to EN 60704-2-1341
Sound pressure in Booster level 1 (dB(A) re 20 µPa) acc. to EN 60704-2-1352
Air throughput in Level 1 (m³/h) according to EN 61591190
Air throughput in Level 2 (m³/h) according to EN 61591270
Air throughput in Level 3 (m³/h) according to EN 61591330
Air throughput in Booster level 1 (m³/h) according to EN 61591460
Sound power in Level 1 (dB(A) re 1 pW) according to EN 60704-354
Sound power in Level 2 (dB(A) re 1 pW) according to EN 60704-360
Sound power in Level 3 (dB(A) re 1 pW) according to EN 60704-364
Sound power in Booster level 1 (dB(A) re 1 pW) acc. to EN 60704-371
Sound pressure in Level 1 (dB(A) re 20 µPa) according to EN 60704-2-1339
Sound pressure in Level 2 (dB(A) re 20 µPa) according to EN 60704-2-1345
Sound pressure in Level 3 (dB(A) re 20 µPa) according to EN 60704-2-1348
Sound pressure in Booster level 1 (dB(A) re 20 µPa) acc. to EN 60704-2-1356
Safety shut-off
Overall height for vented and external in in. (mm)685
Overall height for extraction mode and external mode cooker hoods in mm1005
Overall height for recirculation in in. (mm)815
Overall height for recirculation mode cooker hoods in mm1135
Canopy width in in. (mm)898
Canopy height in in. (mm)62
Depth of hood canopy in in. (mm)500
Minimum height above electric hobs in mm450
Minimum safety distance above gas hobs (max. 12.6 kW total power, burner ≤ 4.5 kW) in mm650
Net weight in kg25
Length of supply lead in m1.5
Standard plug fitted
Total rated load in kW0.229
Voltage in V230
Fuse rating in A10
Frequency in Hz50
Number of phases1
Extraction ducting connection at top
Extraction connection at top and rear
Diameter of extraction ducting connection in mm150
Telescopic chimney
Non-return flap
EAN4002515752791
Non-return flap

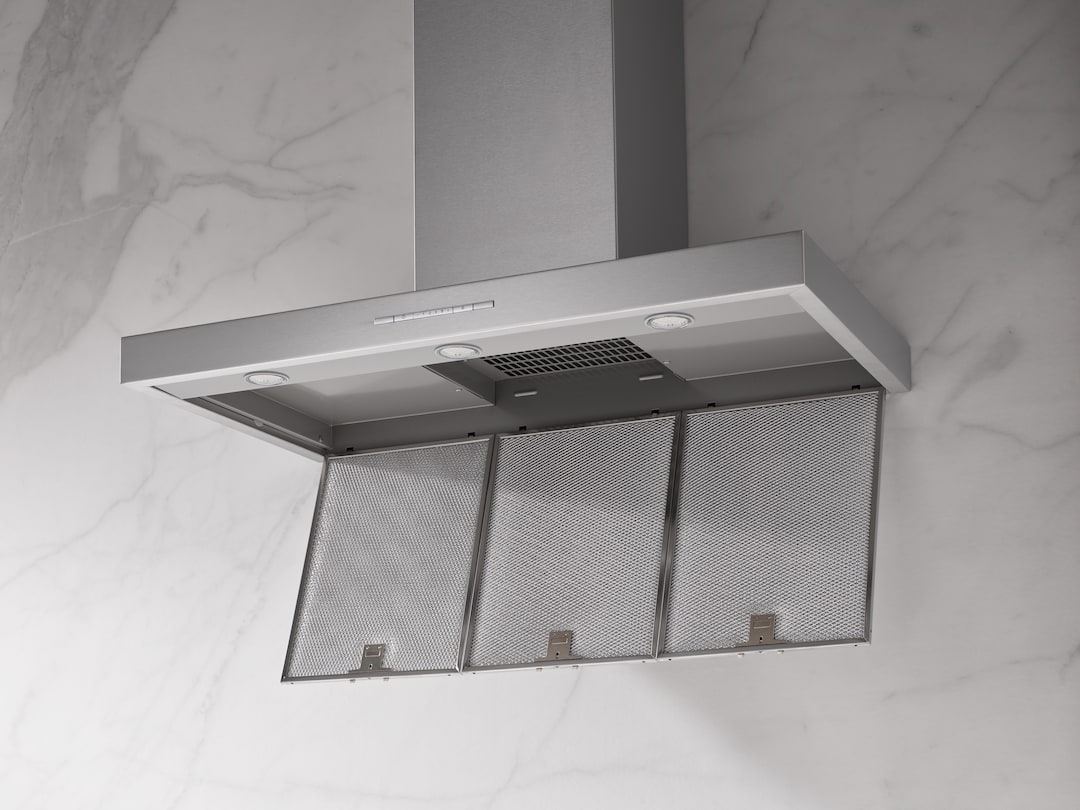

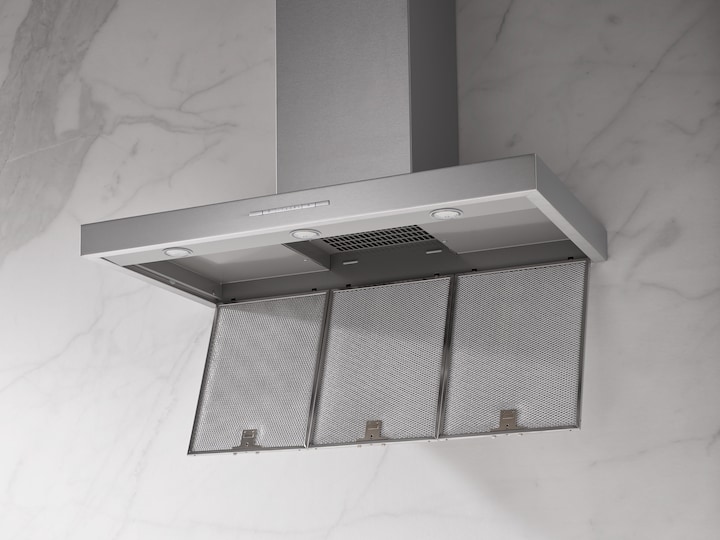

Easy to use and effective against grease
Stainless steel grease filters (10-layer)
Looks great and does a good job: effective grease filtering and easy cleaning in a dishwasher.
Convenience and safety in detail
Miele CleanCover
Protection and easy cleaning: the smooth concealed surface prevents contact with electrical components and motor.
Always on the safe side
Safety switch-off
Sensible, even in case of operating errors: the cooker hood switches off automatically after 10 hours.
Easy to use and effective against grease
Stainless steel grease filters (10-layer)
Looks great and does a good job: effective grease filtering and easy cleaning in a dishwasher.
Convenience and safety in detail
Miele CleanCover
Protection and easy cleaning: the smooth concealed surface prevents contact with electrical components and motor.
Matching products and accessories
Downloads
Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts. In the event of queries, please ring us for some no-obligation advice!
Descriptions
PUR92W Living, PUR98W, DA419-6, DA419-7 (Installation drawing)
1) Extraction, 2) Recirculation, 3) Ventilation grille at top for recirculation, 4+5) Installation cut-out (5 not required for recirculation) - 1.A contribution to recycling costs (PRF) of 5 EUR for large domestic appliances and 10 EUR for American Side by Side refrigeration is Included in the retail price. No fees apply to Vacuum Cleaners, Accessories, Hobs, Microwaves, Hoods or Coffee Machines.
We reserve the right to make technical changes; we assume no liability for the accuracy of the information provided.
