Built-under cooker hood
DA 1260 Stainless steel
with energy-efficient LED lighting and sliding switch for simple operation.
Colour:Stainless steel
sale price€539.99
A contribution to recycling costs (PRF) of 5 EUR for large domestic appliances and 10 EUR for American Side by Side refrigeration is Included in the retail price. No fees apply to Vacuum Cleaners, Accessories, Hobs, Microwaves, Hoods or Coffee Machines.
Retail price includes 23% VAT.
Product details
- Minimalist design - 598 mm wide space saving solution
- Powerful - 545 m3/h on the booster setting
- Efficient filtration-10-ply stainless-steel grease filter
- Safe and easy to clean -Miele CleanCover
- Suitable for every home - for extraction or recirculation
Built-under hood
Type of air guideCan be retrofitted

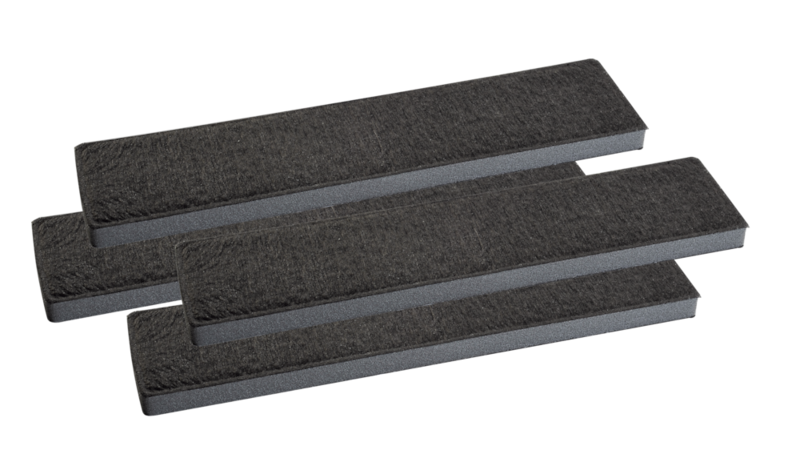

Active charcoal filter (order separately)DKF 18-P
ColourStainless steel
Mechanical controls
Slide switch
ControlsSlide switch
Power levels (number without Booster level)3
Booster levels1
Easy-to-clean canopy interior – CleanCover
Energy efficiency class (A+++ to D)C
Annual energy consumption in kWh/year91.6
Fluid dynamic efficiency classD
Lighting efficiency classA
Grease filtering efficiency classA
Easy-to-clean canopy interior – CleanCover
Number of dishwasher-safe stainless steel grease filters (10-ply)2
LED
Number x W2 x 3 W
Light intensity in Lx330 lx
Colour temperature in K3000 Kelvin
Single-action blower
AC motor
Air throughput in Level 1 (m³/h) according to EN 61591275
Air throughput in Level 2 (m³/h) according to EN 61591315
Air throughput in Level 3 (m³/h) according to EN 61591355
Air throughput in booster level 1 (m³/h)545
Sound power in Level 1 (dB(A) re 1 pW) according to EN 60704-357
Sound power in Level 2 (dB(A) re 1 pW) according to EN 60704-360
Sound power in Level 3 (dB(A) re 1 pW) according to EN 60704-364
Sound power in Booster level 1 (dB(A) re 1 pW) acc. to EN 60704-374
Sound pressure in Level 1 (dB(A) re 20 µPa) according to EN 60704-2-1343
Sound pressure in Level 2 (dB(A) re 20 µPa) according to EN 60704-2-1347
Sound pressure in Level 3 (dB(A) re 20 µPa) according to EN 60704-2-1350
Sound pressure in Booster level 1 (dB(A) re 20 µPa) acc. to EN 60704-2-1360
Air throughput in Level 1 (m³/h) according to EN 61591165
Air throughput in Level 2 (m³/h) according to EN 61591180
Air throughput in Level 3 (m³/h) according to EN 61591195
Air throughput in Booster level 1 (m³/h) according to EN 61591220
Sound power in Level 1 (dB(A) re 1 pW) according to EN 60704-371
Sound power in Level 2 (dB(A) re 1 pW) according to EN 60704-372
Sound power in Level 3 (dB(A) re 1 pW) according to EN 60704-373
Sound power in Booster level 1 (dB(A) re 1 pW) acc. to EN 60704-375
Sound pressure in Level 1 (dB(A) re 20 µPa) according to EN 60704-2-1357
Sound pressure in Level 2 (dB(A) re 20 µPa) according to EN 60704-2-1358
Sound pressure in Level 3 (dB(A) re 20 µPa) according to EN 60704-2-1359
Sound pressure in Booster level 1 (dB(A) re 20 µPa) acc. to EN 60704-2-1362
Canopy width in in. (mm)598
Canopy height in in. (mm)125
Depth of hood canopy in in. (mm)500
Minimum height above electric hobs in mm450
Minimum safety distance above gas hobs (max. 12.6 kW total power, burner ≤ 4.5 kW) in mm650
Net weight in kg11.2
Length of supply lead in m1.5
Standard plug fitted
Total rated load in kW0.236
Voltage in V230
Fuse rating in A10
Frequency in Hz50
Number of phases1
Extraction ducting connection at top
Diameter of extraction ducting connection in mm150
Fitting template
Non-return flap
Deflector for recirculation
EAN4002515792186
Non-return flap
Deflector for recirculation
Easy to use and effective against grease
Stainless steel grease filters (10-layer)
Looks great and does a good job: effective grease filtering and easy cleaning in a dishwasher.
Convenience and safety in detail
Miele CleanCover
Protection and easy cleaning: the smooth concealed surface prevents contact with electrical components and motor.
Easy to use and effective against grease
Stainless steel grease filters (10-layer)
Looks great and does a good job: effective grease filtering and easy cleaning in a dishwasher.
Convenience and safety in detail
Miele CleanCover
Protection and easy cleaning: the smooth concealed surface prevents contact with electrical components and motor.
Matching products and accessories
Downloads
Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts. In the event of queries, please ring us for some no-obligation advice!
- 1.A contribution to recycling costs (PRF) of 5 EUR for large domestic appliances and 10 EUR for American Side by Side refrigeration is Included in the retail price. No fees apply to Vacuum Cleaners, Accessories, Hobs, Microwaves, Hoods or Coffee Machines.
- 2.Retail price includes 23% VAT.
We reserve the right to make technical changes; we assume no liability for the accuracy of the information provided.
