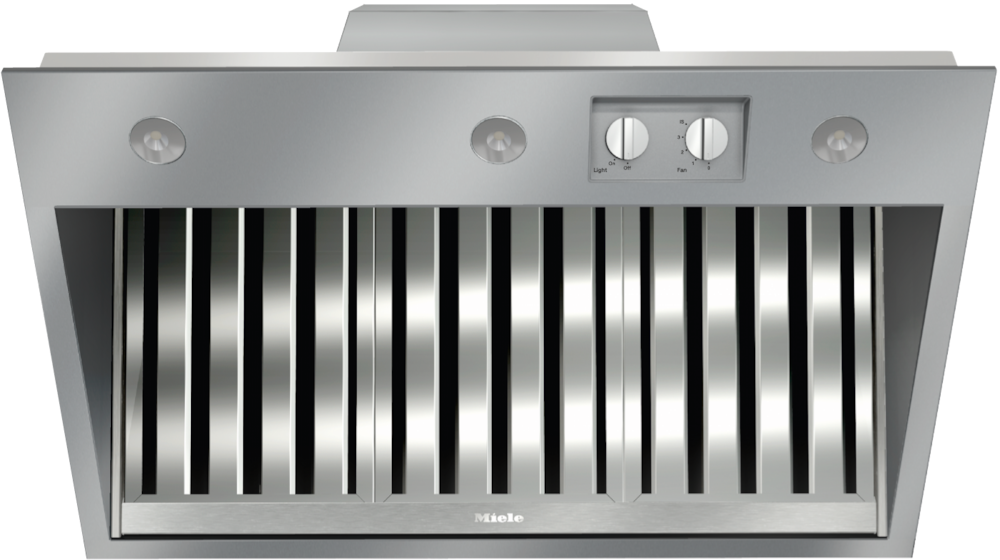

Extractor unit

DAR 1135 Stainless steel

for perfectly combining with Range Cookers or Range Tops.


sale price€2,929.99



Additional services

You can select the following services for this product in your basket:

  • Built-In Installation (€70.00)
  • WEEE Collection (€0.00)

Product details

  • Customised kitchen design - fully integrated in 850 mm
  • Powerful fan - up to 650 m3/h
  • Perfect illumination -LED ClearView lighting
  • Dishwasher-proof - 3 high-qualitystainless steel grease filters
  • Safe and easy to clean -Miele CleanCover

Product data sheet

Integrated extractor
Type of air guideExhaust air
Electronic controls
Rotary knob
Power levels (number without Booster level)3
Temperature sensor

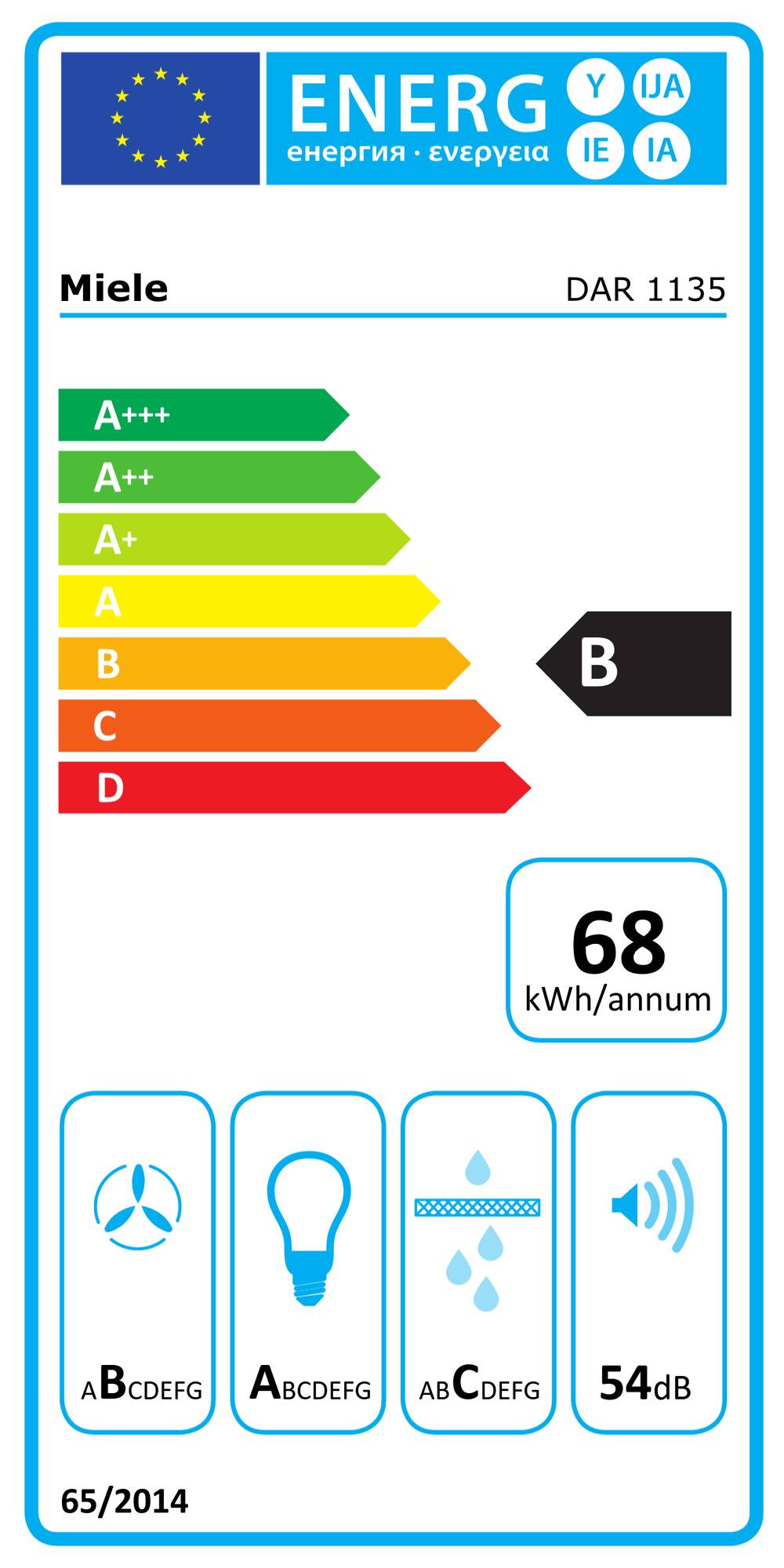

Energy efficiency class (A+++ - D)B
Annual energy consumption in kWh/year68.40
Fluid dynamic efficiency classB
Lighting efficiency classA
Grease filtering efficiency classC
Easy-to-clean canopy interior – CleanCover
Dishwasher-safe grease collection channel
Number of dishwasher-safe stainless steel filters3
LED
Number x W3 x 3 W
Dual-action fan
AC motor
Air throughput in Level 1 (m³/h) according to EN 61591200
Air throughput in Level 2 (m³/h) according to EN 61591300
Air throughput in Level 3 (m³/h) according to EN 61591400
Air throughput in Booster level (m³/h) according to EN 61591650
Sound power in Level 1 (dB(A) re 1 pW) according to EN 60704-339
Sound power in Level 2 (dB(A) re 1 pW) according to EN 60704-348
Sound power in Level 3 (dB(A) re 1 pW) according to EN 60704-354
Sound power in Booster level (dB(A) re 1 pW) acc. to EN 60704-367
Sound pressure in Level 1 (dB(A) re 20 µPa) according to EN 60704-2-1325
Sound pressure in Level 2 (dB(A) re 20 µPa) according to EN 60704-2-1334
Sound pressure in Level 3 (dB(A) re 20 µPa) according to EN 60704-2-1340
Sound pressure in Booster level (dB(A) re 20 µPa) acc. to EN 60704-2-1353
Safety switch-off
Canopy width in mm850
Canopy height in mm449
Canopy depth in mm579
Minimum height above electric hobs in mm450
Minimum height above gas hobs (max. 12.6 kW total power, burner ≤ 4.5 kW) in mm650
Net weight in kg22
Length of supply lead in m1.50
Standard plug fitted
Total rated load in kW0.21
Voltage in V230
Fuse rating in A15
Number of phases1
Extraction ducting connection at top
Extraction ducting connection at rear
Extraction ducting connection on side
Extraction ducting connection at top, rear, and si
Diameter of exhaust duct in mm150
Non-return flap
EAN4002515815748

What's included

Non-return flap

Efficiency and sustainability

Powerful lighting with minimum energy consumption
LED ClearView lighting

Eco-friendly and very durable: with up to 4 x 2 W, they provide the hob with uniform, warm downlighting.


Permanent safety
Temperature sensor

Continuous monitoring: the temperature sensor ensures safety and prevents unnecessary energy consumption.


Features

Convenience and safety in detail
Miele CleanCover

Protection and easy cleaning: the smooth concealed surface prevents contact with electrical components and motor.


User convenience

Discreetly integrated
Rotary controls

Beautiful and functional: metal rotary controls complement the harmonious design of Range Hoods.


Downloads

Product sheet
PDF
Downloads
Warranty conditions
PDF
Downloads
rfa
ZIP
Downloads
fbx
ZIP
Downloads
dwg
ZIP
Downloads
rvt
ZIP
Downloads
ifc
ZIP
Downloads
Product fiche
PDF
Downloads

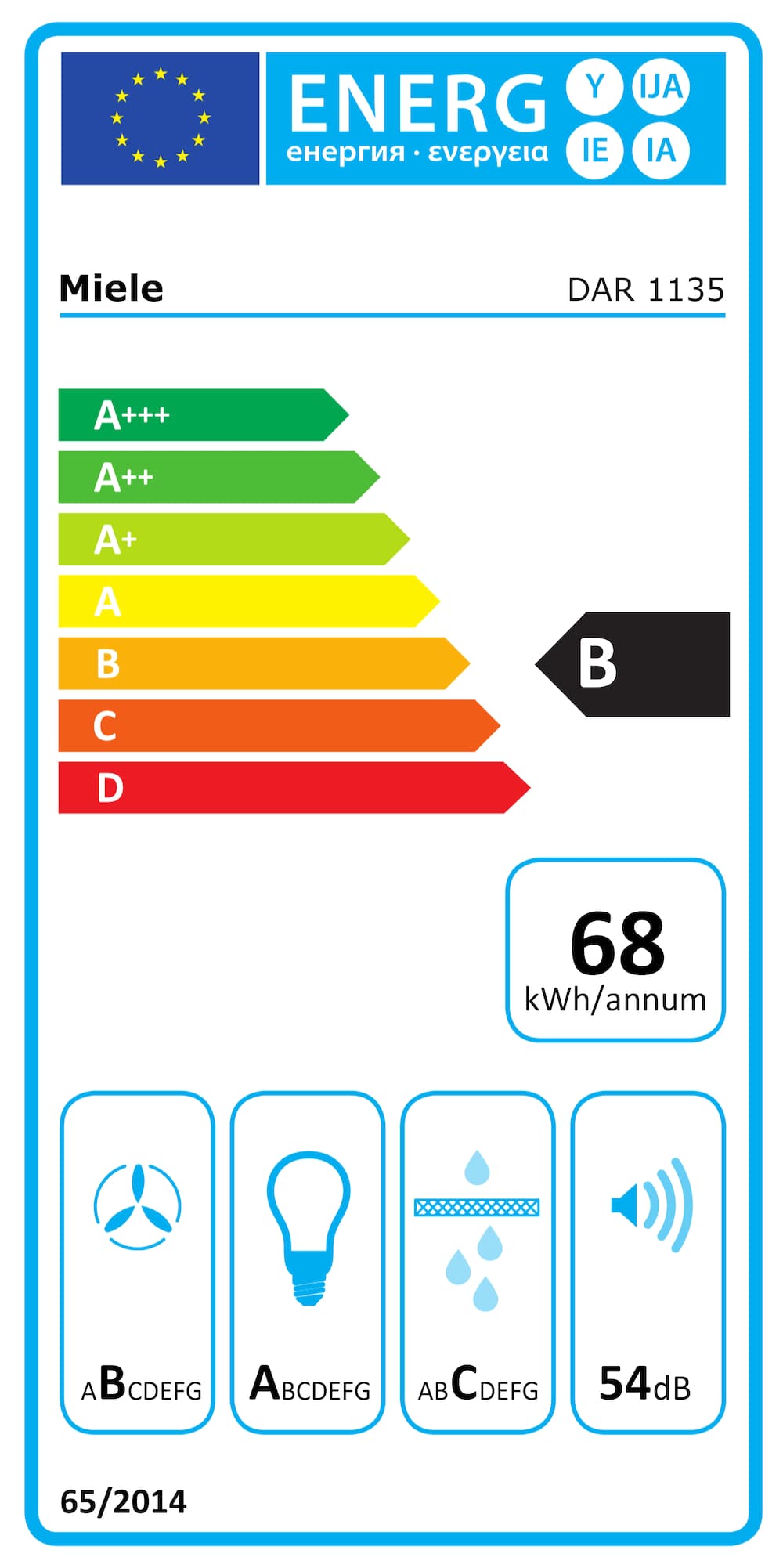

Energy label
PNG
Downloads
Energy label
PDF
Downloads

Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts. In the event of queries, please ring us for some no-obligation advice!

https://media.miele.com/images/2000012/200001292/20000129203.png
Descriptions
DAR1135 (installation drawing)
Installation drawings
Downloads

We reserve the right to make technical changes; we assume no liability for the accuracy of the information provided.
