DAR 1155

undefined - DAR 1155 Stainless steel - 1

Extractor unit

DAR 1155 Stainless steel

Name: DAR 1155
Brand: Miele
SKU: 10598380
Price: 2999.99 EUR
Availability: OutOfStock

for perfectly combining with Range Cookers or Range Tops.

Product data sheet

€2,999.99

Additional services

You can select the following services for this product in your basket:

Built-In Installation (€70.00)
WEEE Collection (€0.00)

Product details

Customised kitchen design - fully integrated in 1155 mm
Powerful fan - up to 650 m3/h
Perfect illumination -LED ClearView lighting
Dishwasher-proof - 4 high-qualitystainless steel grease filters
Safe and easy to clean -Miele CleanCover

Product data sheet

Integrated extractor

Type of air guideExhaust air

Electronic controls

Rotary knob

Power levels (number without Booster level)3

Temperature sensor

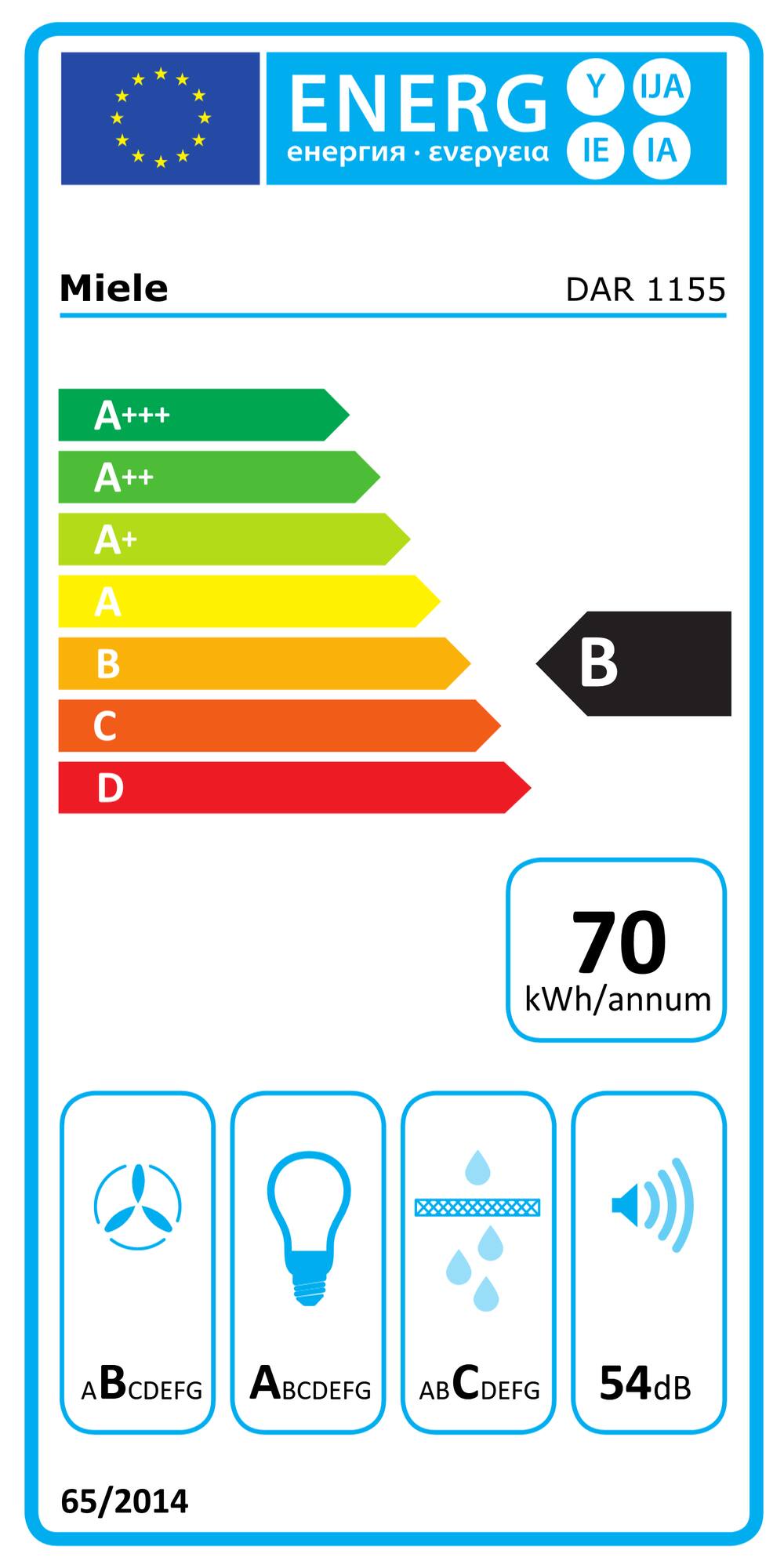

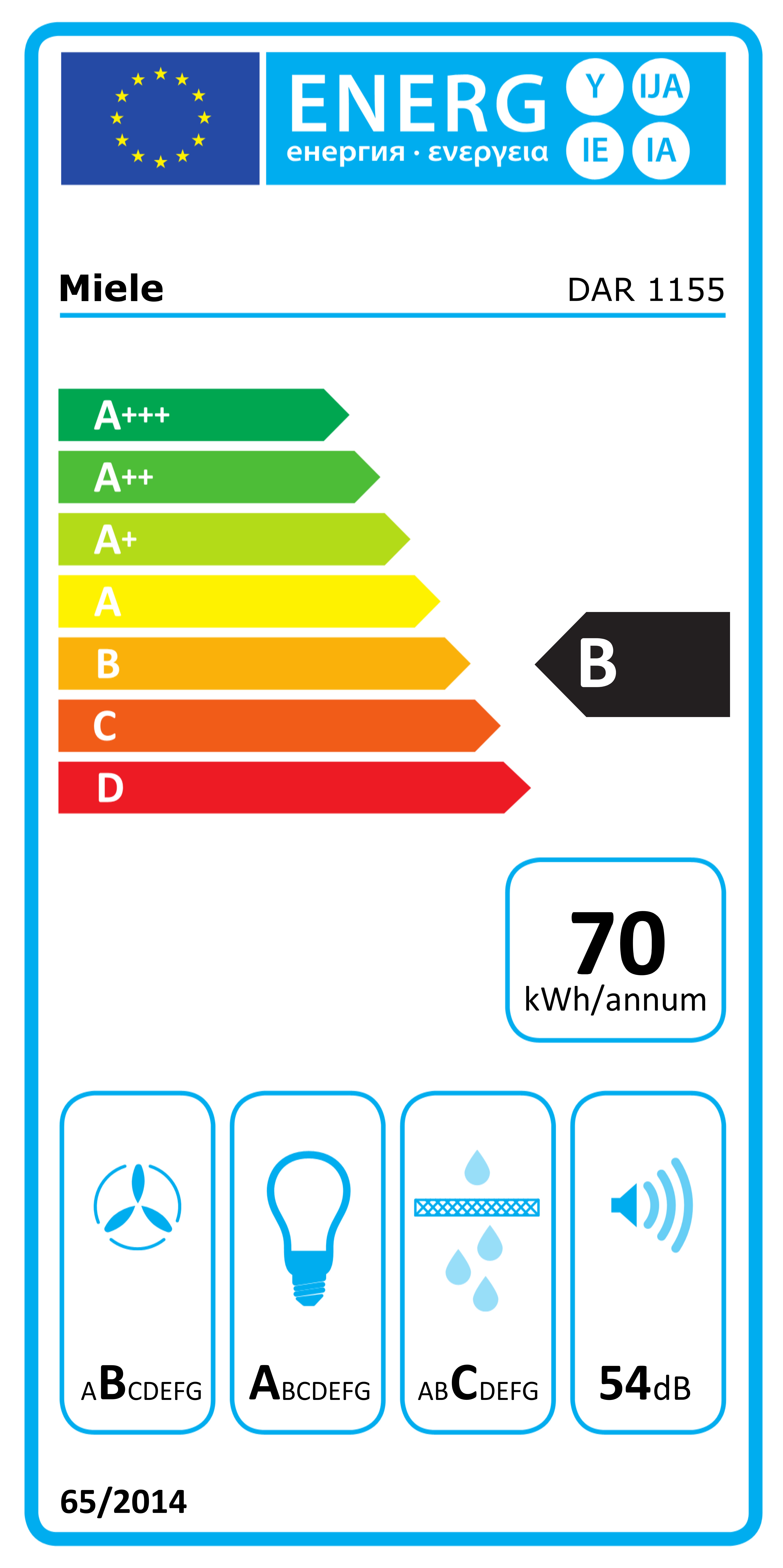

Energy efficiency class (A+++ - D)B

Annual energy consumption in kWh/year69.50

Fluid dynamic efficiency classB

Lighting efficiency classA

Grease filtering efficiency classC

Easy-to-clean canopy interior – CleanCover

Dishwasher-safe grease collection channel

Number of dishwasher-safe stainless steel filters4

LED

Number x W4 x 3 W

Dual-action fan

AC motor

Air throughput in Level 1 (m³/h) according to EN 61591200

Air throughput in Level 2 (m³/h) according to EN 61591300

Air throughput in Level 3 (m³/h) according to EN 61591400

Air throughput in Booster level (m³/h) according to EN 61591650

Sound power in Level 1 (dB(A) re 1 pW) according to EN 60704-339

Sound power in Level 2 (dB(A) re 1 pW) according to EN 60704-348

Sound power in Level 3 (dB(A) re 1 pW) according to EN 60704-354

Sound power in Booster level (dB(A) re 1 pW) acc. to EN 60704-367

Sound pressure in Level 1 (dB(A) re 20 µPa) according to EN 60704-2-1325

Sound pressure in Level 2 (dB(A) re 20 µPa) according to EN 60704-2-1334

Sound pressure in Level 3 (dB(A) re 20 µPa) according to EN 60704-2-1340

Sound pressure in Booster level (dB(A) re 20 µPa) acc. to EN 60704-2-1353

Safety switch-off

Canopy width in mm1155

Canopy height in mm449

Canopy depth in mm579

Minimum height above electric hobs in mm450

Minimum height above gas hobs (max. 12.6 kW total power, burner ≤ 4.5 kW) in mm650

Net weight in kg28

Length of supply lead in m1.50

Standard plug fitted

Total rated load in kW0.21

Voltage in V230

Fuse rating in A15

Number of phases1

Extraction ducting connection at top

Extraction ducting connection at rear

Extraction ducting connection on side

Extraction ducting connection at top, rear, and si

Diameter of exhaust duct in mm150

Non-return flap

EAN4002515815755

What's included

Non-return flap

Powerful lighting with minimum energy consumption

LED ClearView lighting

Eco-friendly and very durable: with up to 4 x 2 W, they provide the hob with uniform, warm downlighting.

Discreetly integrated

Rotary controls

Beautiful and functional: metal rotary controls complement the harmonious design of Range Hoods.

Permanent safety

Temperature sensor

Continuous monitoring: the temperature sensor ensures safety and prevents unnecessary energy consumption.

Convenience and safety in detail

Miele CleanCover

Protection and easy cleaning: the smooth concealed surface prevents contact with electrical components and motor.

Efficiency and sustainability

Powerful lighting with minimum energy consumption

LED ClearView lighting

Eco-friendly and very durable: with up to 4 x 2 W, they provide the hob with uniform, warm downlighting.

Permanent safety

Temperature sensor

Continuous monitoring: the temperature sensor ensures safety and prevents unnecessary energy consumption.

Features

Convenience and safety in detail

Miele CleanCover

Protection and easy cleaning: the smooth concealed surface prevents contact with electrical components and motor.

User convenience

Discreetly integrated

Rotary controls

Beautiful and functional: metal rotary controls complement the harmonious design of Range Hoods.
