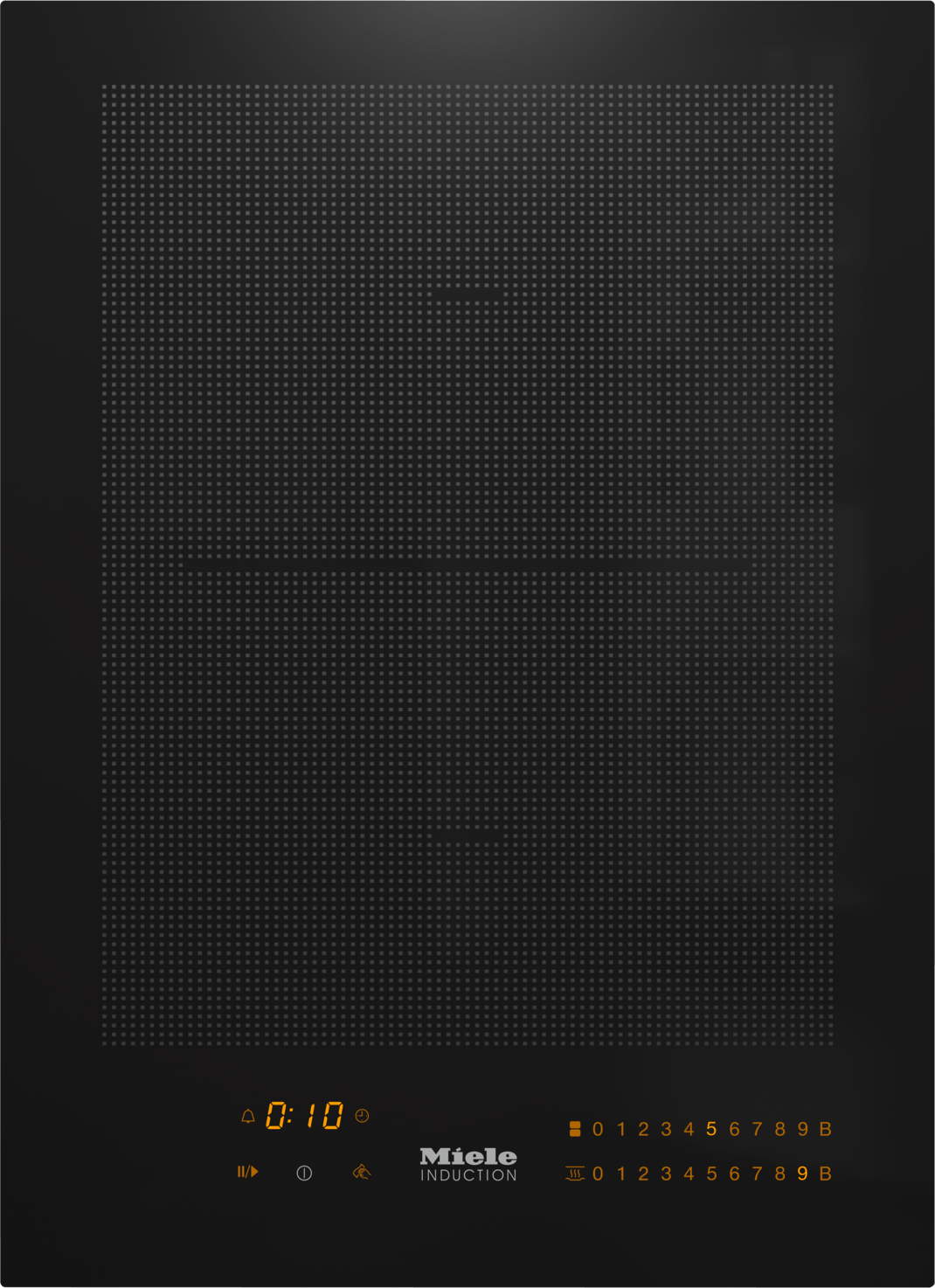

SmartLine element

CS 7612 FL Black

with induction PowerFlex cooking zone


Colour:Black

sale price€1,689.99
A contribution to recycling costs (PRF) of 5 EUR for large domestic appliances and 10 EUR for American Side by Side refrigeration is Included in the retail price. No fees apply to Vacuum Cleaners, Accessories, Hobs, Microwaves, Hoods or Coffee Machines.



Additional services

You can select the following services for this product in your basket:

  • Built-In Installation (€70.00)
  • WEEE Collection (€0.00)

Product details

  • Intuitive quick selection via number sequences –Smart Select
  • Elegant design – for flush or raised installation
  • Seamlessly integrates with anySmartLine element
  • Versatile and fast - 2 cooking zones incl. 1PowerFlex area
  • Shortest heating-up times - TwinBooster

Product data sheet

Heating typeInduction
SmartLine
Elegant glass ceramic surface
Ceramic surface colourBlack
Flush
Surface-mounted installation
Number of cooking zones2
No.2
Size in mmØ 150 – 230
Max. rating in W2100
Max. Booster power rating in W3000
Max. TwinBooster power rating in W3650
PositionCentred
TypePowerFlex
Size in mm230x390
Max. rating in W2100
Max. Booster power rating in W3000
Max. TwinBooster power rating in W3650
Operation via sensor controlsSmart Select
Display colourYellow
Permanent pan recognition
Pan and pan size recognition
Stop & Go function
Wipe protection
Recall function
Minute minder
Safety switch-off
Auto heat-up
Keeping warm
Individual setting options (e.g. buzzers)
Easy to clean ceramic glass
Safety switch-off
Lock function
System lock
Integrated cooling fan
Overheating protection
Residual heat indicator
Dimensions in mm (width)378
Dimensions in mm (height)51
Casing height incl. connection box in mm51
Dimensions in mm (depth)520
Cutout dimensions in mm (width) with surface-mounted installation358
Cutout dimensions in mm (depth) with surface-mounted installation500
Internal cutout dimensions in mm (width) with flush installation358
Internal cutout dimensions in mm (depth) with flush installation500
External cutout dimensions in mm (width) with flush installation382
External cutout dimensions in mm (depth) with flush installation524
Weight in kg7
Total rated load in kW3.60
Voltage in V230
Frequency in Hz50.00-60.00
Length of supply lead in m1.40
Mains cable
EAN4002515893036

What's included

Mains cable

User convenience

Easy to use thanks to SmartSelect
SmartSelect

Quick and intuitive: power levels and times can be selected separately for each cooking zone.


Power function for rapid heat generation
TwinBooster

Unique flexibility: induction output can be individually distributed or used for one single zone.


For large pans too
PowerFlex

Unbeatably fast and versatile: the booster output of up to 3.65 kW.


Setup/function

Best use of energy
Permanent pan recognition

Automatic activation of numerical display: when turned on, pans which are already on a cooking zone are detected.


Downloads

Product sheet
PDF
Downloads
Operating instructions/Installation instructions
PDF
Downloads
Warranty conditions
PDF
Downloads
ifc
ZIP
Downloads
fbx
ZIP
Downloads
dwg
ZIP
Downloads
rfa
ZIP
Downloads
rvt
ZIP
Downloads
Product fiche
PDF
Downloads

Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts. In the event of queries, please ring us for some no-obligation advice!

https://media.miele.com/images/2000013/200001326/20000132669.png
Descriptions
CS 7000 FL, flush (Installation drawing)
*7+0,5 = CS7611 (Wok)
Downloads
https://media.miele.com/images/2000013/200001326/20000132666.png
Descriptions
CS 7000 FL (Installation drawing)
Installation drawings
Downloads
https://media.miele.com/images/2000013/200001320/20000132012.png
Descriptions
CS7612-1FL, CS7612FL, (installation drawing)
1) Front, 2) Mains connection cable, L = 2000 mm
Downloads
https://media.miele.com/images/2000013/200001320/20000132009.png
Descriptions
CS7612-1FL, CS7612FL, flush (installation drawing)
1) Front, 2) Mains connection cable, L = 2000 mm, 3) Stepped cut-out, 4) Wooden Frame 12 mm (supplied loose),
Downloads
https://media.miele.com/images/2000013/200001355/20000135550.png
Descriptions
CS 7000 FL, flush (Installation drawing)
*7+0,5 = CS7611 (Wok)
Downloads
