Cooker hoods - DA 2698 Brilliant white - 1
Cooker hoods - DA 2698 Brilliant white - 1
Extractor unit

DA 2698 Brilliant white

with energy-efficient LED lighting and light-touch switches for easy use.
Product data sheet
Colour:Brilliant white
Brilliant white
Stainless steel
sale price€2,399.99
A contribution to recycling costs (PRF) of 5 EUR for large domestic appliances and 10 EUR for American Side by Side refrigeration is Included in the retail price. No fees apply to Vacuum Cleaners, Accessories, Hobs, Microwaves, Hoods or Coffee Machines.


Additional services

You can select the following services for this product in your basket:

  • Built-In Installation (€70.00)
  • WEEE Collection (€0.00)

Product details

  • Customised kitchen design - fully integrated in 880 mm width
  • Unique user convenience –Con@ctivity
  • Powerful - 640 m3/h on the booster setting
  • Energy-efficient and quiet - powerfulECO motor
  • Elegant and efficient - edge extraction panels

Product data sheet

Integrated extractor
Type of air guideCan be retrofitted
Active charcoal filter (order separately)DKF 19-P
ColourBrilliant white
Edge extraction
Miele@home
Automatic function Con@ctivity
Electronic controls
ControlsLight-touch switches with LEDs
Miele@mobile app
Power levels (number without Booster level)3
Booster levels1
Programmable Booster level switch-off
Run-on time 5/15 min.
Grease filter saturation indicator
Grease filter saturation indicator
Active charcoal filter saturation indicator
Easy-to-clean canopy interior – CleanCover

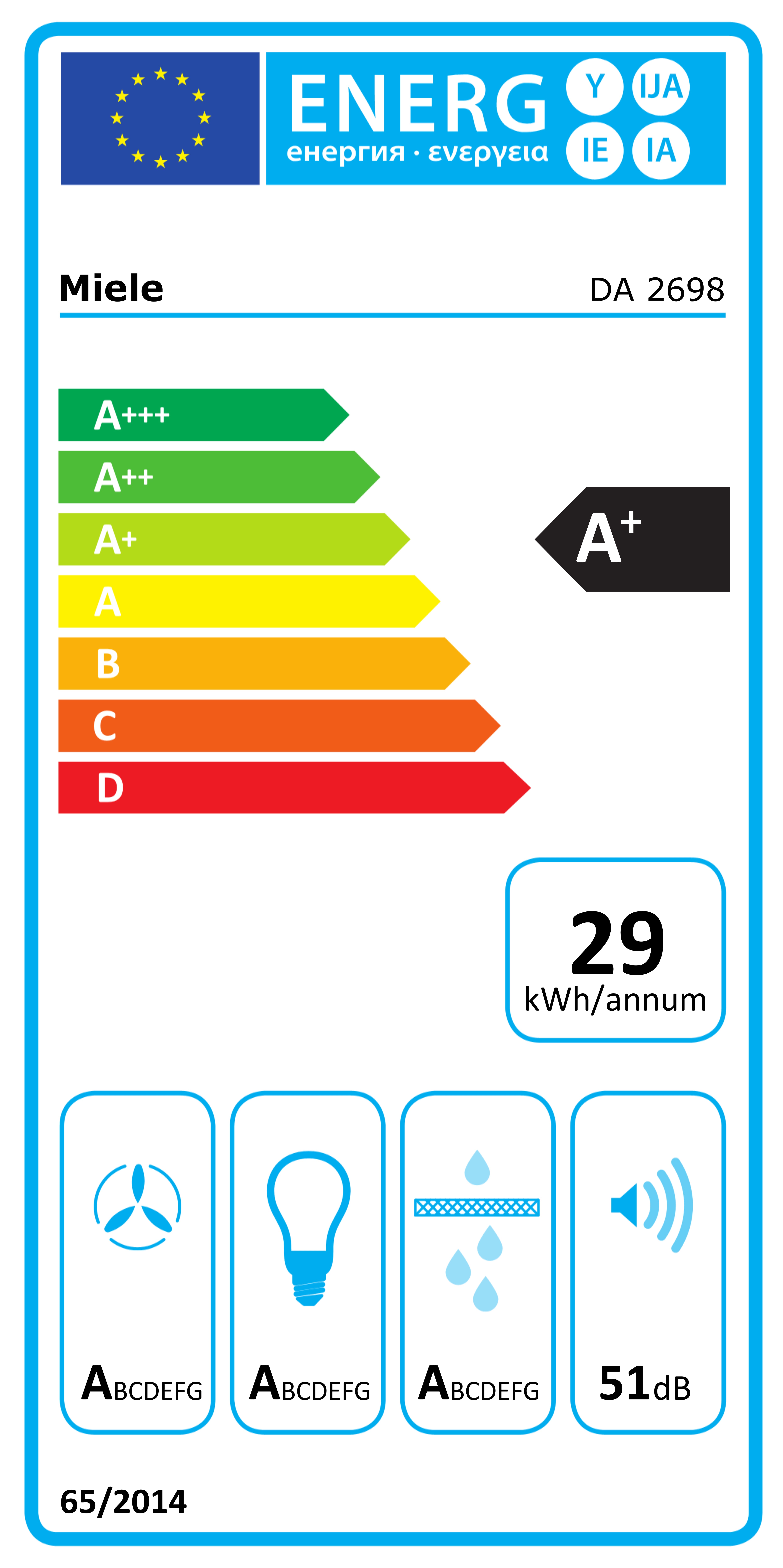

Energy efficiency class (A+++ to D)A+
Annual energy consumption in kWh/year28.6
Fluid dynamic efficiency classA
Lighting efficiency classA
Grease filtering efficiency classA
PowerManagement system
Easy-to-clean canopy interior – CleanCover
Number of dishwasher-safe stainless steel grease filters (10-ply)2
LED
Number x W4 x 3 W
Light intensity in Lx650 lx
Colour temperature in K3500 Kelvin
Dimmer function
Dual-action blower
DC motor
Air throughput in Level 1 (m³/h) according to EN 61591200
Air throughput in Level 2 (m³/h) according to EN 61591300
Air throughput in Level 3 (m³/h) according to EN 61591400
Air throughput in booster level 1 (m³/h)640
Sound power in Level 1 (dB(A) re 1 pW) according to EN 60704-336
Sound power in Level 2 (dB(A) re 1 pW) according to EN 60704-344
Sound power in Level 3 (dB(A) re 1 pW) according to EN 60704-351
Sound power in Booster level 1 (dB(A) re 1 pW) acc. to EN 60704-362
Sound pressure in Level 1 (dB(A) re 20 µPa) according to EN 60704-2-1322
Sound pressure in Level 2 (dB(A) re 20 µPa) according to EN 60704-2-1330
Sound pressure in Level 3 (dB(A) re 20 µPa) according to EN 60704-2-1337
Sound pressure in Booster level 1 (dB(A) re 20 µPa) acc. to EN 60704-2-1348
Air throughput in Level 1 (m³/h) according to EN 61591135
Air throughput in Level 2 (m³/h) according to EN 61591220
Air throughput in Level 3 (m³/h) according to EN 61591365
Air throughput in Booster level 1 (m³/h) according to EN 61591535
Sound power in Level 1 (dB(A) re 1 pW) according to EN 60704-347
Sound power in Level 2 (dB(A) re 1 pW) according to EN 60704-355
Sound power in Level 3 (dB(A) re 1 pW) according to EN 60704-362
Sound power in Booster level 1 (dB(A) re 1 pW) acc. to EN 60704-374
Sound pressure in Level 1 (dB(A) re 20 µPa) according to EN 60704-2-1332
Sound pressure in Level 2 (dB(A) re 20 µPa) according to EN 60704-2-1341
Sound pressure in Level 3 (dB(A) re 20 µPa) according to EN 60704-2-1348
Sound pressure in Booster level 1 (dB(A) re 20 µPa) acc. to EN 60704-2-1359
Safety shut-off
Single-ply safety glass (ESG)
Canopy width in in. (mm)880
Canopy height in in. (mm)63
Depth of hood canopy in in. (mm)293
Minimum height above electric hobs in mm450
Minimum safety distance above gas hobs (max. 12.6 kW total power, burner ≤ 4.5 kW) in mm650
Net weight in kg14
Length of supply lead in m1.5
Standard plug fitted
Total rated load in kW0.092
Voltage in V230
Fuse rating in A10
Frequency in Hz50
Number of phases1
Extraction ducting connection at top
Extraction connection at top and rear
Diameter of extraction ducting connection in mm150
Combination with WiFi-enabled Miele hobrecommended
Non-return flap
EAN4002515978788

What's included

Non-return flap
Easy to use and effective against grease
Stainless steel grease filters (10-layer)

Looks great and does a good job: effective grease filtering and easy cleaning in a dishwasher.

Convenience and safety in detail
Miele CleanCover

Protection and easy cleaning: the smooth concealed surface prevents contact with electrical components and motor.

The heart of every cooker hood
ECO motor

Powerful and economical: the DC motor saves up to 50 % electricity compared with conventional motors.

Automatic operation for intelligent fan control
Con@ctivity

Innovative convenience: the cooker hood reacts automatically to settings on the hob.

Safety

Always on the safe side
Safety switch-off

Sensible, even in case of operating errors: the cooker hood switches off automatically after 10 hours.

Efficiency and sustainability

The heart of every cooker hood
ECO motor

Powerful and economical: the DC motor saves up to 50 % electricity compared with conventional motors.

Features

Easy to use and effective against grease
Stainless steel grease filters (10-layer)

Looks great and does a good job: effective grease filtering and easy cleaning in a dishwasher.

Convenience and safety in detail
Miele CleanCover

Protection and easy cleaning: the smooth concealed surface prevents contact with electrical components and motor.

Decorative panels instead of metal grease filters
Edge extraction

Efficient and beautiful: With edge extraction grease filters are concealed by a stainless steel or glass panel.

User convenience

Automatic fan run-on
Run-on function

Odour-free room air: after cooking, the fan can be set to switch off automatically after a 5 or 15 minute run-on period.

Countdown time conveniently in view
Filter indicator

Easy filter replacement: a red light lets you know when the grease and/or active charcoal filter is saturated.

Automatic operation for intelligent fan control
Con@ctivity

Innovative convenience: the cooker hood reacts automatically to settings on the hob.

Matching products and accessories

Multi-purpose microfibre cloth, qty 1
GP MI X 0011 W

Multi-purpose microfibre cloth, qty 1

For best cleaning results and safe use.

€9.99
MicroCloth kit, 3 pieces
GP MI S 0031 W

MicroCloth kit, 3 pieces

For best cleaning results and safe use.

€14.99
Silencer

Silencer

reduces airflow and motor noises.

€105.00
SteelCare stainless steel care product, 250 ml
GP CA ST 0252 L

SteelCare stainless steel care product, 250 ml

For a smooth, matt, clean stainless steel surface.

€15.99
Odour filter with active charcoal

Odour filter with active charcoal

for Miele DA 23x0/266x/269x/35xx/36xx cooker hoods.

€79.99
Recirculation conversion kit for DA 3xxx/2xxx and DAS 2xxx, 4xxx and 8xxx

Recirculation conversion kit for DA 3xxx/2xxx and DAS 2xxx, 4xxx and 8xxx

to convert slimline/integrated cooker hoods from extraction to recirculation.

€136.99
Wall box

Wall box

for extraction.

€284.99
Odour filter with active charcoal
DKF 19-P

Odour filter with active charcoal

for Miele DA 23x0/266x/269x/35xx/36xx cooker hoods.

€92.99
 MicroCloth HyClean, 1 cloth

 MicroCloth HyClean, 1 cloth

 Antibacterial multi-purpose cloth for improved hygiene.

€7.99
Roof vent
DDF 125

Roof vent

for extraction.

€399.99
