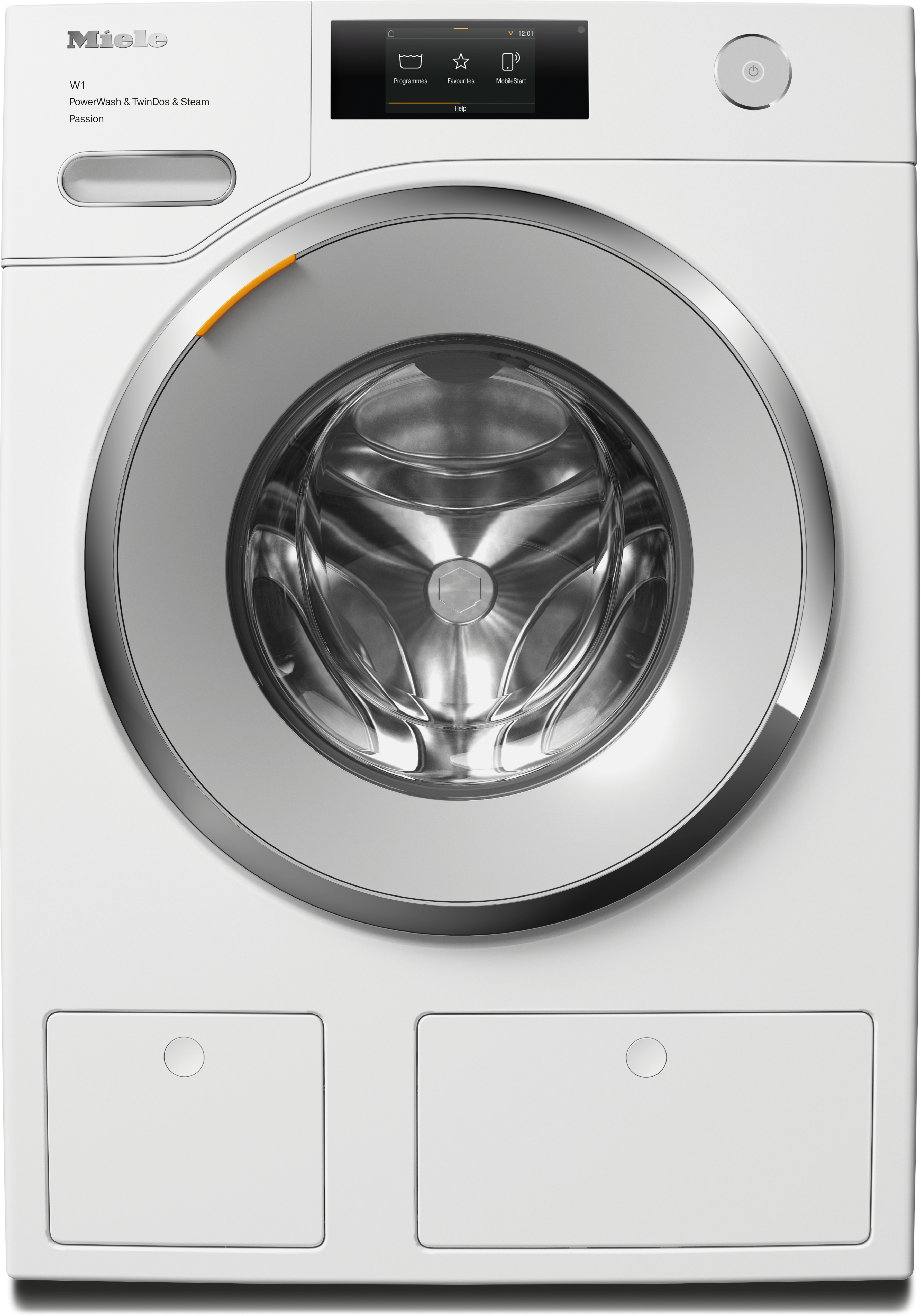

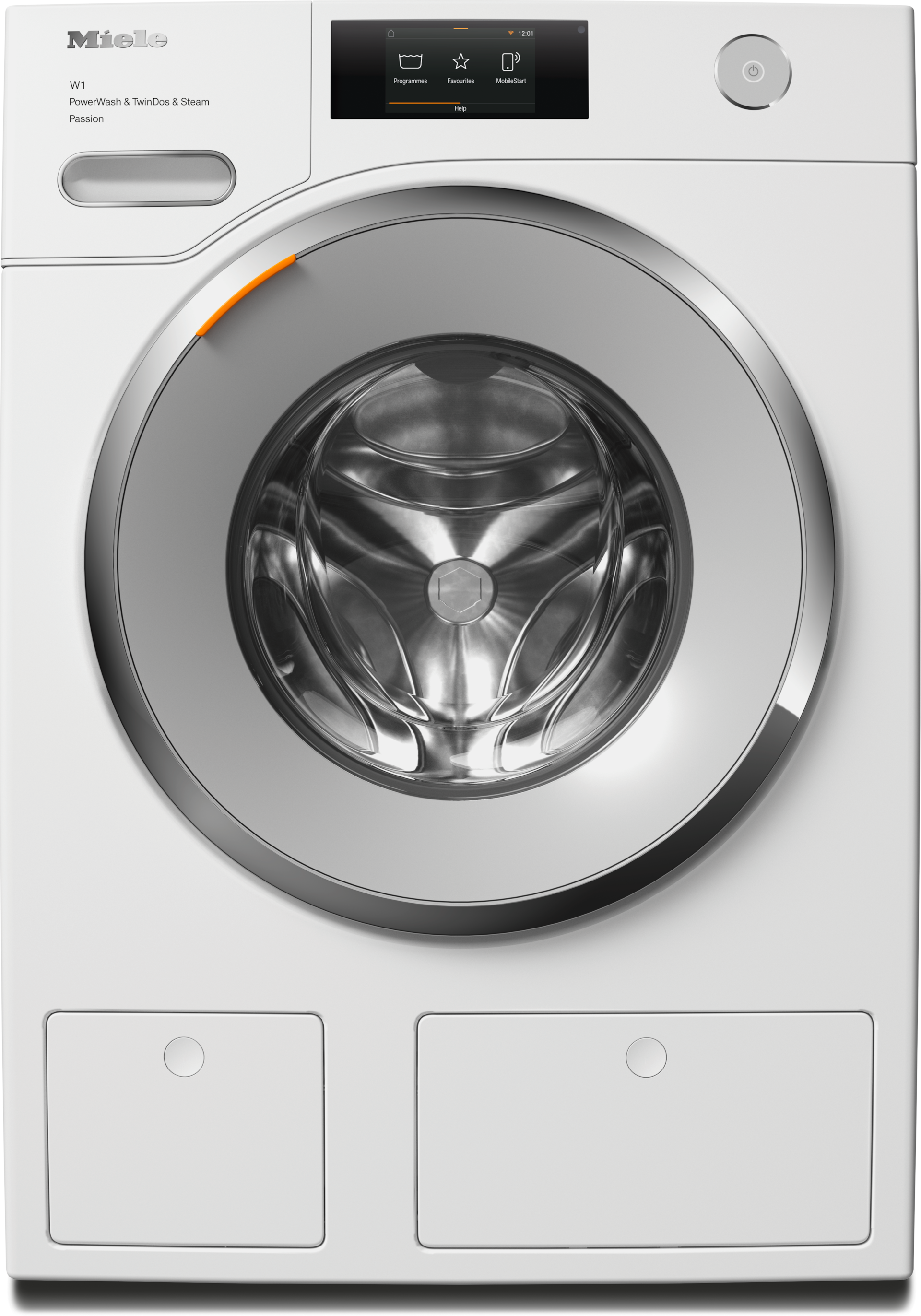

W1 front-loader washing machine:

WWV980 WPS Passion Lotus white

the economical all-rounder that meets the highest expectations.


sale price€3,099.99
A contribution to recycling costs (PRF) of 5 EUR for large domestic appliances and 10 EUR for American Side by Side refrigeration is Included in the retail price. No fees apply to Vacuum Cleaners, Accessories, Hobs, Microwaves, Hoods or Coffee Machines.
Retail price includes 23% VAT.



Additional services

You can select the following services for this product in your basket:

  • Freestanding Installation (€50.00)
  • WEEE Collection (€0.00)

Product details

  • Tested for20 yearsof perfect laundry care17,
  • Save energy in the best energy efficiency class (A)
  • M Touch– the appliance is controlled by tapping or swiping
  • 50% less ironing plus maximum variety of applications –SteamCare
  • Save electricity with an additionalhot water connection

Product data sheet

Suitable for stacking
Side-by-side
Slot-in
Door hingeright
Product brandW1 White Edition
Front-loader
Max. spin speed1600
Rinse hold
Without spin function
Appliance colourLotus white
Control panel colourLotus white
Door designAlu silver with chrome ring
Control panel version5° inclined
Control typeTouch control
DisplayMTouch
Innovative PowerWash technology
TwinDos automatic detergent dispensing
CapDosing portioned dispensing
Stains option
Certified virus hygiene
Honeycomb drum
Load in kg9
Networking with Miele@home
SteamCare steam system
Delay start up to 24 hours
Time left display
Time of day display
Programme sequence indicator
Washing assistant
Information text
Favourite programmes
Drum lightingLED
MultiLingua
AutoClean detergent drawer
Load indicator and dispensing recommendation
AddLoad

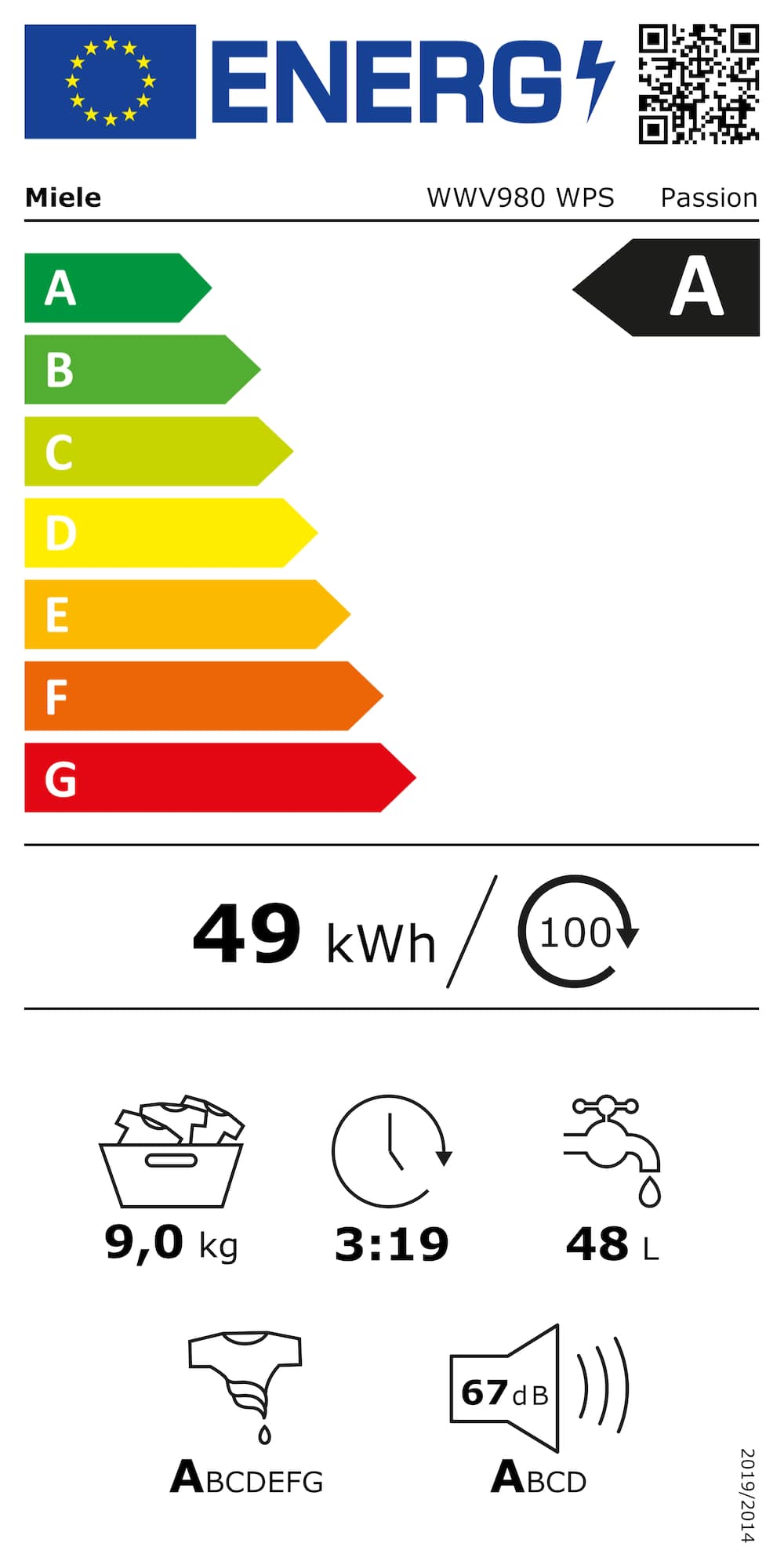

Energy efficiency class (A–G)A
Weighted energy consumption per 100 operating cycles for the wash cycle in kWh49
Weighted water consumption per cycle in l48
Spin efficiency classA
Acoustic airborne noise emission class (spin cycle)A
Sound emissions during spin cycle in dB(A) re 1 pW67
Duration of the “ECO 40–60” programme at nominal capacity199
Power rating in off mode in W0.30
Power rating in networked standby in W0.70
Hot water connection
EcoFeedback
Low temperature wash "Cold" and "20 °C"
Automatic load control
Flow meter
Foam sensing
ProfiEco motor
QuickPowerWash
Automatic plus
Cottons (coloureds)
Minimum iron
Delicates
Shirts
Silk (hand-washable)
Woollens (hand-washable)
Express 20
Dark garments
Denim
Outerwear
Proofing
Sportswear
Trainers
Down duvets
Pillows
Down
Curtains
Cottons hygiene
Freshen up (steam)
Steam care
Clean machine
Cottons arrow
First wash
Separate rinse
Starch
Drain / Spin
ECO 40-60
SingleWash
Short
Soak
Pre-wash
Water plus
Additional rinse cycle
Extra quiet
Pre-ironing with steam
Buzzer
AllergoWash
Water protection systemWaterproof-System
Safety lock
PIN-Code
Optical interface
Dimensions in mm (width)596
Dimensions (H x W x D) in mm850 x 596 x 643
Dimensions in mm (height)850
Dimensions in mm (depth)643
Appliance depth in mm with opened door1077
Weight in kg98
Total rated load in kW2.10-2.40
Voltage in V220.00-240.00
Fuse rating in A13
Frequency in Hz50
Length of supply lead in m2
Replacing lampsService
3 Caps
UltraPhase 1 + 2
Voucher for 5 Miele UltraPhase cartridges
Available display languages via MultiLinguaenglish (CA)
EAN4002516072720

What's included

3 Caps
UltraPhase 1 + 2
Voucher for 5 Miele UltraPhase cartridges

Safety

Additional safety
Waterproof system (WPS)

Double safety: in the event of a leak, a second solenoid valve stops the flow of water directly at the stopcock.


Guaranteed water protection!4,
Water protection guarantee4,

Peace of mind: Miele will bear the cost for prop. damage resulting fr. a defective water prot. system - 20 years.


Efficiency and sustainability

Tailored to your load
Automatic load recognition

Use precisely the water and energy needed for your laundry with automatic load recognition.


Save up to 65 % energy costs5,
Hot water connection

Features a secondary water connection to put rain, well or solar heated water to good use.


Economical, powerful and maintenance-free
ProfiEco motor6,

Our efficient motors with inverter drive feature technology that ensures minimal wear, noise, and energy usage.


Lead by example
Energy efficiency

Best-in-class energy and water efficiency with outstanding washing results and short cycle times.


Monitor your consumption
EcoFeedback

Get precise estimates and reports of water & energy consumption for each programme.


Cleaning performance

Specialised stain removal option
Stains option

Get rid of stubborn stains – such as grass, mud, or wine – with a specialised pre-wash and extended cycle.


Best liquid detergent system with push of a button
TwinDos®automatic detergent dispensing10,

Precise dispensing of the Miele UltraPhase 1 and 2 detergent results in detergent savings of up to 30 %9, .


Economically wash single items
SingleWash

SingleWash washes small loads efficiently, saving 62 % energy, 81 % water and 67 % time.11,


Always the right detergent for every application
CapDosing portioned dispensing12,

Our portioned caps are available with a range of specialised detergents tailored to match your wash programmes.


Revolutionary economy with every load
Innovative PowerWash technology

Clean, quick and especially energy-efficient for small loads.


Economy without compromising on performance
QuickPowerWash

Very good cleaning performance in just 49 minutes13, .


Working in perfect harmony for more sustainability.
Efficient combination of TwinDos®and SingleWash

Very efficient: TwinDos®and SingleWash save up to 40 % of detergent* and up to 60 % in energy and time**14, .


Effective against viruses – scientifically proven
Gold standard for virus hygiene

Thorough cleaning, eliminating 99.9 %15, of potential viruses from your laundry.


Don’t give bacteria a chance
Proven hygiene

Proven by Rhine-Waal University of Applied Sciences: with AllergoWash, up to 99.99 % of bacteria are removed.


Quality

Tested for 20 years of perfect laundry care17,
Tested for the equivalent of 20 years’ use.17,

Some car engines are subjected to 3000 hours of tests, but we test continuous performance for up to 10,000 hours.17,


Washing programs

Wash and dry two types of textiles
Automatic plus

For mixed loads: cottons and polycottons can be conveniently processed together.


Most gentle treatment of your favourite garments
Woollens

No shrinkage, no felting: Delicate wool fabrics are cared for particularly gently, maintaining their quality.


Very delicate handling of natural fibres
Silks

Excellent care: all hand-washable textiles which do not contain wool are washed extremely gently.


Special programme for home textiles
Curtains

Sparkling clean: a pre-wash to remove dust and dirt is carried out automatically before the intensive main wash.


Business as usual
Shirts

Prevents creasing: reduces creasing and simplifies the ironing of shirts and blouses significantly.


Special programme for functional clothing
Sportswear

The fitness programme: sportswear is ready to wear again in no time.


Special programme for high-tech materials
Outerwear

Best care without the loss of function: High-quality outdoor textiles retain their functionality in any weather.


Equip textiles with functions
Proofing

Best possible effect: Thermally fixing ensures optimum water-repellent properties.


Perfect cleanliness and full volume
Pillows

Pleasantly fresh: even large pillows with a synthetic filling look as good as new.


Clean and fresh
Down filled items/Down duvets

Full volume: down-filled textiles such as jackets or down duvets remain fluffy and keep their shape.


Optimum care of synthetic fibres
Delicates

Gentle & soft: with the special programme synthetic textiles stay beautiful & keep their shape.


Trainers

For champions: with this gentle special purpose programme, washable trainers are cleaned gently and effectively.


User convenience

Your Miele appliance "speaks" multiple languages
MultiLingua

All-rounder: you can choose the language for the display so that you fully understand every piece of information.


Add or remove single items
AddLoad function

Enjoy the flexibility to add or remove individual items during a washing cycle, without cancelling the programme.


Convenience you can see
Drum lighting

Enlightening: the perfectly lit honeycomb drum ensures items are not left behind when unloading the machine.


Smart networking
Domestic appliance networking with Miele@home18,

Connect your washing machine to your home network and control it conveniently and intuitively via the app.


Gentle laundry care

Keep your clothing safe while tumbling
Honeycomb drum

Our protective drum allows fabrics to safely glide along without snagging and damaging them.


Up to 50 % less ironing
Pre-ironing with steam19,

A specialised steaming feature that reduces wrinkles, saving you substantial effort and time ironing your clothes.


The extra-fresh, quick alternative to ironing
SteamCare steam system

The special steam cycle reduces wrinkles, removes odours and quickly refreshes clothing.
