Oven

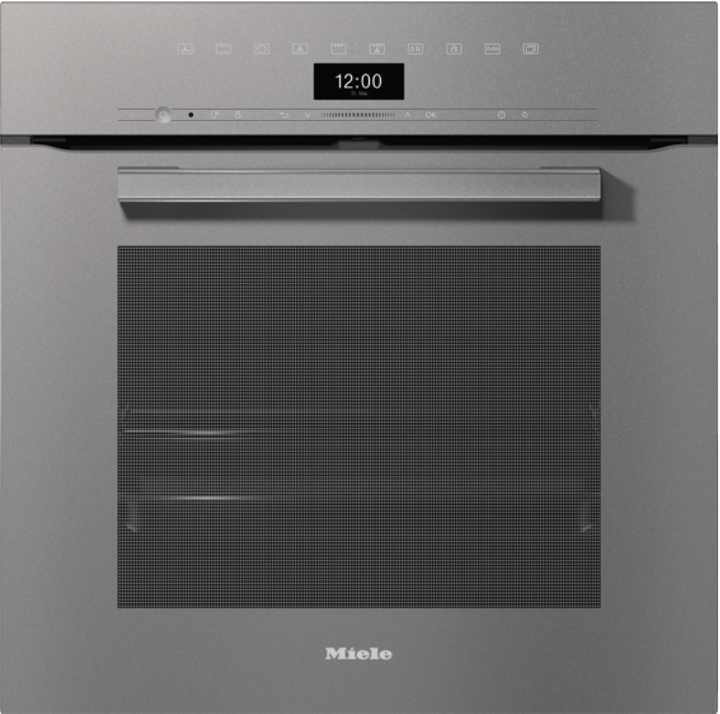

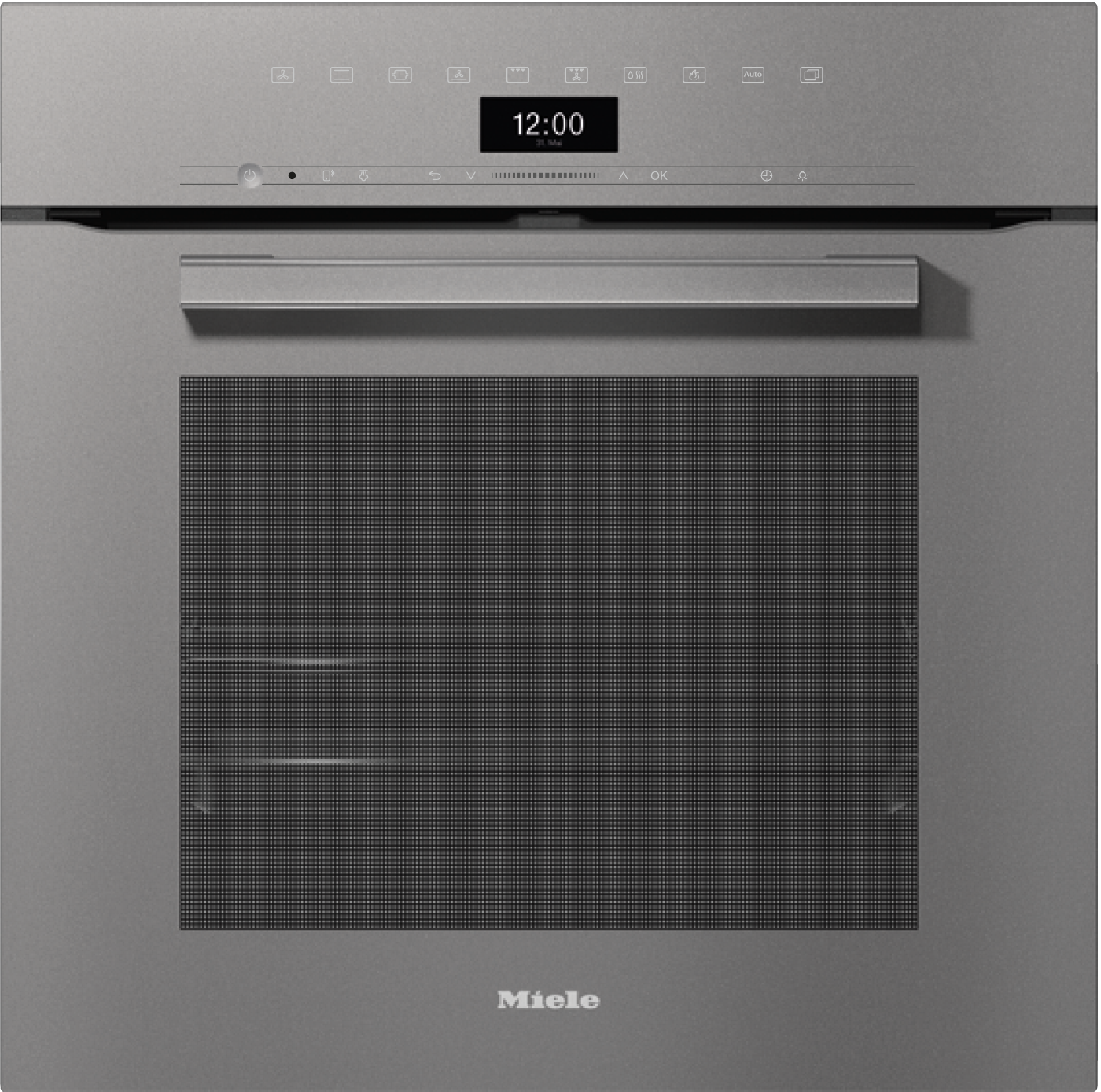

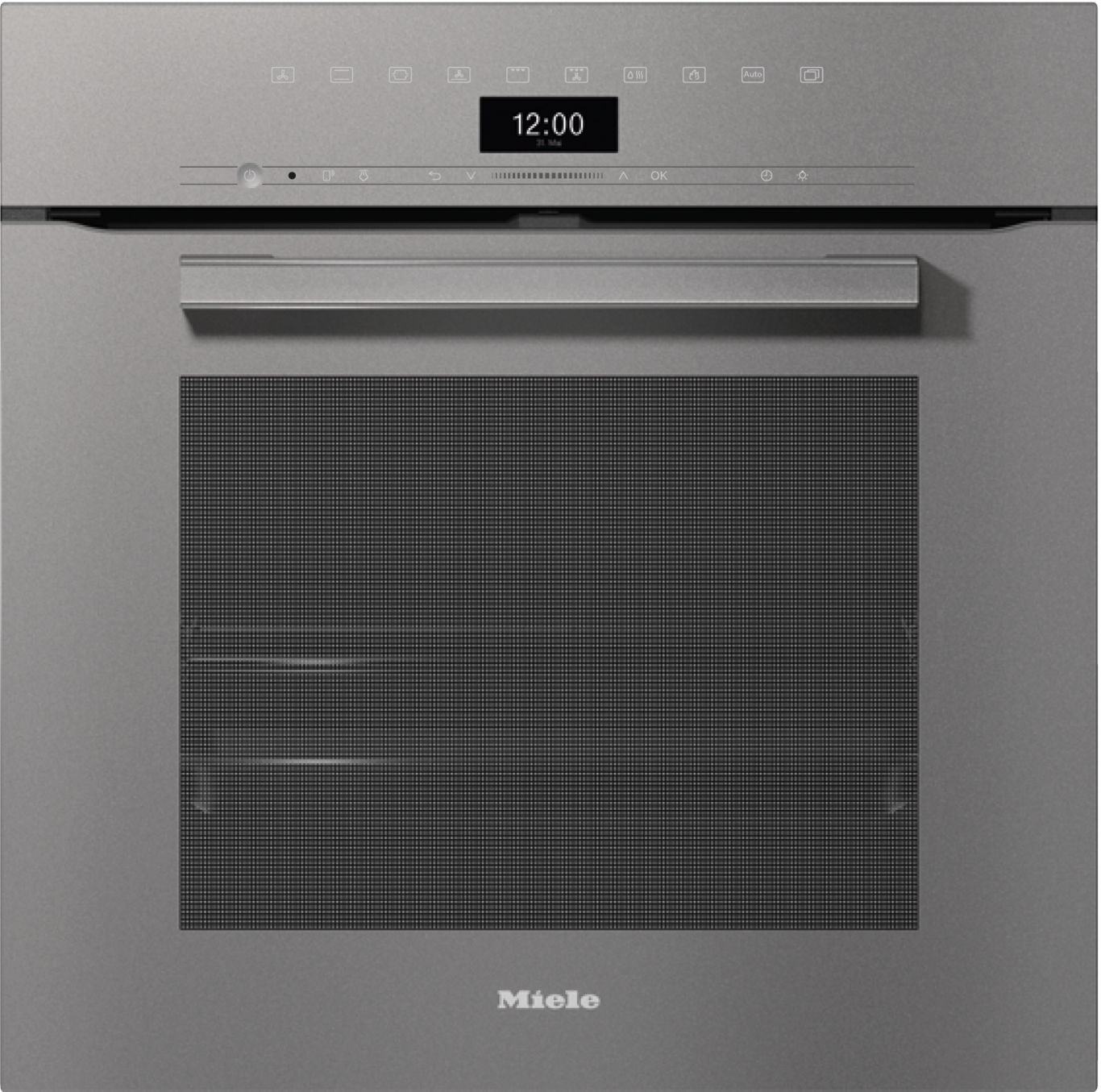

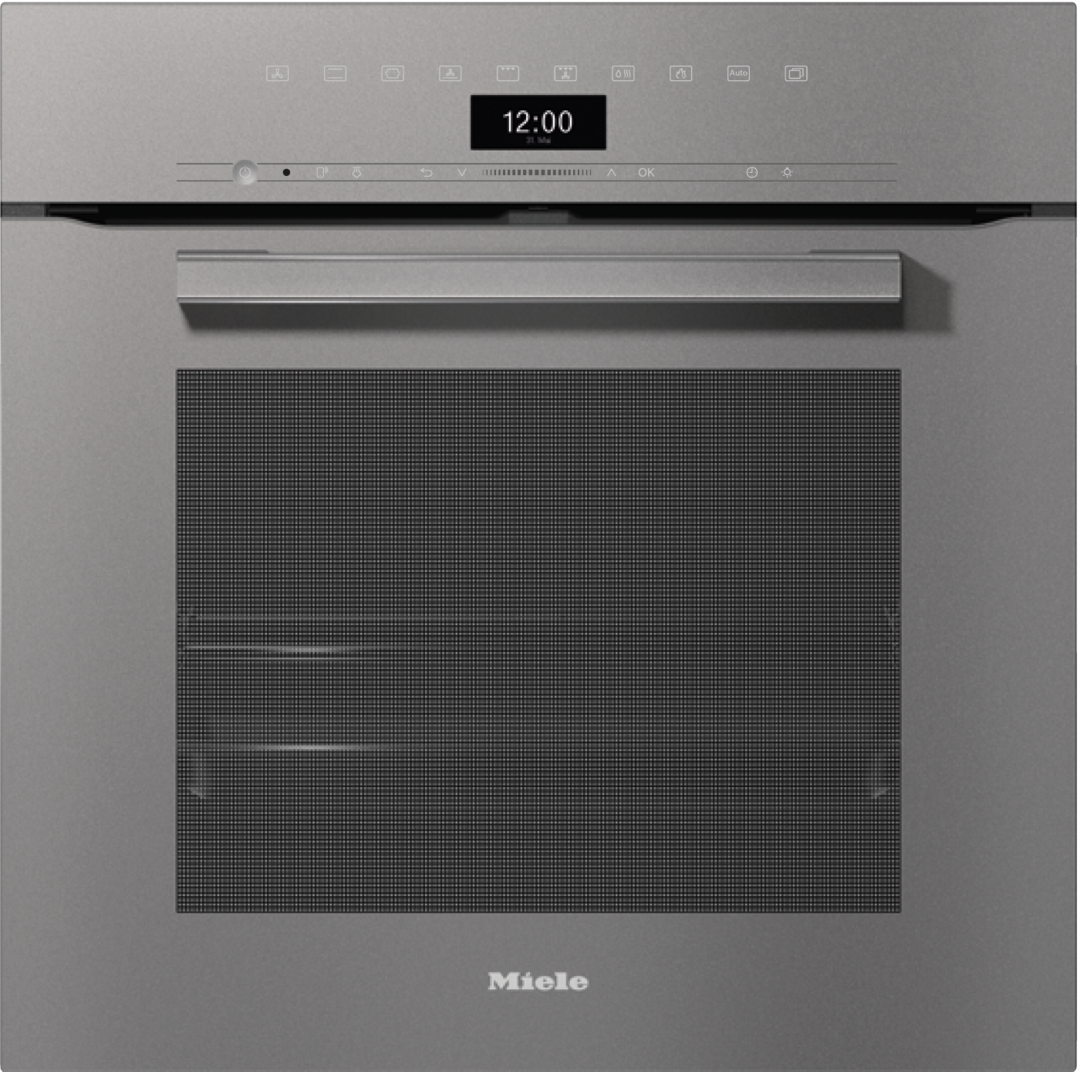

H 7464 BP Graphite grey

seamless design with food probe and LED lighting.


Colour:Graphite grey
Graphite grey
Obsidian black
Stainless steel/Clean Steel

sale price€2,849.99
A contribution to recycling costs (PRF) of 5 EUR for large domestic appliances and 10 EUR for American Side by Side refrigeration is Included in the retail price. No fees apply to Vacuum Cleaners, Accessories, Hobs, Microwaves, Hoods or Coffee Machines.
Retail price includes 23% VAT.



Product details

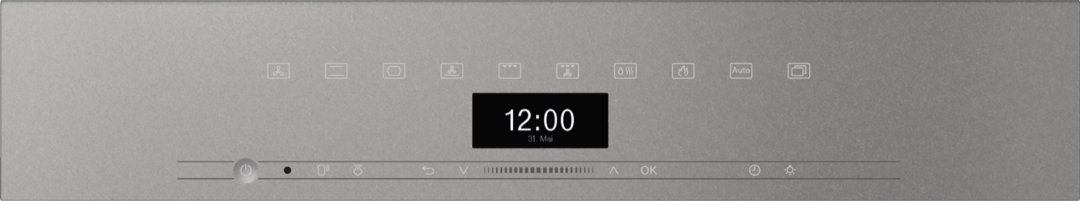

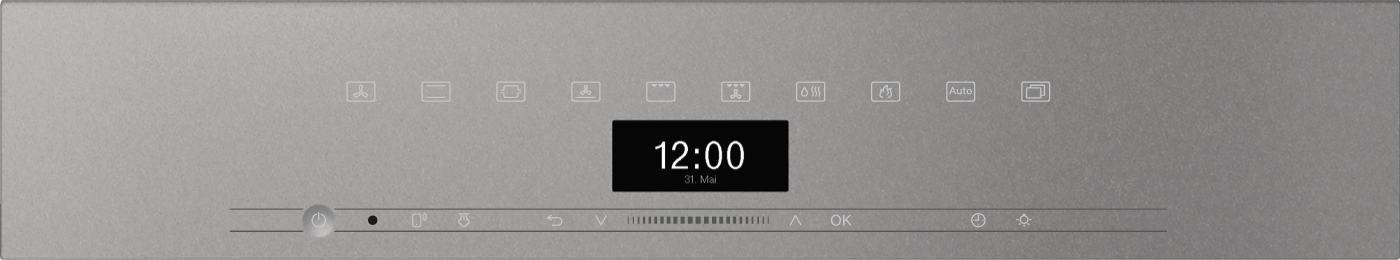

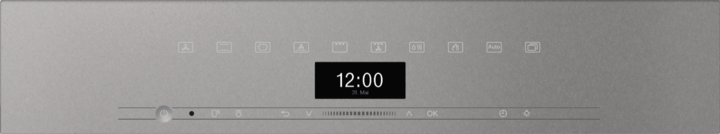

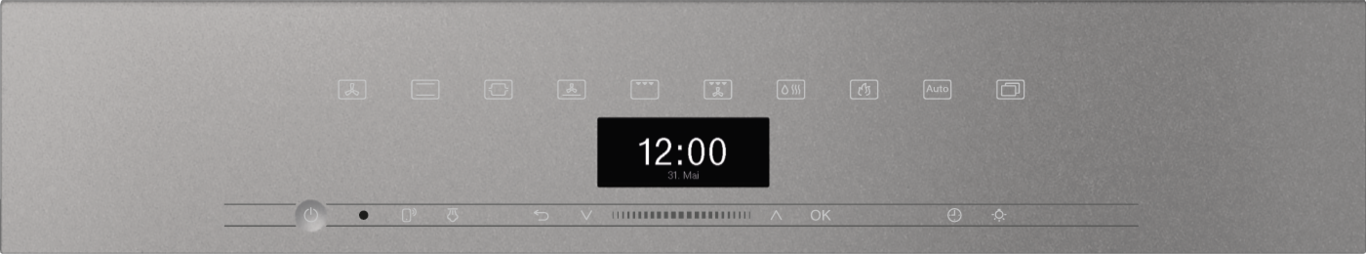

  • Large clear text display with sensor controls –DirectSensor
  • Minimal cleaning effort –Pyrolytic cleaning equipment& PyroFit
  • Especially light dough and nicely browned crusts –Moisture plus
  • Ensures your food won’t overcook –TasteControl
  • Network-enabled WiFi appliance –Miele@home

Product data sheet

Built-in oven
VitroLine
Appliance ColourGraphite grey
TasteControl
Rapid heat-up
Pre-heating
Food probeWith cable
Keeping warm
Crisp function
Fan plus
Conventional heat
Moisture plus
Moisture plus with Auto roast
Moisture plus with Fan plus
Moisture plus with Intensive bake
Moisture plus with Conventional heat
Intensive bake
Auto roast
Fan grill
Grill
Grill operating modes
Bottom heat
Eco hot air
Defrosting
Automatic programmes
Country-specific automatic programmes
Networking with Miele@home
DisplayDirectSensor
SoftOpen
SoftClose
MultiLingua
Programmable timed steam injection
Timer functions
Time of day display
Clock synchronisation
Date display
Minute minder
Programmable start of cooking duration
Programmable end of cooking duration
Programmable cooking duration
Actual temperature display
Target temperature display
Buzzer when desired temperature is reached
Recommended temperature
User programmes
Individual settings
Energy efficiency class (A+++ - D)A+
Automatic residual heat utilisation
Power rating in off mode in W0.5
Pyrolytic self-cleaning
Hinged grill element
CleanGlass door
Steam generator power in kW1.100
Fresh water container volume in l0.3
Suction tube for drawing in water
Appliance cooling system and touch-cool front
Safety switch-off
System lock
Door lock during pyrolytic cleaning
Sensor lock
Oven compartment volume in l76
No. of shelf levels5
Numbered shelf levels
Oven light1 LED spot
Temperatures in °C30–300
Niche dimensions (W x H x D) in mm560-568 x 590-595 x 550
Niche width min. in mm560
Niche width max. in mm568
Niche height min. in mm590
Niche height max. in mm595
Niche depth in mm550
Appliance dimensions (W x H x D) in mm595 x 596 x 568
Weight in kg47
Total rated load in kW3.600
Voltage in V220-240
Frequency in Hz50
Fuse rating in A16
Number of phases1
Length of supply lead in m1.50
Replacing lampsService
Baking tray with PerfectClean HBB 711
Universal tray with PerfectClean HUBB 711
Baking and roasting rack PyroFit1
PyroFit FlexiClip runners1
Wired food probe1
Removable PyroFit side runners (pair)1
Grilling and roasting insert with PerfectClean1
Descaling tablets2
Available display languages via MultiLinguaslovenščina
EAN4002516158134

What's included

Baking tray with PerfectClean HBB 71 (1)
Universal tray with PerfectClean HUBB 71 (1)
Baking and roasting rack PyroFit (1)
PyroFit FlexiClip runners (1)
Removable PyroFit side runners (pair) (1)
Grilling and roasting insert with PerfectClean (1)
Descaling tablets (2)
Wired food probe (1)

Safety

The only thing that gets hot is the food
Touch-cool front

Protection against burns: the appliance remains relatively cool – even on the outside of the door.


Maximum safety in any situation
Safety functions

Safety guaranteed: safety lock and safety switch-off provide reliable protection.


Efficiency and sustainability

Exceptional energy efficiency
Energy efficiency

Good for the environment and your wallet: almost all of our appliances correspond to energy efficiency class A+.


Operating modes

Fan plus

Perfectly soft and light: ideal for gentle baking and roasting on up to two levels.


Defrosting

Gentle on frozen food: frozen food is gently defrosted under ideal conditions using cool air.


Auto roast

Meat remains tender and succulent: meat is seared at a high temperature, then roasted at a selected temperature.


Eco fan heat

Extremely energy-efficient: succulent roasts or incredible bakes are cooked to perfection.


Full grill

Versatile function: perfect for grilling larger quantities of steaks, sausages, kebabs and more.


Intensive bake

Crispy bases, delicious toppings: pizza, quiche or fresh fruit flans – crispy base, moist on top.


Conventional heat

Multi-purpose, classic function: perfect results for all types of traditional baked and roasted dishes.


Bottom heat

Individual requirements: for cooking food in a bain-marie or for browning from underneath.


Fan grill

Crisp outside, succulent inside: ideal for chicken, duck, pork knuckle, rolled meat and many other meat dishes.


Moisture plus

As if fresh from the bakery: moisture ensures an incredibly light dough and a nicely browned crust.


Moisture plus with Auto roast

Perfect roasts: meat is seared at high temperature, then roasted at a customised temperature with added moisture.


Moisture plus with Fan plus

Perfectly soft and light: ideal for baking and roasting with added moisture on up to three levels.


Moisture plus with Intensive bake

Pizza, quiche or fresh fruit flans: added moisture makes bases crispy, while toppings stay moist.


Moisture plus with Conventional heat

Classic function: added moisture provides perfect results for all types of traditional baked and roasted dishes.


Booster

For those who lead a busy life: if there’s not much time for cooking, you will really appreciate this function.


Special features

Optimum results with additional moisture
Moisture plus

Better roasting and baking results: moisture ensures an incredibly light dough and nicely browned crusts.


Stress-free cooking with success guaranteed
Automatic programmes

Cooking delicious dishes with ease: cakes, fish or meat – fully automatic cooking.


Only carries on cooking if you want it to.
TasteControl

The automatic rapid cool-down prevents food from continuing to cook and can, if desired, keep the food warm.


Makes food crispy
Crisp function

Perfect for pizza or chips: moisture is reduced for crispy results and perfect browning.


User convenience

Cleverly networked
Domestic appliance networking with Miele@home3,

Make your life smart: thanks to Miele@home, you can cleverly network your domestic appliances – for more options.


Gentle door movement
SoftOpen and SoftClose

Refined and elegant: the door opens and closes with a gentle movement from beginning to end.


Leave time management to your oven
Timer functions

Always on time: programme the start time, finish time and duration of the cooking process or the minute minder.


Easy to understand
MultiLingua

The controls can be shown in numerous languages so users can operate the appliance in a language they understand.


Optimised access to your food
FlexiClip runners

Ergonomic and convenient: with fully telescopic runners, you can reach the food inside the oven easily and safely.


Maintenance

Effortless cleaning
Pyrolytic cleaning and PyroFit accessories

The oven compartment and (depending on the model) some accessories are automatically cleaned at high temperatures.


Downloads

Operating instructions/Installation instructions
PDF
Downloads
EU declaration of conformity
PDF
Downloads
Product sheet
PDF
Downloads
Warranty conditions
PDF
Downloads
dwg
ZIP
Downloads
rfa
ZIP
Downloads
ifc
ZIP
Downloads
rvt
ZIP
Downloads
fbx
ZIP
Downloads
Product fiche
PDF
Downloads
Energy label
PNG
Downloads
Energy label
PDF
Downloads
Energy label
Downloads

Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts. In the event of queries, please ring us for some no-obligation advice!

https://media.miele.com/images/2000015/200001537/20000153737.png
Descriptions
H7000 handle, glass, installation drawings
1) 400 mm, 2) 360 mm, 3) 47 mm, 4) 27 mm, 5) 32.5 mm
Downloads
https://media.miele.com/images/2000015/200001537/20000153722.png
Descriptions
Installation H7000 XL underframe, installation drawings
If the oven is to be installed under a hob, follow the instructions for installing the hob and the height of the hob.
Downloads
https://media.miele.com/images/2000015/200001537/20000153741.png
Descriptions

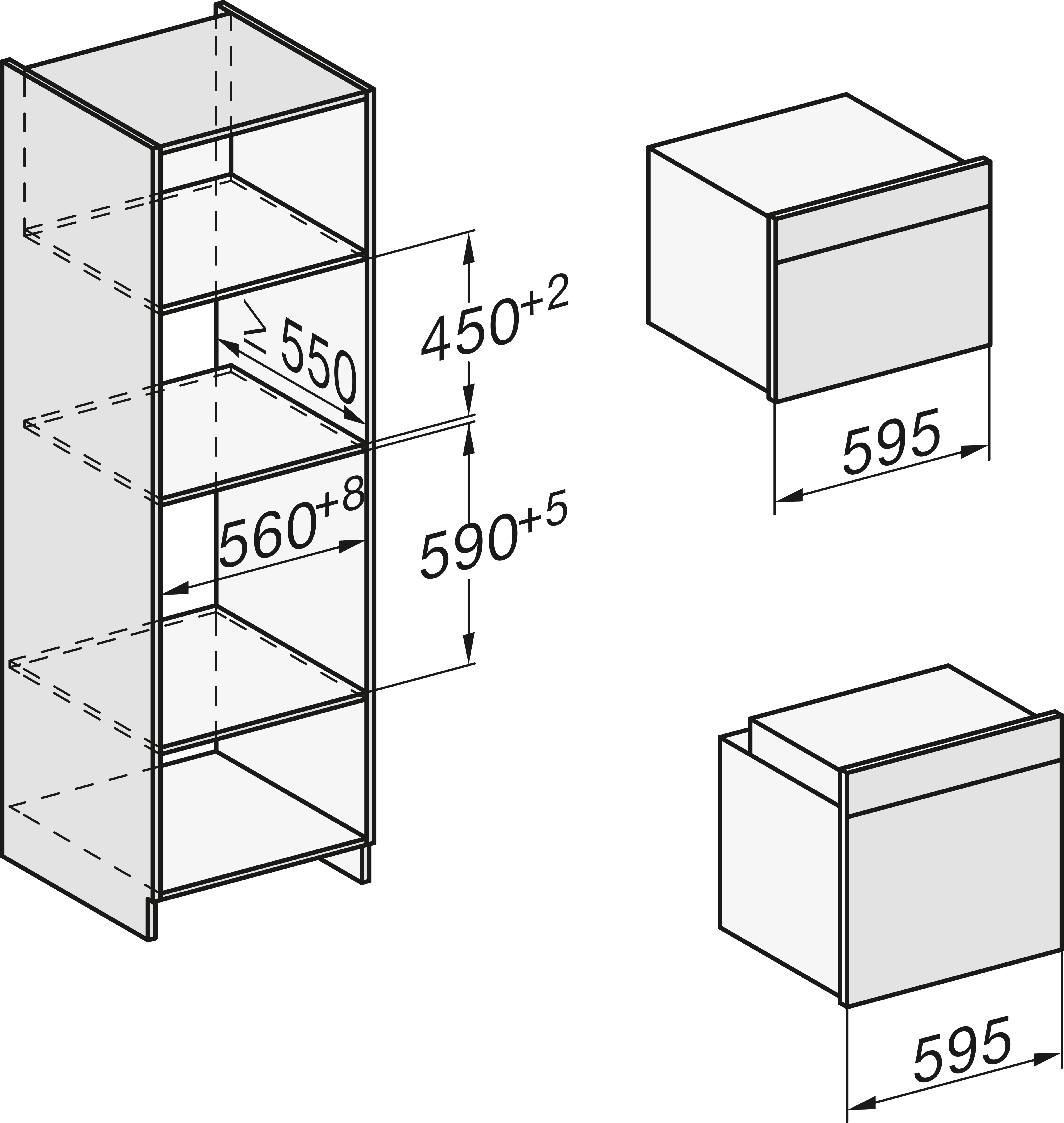

Installation H7000 BM XL, installation drawings
Installation drawings
Downloads
https://media.miele.com/images/2000015/200001537/20000153713.png
Descriptions
side view H7000 XL, installation drawings, GB, AU
22 mm - glass, 23.3 mm - metal
Downloads
https://media.miele.com/images/2000015/200001537/20000153718.png
Descriptions
built-in H7000 XL, installation drawing
Installation drawings
Downloads
https://media.miele.com/images/2000016/200001697/20000169786.png
Descriptions
side view H7000 XL build-under, installation drawing, GB, AU
22 mm - glass, 23.3 mm - metal
Downloads
https://media.miele.com/images/2000017/200001711/20000171103.png
Descriptions
Installation Kombi BM XL, installation drawings
22 mm - glass, 23,3 mm - metal
Downloads

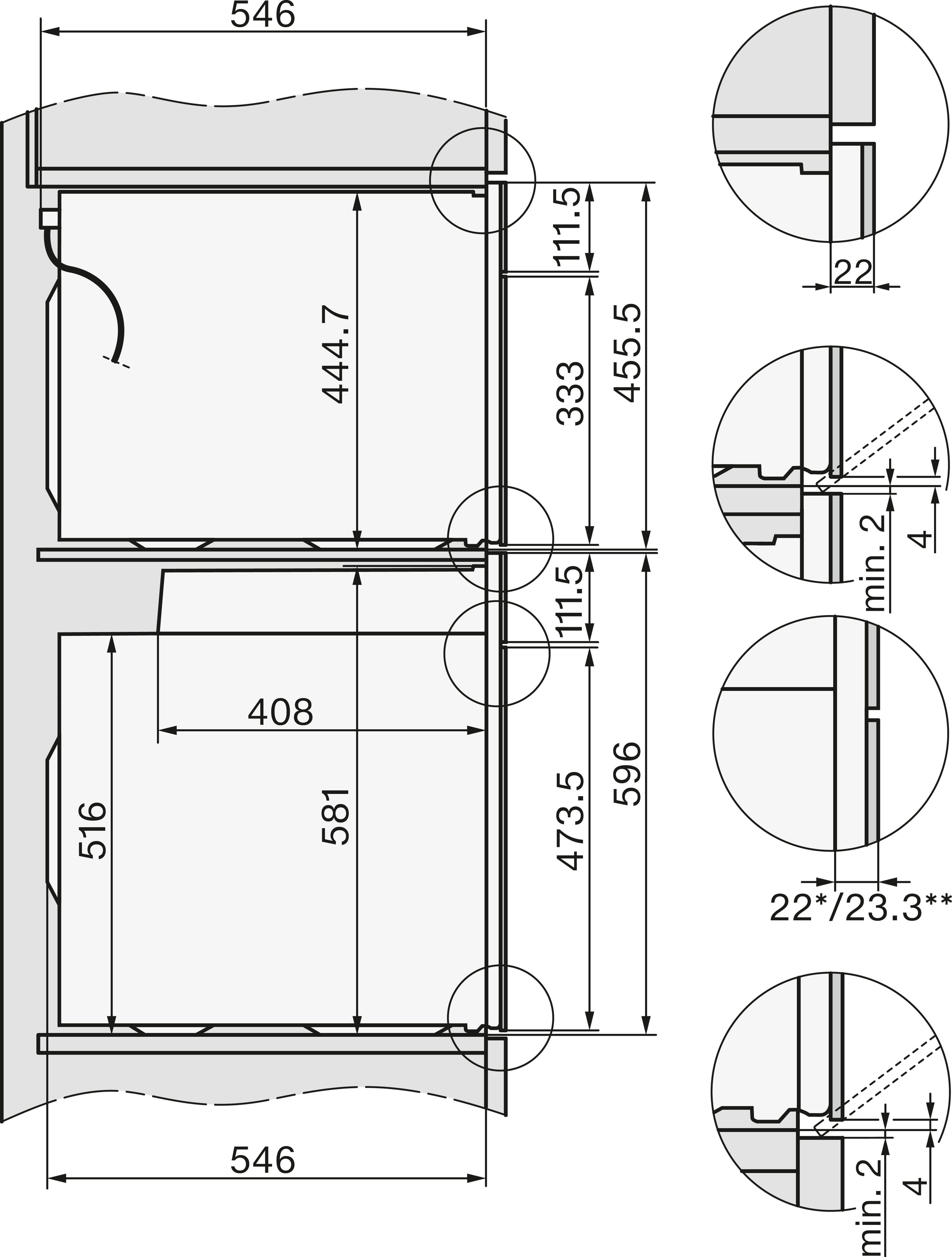

https://media.miele.com/images/2000017/200001710/20000171099.png
Descriptions
Side view Kombi BM XL, installation drawings
22 mm - glass, 23,3 mm - metal
