Induction hob with onset controls

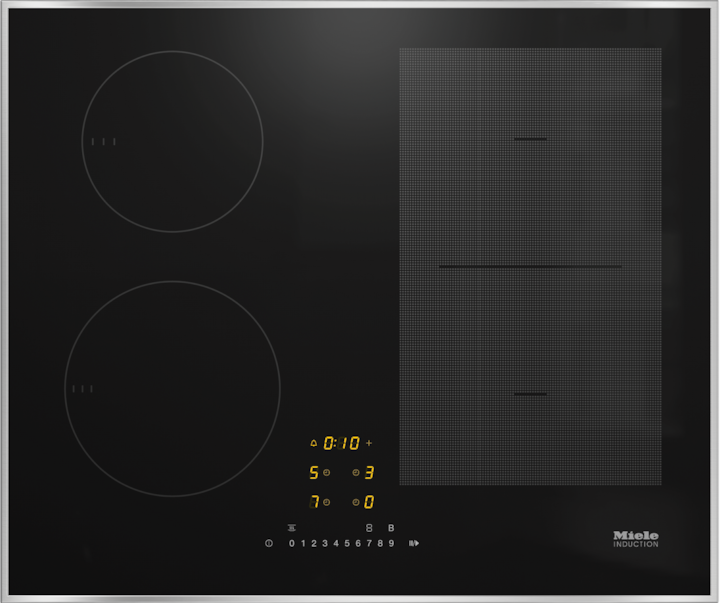

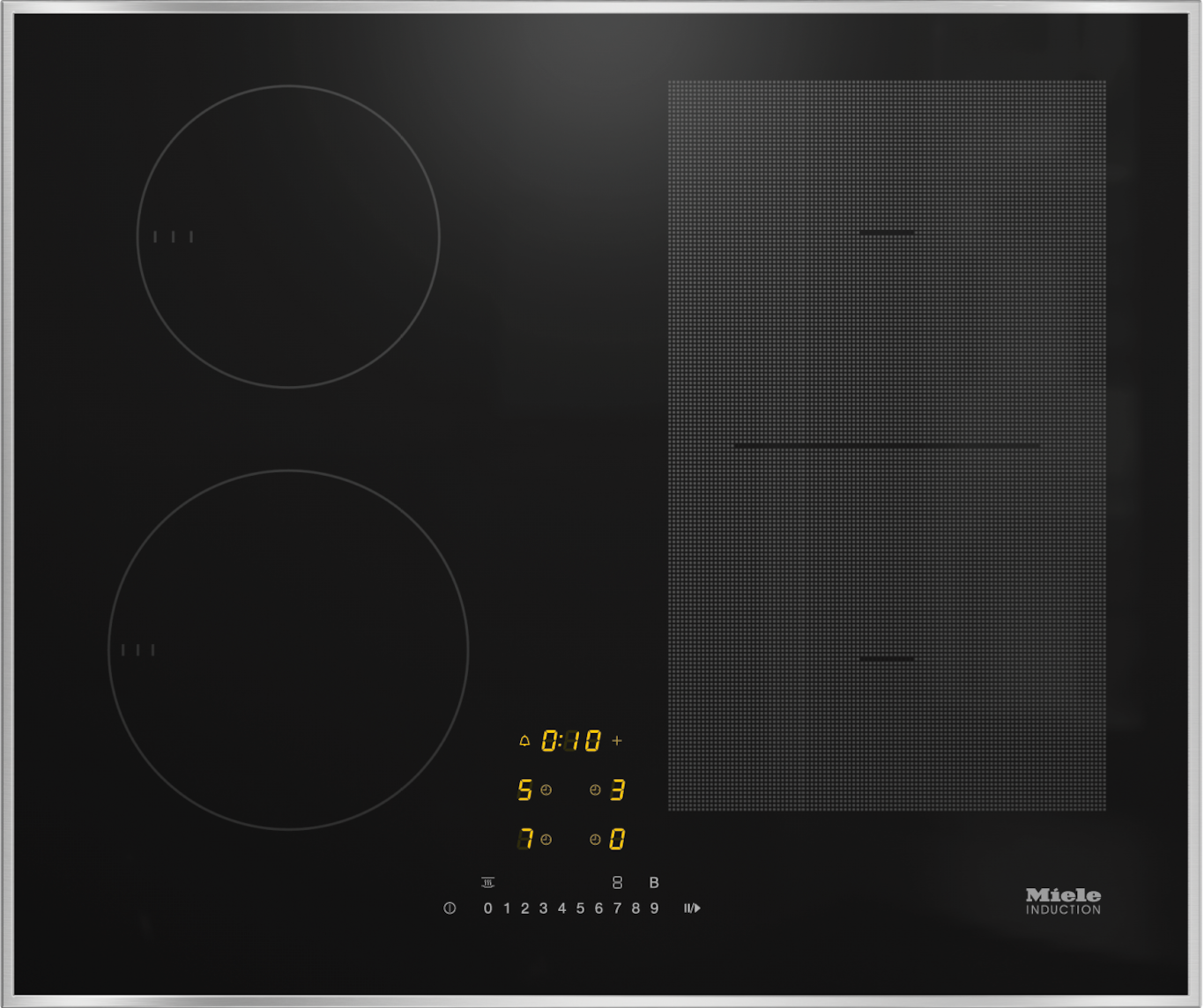

KM 7464 FR

Name: KM 7464 FR
Brand: Miele
SKU: 11144020
Price: 1299.99 EUR
Availability: OutOfStock

with PowerFlex cooking area for maximum power output

Product data sheet

€1,299.99

A contribution to recycling costs (PRF) of 5 EUR for large domestic appliances and 10 EUR for American Side by Side refrigeration is Included in the retail price. No fees apply to Vacuum Cleaners, Accessories, Hobs, Microwaves, Hoods or Coffee Machines.

Additional services

You can select the following services for this product in your basket:

Built-In Installation (€70.00)
WEEE Collection (€0.00)

Product details

Quick selection via numerical keybank – ComfortSelect
4 cooking zones incl. 1 high-powerPowerFlex cooking area
A width of 626 mm with stainless steel frame for surface installation
Shortest heating-up times - TwinBooster
Communication with the hood – automaticCon@ctivityfunction

Product data sheet

Heating typeInduction

Independent of cooker

Elegant glass ceramic surface

Ceramic surface colourBlack

Stainless-steel frame

Surface-mounted installation

Number of cooking zones4

Number of cooking areas1

Maximum number of pans4

No.2

TypePowerFlex cooking zone

Size in mmØ 150 – 230

Max. rating in W2100

Max. Booster power rating in W3000

Max. TwinBooster power rating in W3650

Positionfront left

TypeDual-circuit ring

Size in mmØ 140-190

Max. rating in W1850

Max. Booster power rating in W2500

Max. TwinBooster power rating in W3000

Positionrear left

TypeDual-circuit ring

Size in mmØ 100-160

Max. rating in W1400

Max. Booster power rating in W1700

Max. TwinBooster power rating in W2200

Positionright

TypePowerFlex bridge

Size in mm230x390

Max. rating in W3400

Max. Booster power rating in W4800

Max. TwinBooster power rating in W7300

Networking with Miele@home

Automatic function Con@ctivity

Operation via sensor controlsComfortSelect

Display colourYellow

Permanent pan recognition

Pan and pan size recognition

Stop & Go function

Recall function

Minute minder

Safety switch-off

Auto heat-up

Keeping warm

Individual setting options (e.g. buzzers)

Power rating in off mode in W0.50

Power rating in standby mode in W1

Power rating in networked standby in W2

Time until automatic switch to off mode in min20

Time until automatic switch to standby in min20

Time until automatic switch to networked standby in min20

Easy to clean ceramic glass

Safety switch-off

Lock function

System lock

Integrated cooling fan

Overheating protection

Residual heat indicator

Dimensions in mm (width)626

Dimensions in mm (height)52

Casing height incl. connection box in mm45

Dimensions in mm (depth)526

Cutout dimensions in mm (width) with surface-mounted installation560

Cutout dimensions in mm (depth) with surface-mounted installation490

Weight in kg11

Total rated load in kW7.30

Voltage in V230

Frequency in Hz50.00-60.00

Length of supply lead in m1.40

Mains cable

EAN4002516149248

What's included

Mains cable

Smart control

Con@ctivity

Innovative convenience: the cooker hood reacts automatically to settings on the hob.

Ideal for large pans

PowerFlex

Unbeatably fast and versatile: the booster output of up to 7.3 kW.

Safety

For greater safety and security

Safety functions

The safety functions prevent any unpleasant surprises – even if your mind is on other things.

Setup/function

Smart control

Con@ctivity

Innovative convenience: the cooker hood reacts automatically to settings on the hob.

Booster Function for rapid heating

TwinBooster

Flexible power: the induction power can be individually distributed or focused on just one cooking zone.

Added convenience

Convenient additional functions

Numerous additional functions such as Stop & Go and the timer make life easier in the kitchen.

Set down your pan and get cooking

Permanent pan detection

Automatic control element activation: when the hob is turned on, pans which are already in place are detected.

Ideal for large pans

PowerFlex

Unbeatably fast and versatile: the booster output of up to 7.3 kW.

Matching products and accessories

GP CL KM 0252 L

Ceramic and stainless steel cleaner, 250 ml

For best cleaning results and safe use.

GP MI X 0011 W

Multi-purpose microfibre cloth, qty 1

For best cleaning results and safe use.

GP GS KM 0011 M

Scraper for cleaning

For ceramic glass hobs.

GGRP

Gourmet griddle plate

For a unique grilling experience on Miele induction hobs

GP MI S 0031 W

MicroCloth kit, 3 pieces

For best cleaning results and safe use.

Tepan Yaki

for a unique cooking experience on Miele induction hobs

iittala cookware, set of 4 pans

from the "All Steel" range by Harri Koskinen, satin finish exclusively f. Miele.

KMTS 5704-2

Fiskars “All Steel” starter pan set (4 pieces)

stainless steel cookware with a matt brushed finish exclusively for Miele.

SF GGRP

Silicone feet

to ensure that the Gourmet griddle plate is secure on the induction hob

HUB 5001-M

Induction compatible gourmet oven dish

For frying, braising and gratinating.

Downloads

Product sheet

PDF

Downloads

Warranty conditions

PDF

Downloads

Operating instructions/Installation instructions

PDF

Downloads

EU declaration of conformity

PDF

Downloads

EU declaration of conformity

PDF

Downloads

ifc

ZIP

Downloads

rfa

ZIP

Downloads

fbx

ZIP

Downloads

rvt

ZIP

Downloads

dwg

ZIP

Downloads

Product fiche

PDF

Downloads

Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts. In the event of queries, please ring us for some no-obligation advice!

https://media.miele.com/images/2000014/200001426/20000142614.png

Descriptions

KM7464FR, KM7466FR (installation drawings)

1) at the front 2) Mains connection box with mains connection cable, L = 1440 mm,
