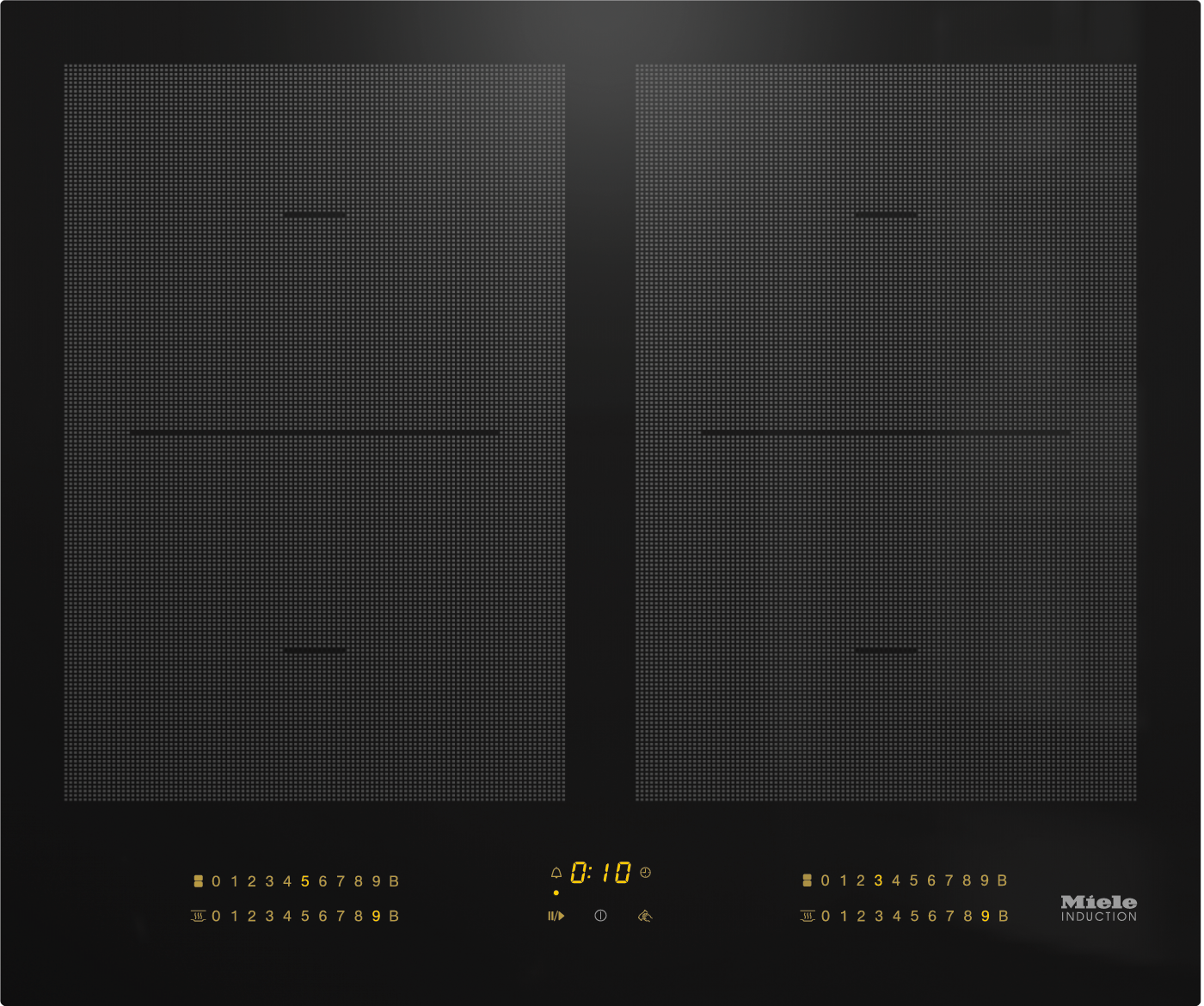

Induction hob with onset controls

KM 7564 FL

with 4  PowerFlex cooking areas for maximum power output
Product data sheet
sale price€1,689.99
A contribution to recycling costs (PRF) of 5 EUR for large domestic appliances and 10 EUR for American Side by Side refrigeration is Included in the retail price. No fees apply to Vacuum Cleaners, Accessories, Hobs, Microwaves, Hoods or Coffee Machines.


Additional services

You can select the following services for this product in your basket:

  • Built-In Installation (€70.00)
  • WEEE Collection (€0.00)

Product details

  • Intuitive quick selection via number sequences –Smart Select
  • 4  cooking zones incl. 4  high-powerPowerFlex cooking areas
  • A width of 620 mm for surface-mounted or flush-fit installation
  • Seamlessly integrates with anySmartLine element
  • Communication with the hood – automaticCon@ctivityfunction

Product data sheet

Heating typeInduction
Independent of cooker
Elegant glass ceramic surface
Ceramic surface colourBlack
Flush
Surface-mounted installation
Can be combined with SmartLine
Can be combined with SmartLine downdraft extractor
Number of cooking zones4
Number of cooking areas2
Maximum number of pans4
No.4
TypePowerFlex cooking zone
Size in mmØ 150 – 230
Max. rating in W2100
Max. Booster power rating in W3000
Max. TwinBooster power rating in W3650
PositionLeft
TypePowerFlex bridge
Size in mm230x390
Max. rating in W3400
Max. Booster power rating in W4800
Max. TwinBooster power rating in W7300
Positionright
TypePowerFlex bridge
Size in mm230x390
Max. rating in W3400
Max. Booster power rating in W4800
Max. TwinBooster power rating in W7300
Networking with Miele@home
Automatic function Con@ctivity
Operation via sensor controlsSmart Select
Display colourYellow
Permanent pan recognition
Pan and pan size recognition
Stop & Go function
Wipe protection
Recall function
Minute minder
Safety switch-off
Auto heat-up
Keeping warm
Individual setting options (e.g. buzzers)
Power rating in off mode in W0.50
Power rating in standby mode in W1
Power rating in networked standby in W2
Time until automatic switch to off mode in min20
Time until automatic switch to standby in min20
Time until automatic switch to networked standby in min20
Easy to clean ceramic glass
Safety switch-off
Lock function
System lock
Integrated cooling fan
Overheating protection
Residual heat indicator
Dimensions in mm (width)620
Dimensions in mm (height)51
Casing height incl. connection box in mm51
Dimensions in mm (depth)520
Cutout dimensions in mm (width) with surface-mounted installation600
Cutout dimensions in mm (depth) with surface-mounted installation500
Internal cutout dimensions in mm (width) with flush installation600
Internal cutout dimensions in mm (depth) with flush installation500
External cutout dimensions in mm (width) with flush installation624
External cutout dimensions in mm (depth) with flush installation524
Weight in kg11
Total rated load in kW7.30
Voltage in V230
Frequency in Hz50.00-60.00
Length of supply lead in m1.40
Mains cable
EAN4002516149279

What's included

Mains cable
Smart control
Con@ctivity

Innovative convenience: the cooker hood reacts automatically to settings on the hob.

Ideal for large pans
PowerFlex

Unbeatably fast and versatile: the booster output of up to 7.3 kW.

Safety

For greater safety and security
Safety functions

The safety functions prevent any unpleasant surprises – even if your mind is on other things.

User convenience

Easy operation with SmartSelect
SmartSelect

Quick and intuitive: power levels and times can be selected directly for each cooking zone.

Setup/function

Combination with SmartLine
Combination with SmartLine

Uniform and elegant: your Miele hob can be optimally combined with our SmartLine elements.

Smart control
Con@ctivity

Innovative convenience: the cooker hood reacts automatically to settings on the hob.

Booster Function for rapid heating
TwinBooster

Flexible power: the induction power can be individually distributed or focused on just one cooking zone.

Added convenience
Convenient additional functions

Numerous additional functions such as Stop & Go and the timer make life easier in the kitchen.

Set down your pan and get cooking
Permanent pan detection

Automatic control element activation: when the hob is turned on, pans which are already in place are detected.

Ideal for large pans
PowerFlex

Unbeatably fast and versatile: the booster output of up to 7.3 kW.

Matching products and accessories

Spacer strip
CSZL 7000

Spacer strip

for installing several SmartLine elements in one single cut-out.

€69.99
Ceramic and stainless steel cleaner, 250 ml
GP CL KM 0252 L

Ceramic and stainless steel cleaner, 250 ml

For best cleaning results and safe use.

€8.99
Multi-purpose microfibre cloth, qty 1
GP MI X 0011 W

Multi-purpose microfibre cloth, qty 1

For best cleaning results and safe use.

€9.99
Scraper for cleaning
GP GS KM 0011 M

Scraper for cleaning

For ceramic glass hobs.

€13.99
Gourmet griddle plate
GGRP

Gourmet griddle plate

For a unique grilling experience on Miele induction hobs

€269.99
Gourmet casserole dish lid
HBD 60-35

Gourmet casserole dish lid

for Miele HUB 61-35, HUB 5000-XL and HUB 5001-XL oven dishes.

€154.99
MicroCloth kit, 3 pieces
GP MI S 0031 W

MicroCloth kit, 3 pieces

For best cleaning results and safe use.

€14.99
Tepan Yaki

Tepan Yaki

for a unique cooking experience on Miele induction hobs

€349.99
iittala cookware, set of 4 pans

iittala cookware, set of 4 pans

from the "All Steel" range by Harri Koskinen, satin finish exclusively f. Miele.

€359.00
Fiskars “All Steel” starter pan set (4 pieces)
KMTS 5704-2

Fiskars “All Steel” starter pan set (4 pieces)

stainless steel cookware with a matt brushed finish exclusively for Miele.

€449.99
Spacer strip
CSZL 7000

Spacer strip

for installing several SmartLine elements in one single cut-out.

€69.99

Downloads

Product sheet
PDF
Downloads
Warranty conditions
PDF
Downloads
EU declaration of conformity
PDF
Downloads
EU declaration of conformity
PDF
Downloads
Operating instructions/Installation instructions
PDF
Downloads
ifc
ZIP
Downloads
fbx
ZIP
Downloads
rvt
ZIP
Downloads
rfa
ZIP
Downloads
dwg
ZIP
Downloads
Product fiche
PDF
Downloads

Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts. In the event of queries, please ring us for some no-obligation advice!

https://media.miele.com/images/2000013/200001319/20000131999.png
Descriptions

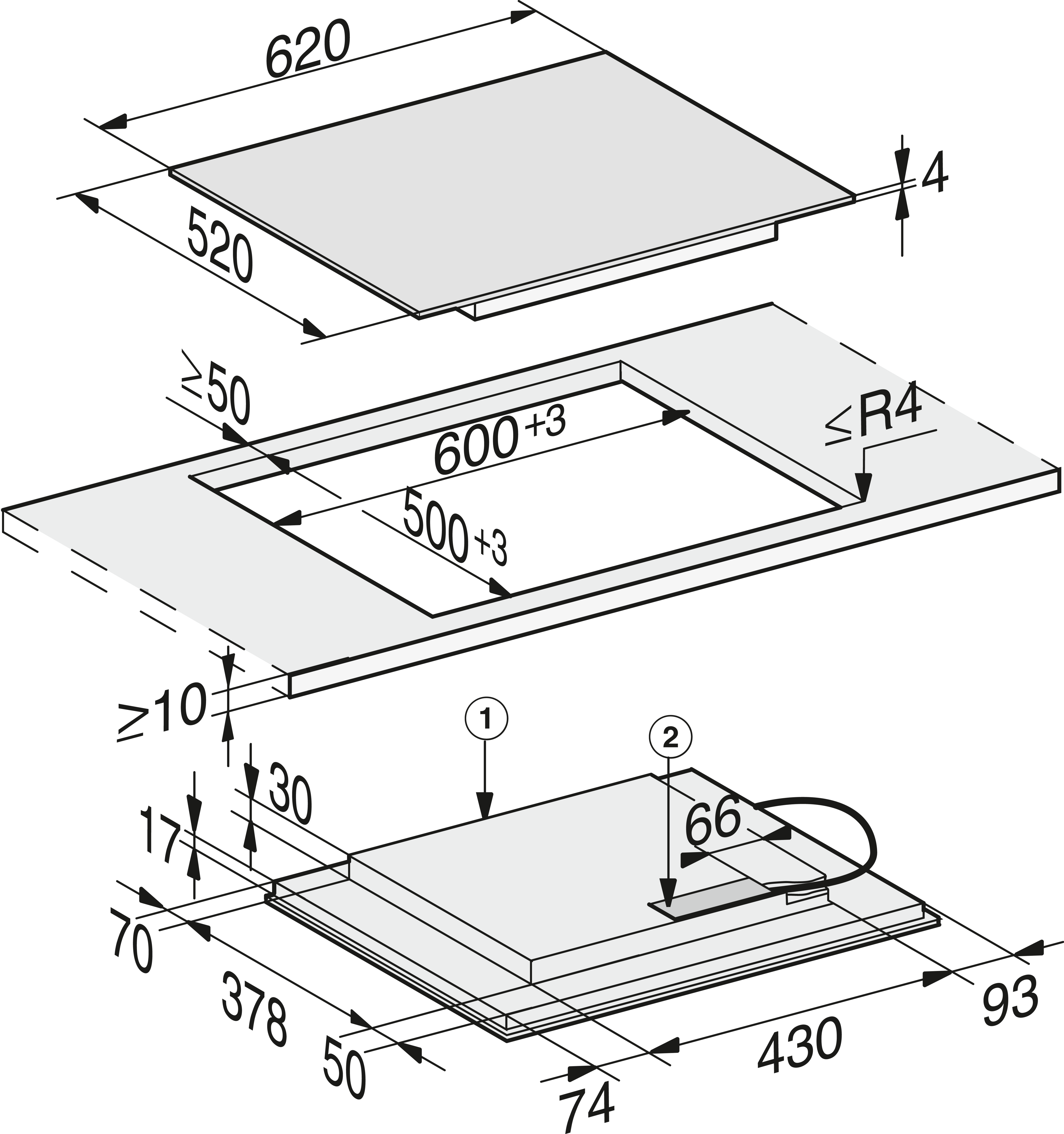

KM7564-1FL, KM7564FL (installation drawing)
1) Front, 2) Mains connection box with mains connection cable, L = 1440 mm
Downloads
https://media.miele.com/images/2000013/200001320/20000132000.png
Descriptions

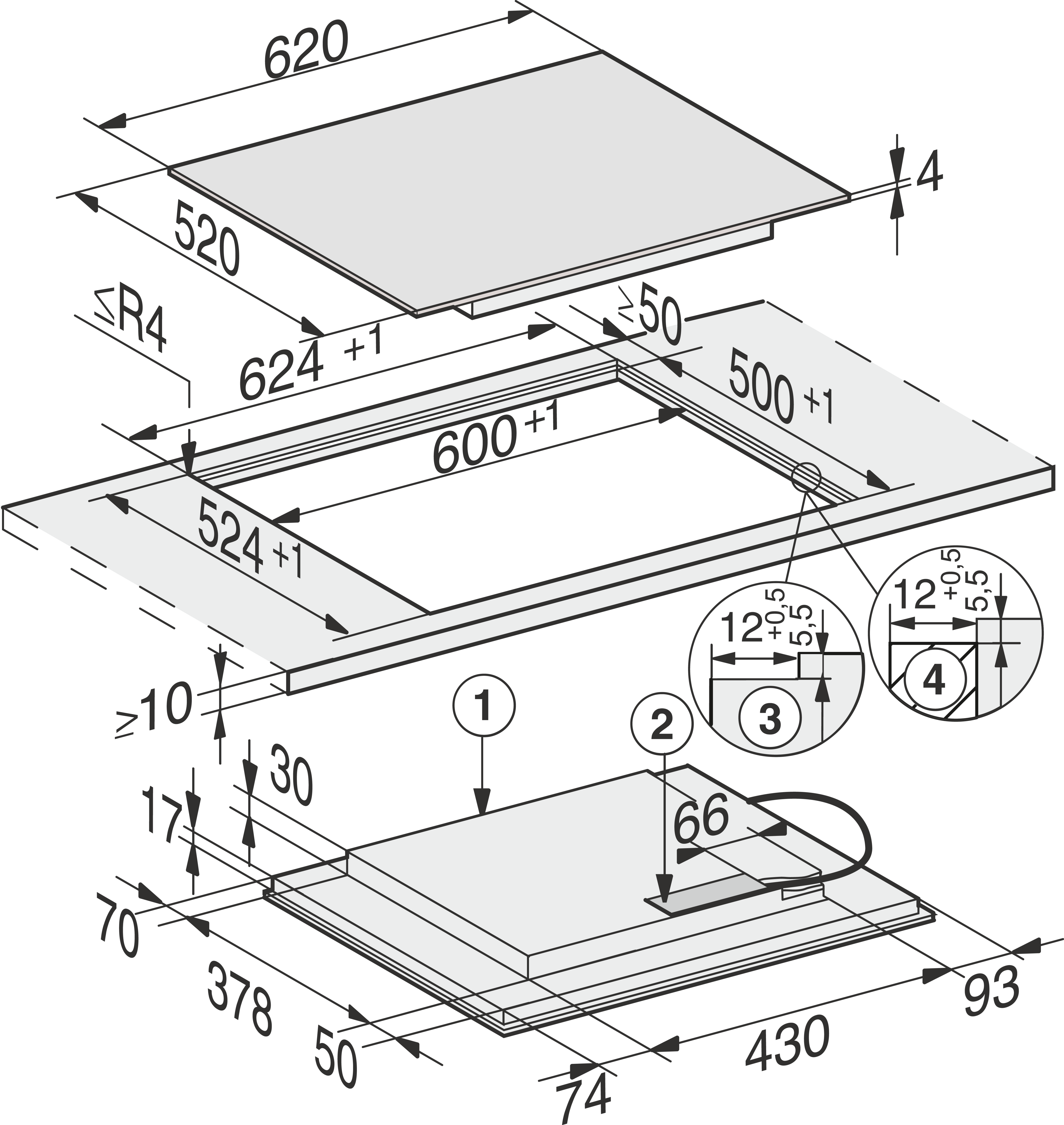

KM7564-1FL, KM7564F flush (installation drawing)
1) Front, 2) Mains connection box with mains connection cable, L = 1440 mm, 3) Stepped cut-out stone worktops, 4) Wooden frame 12 mm (supplied loose)
