Oven

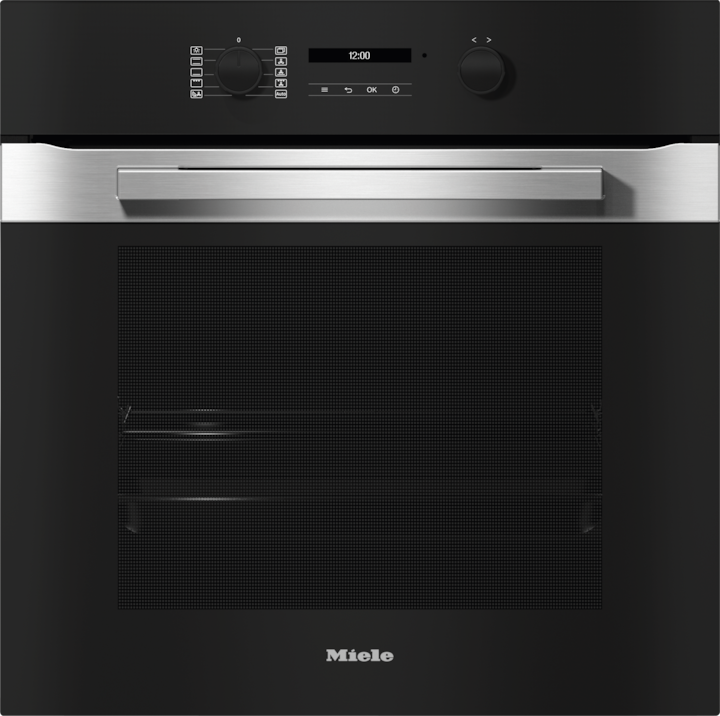

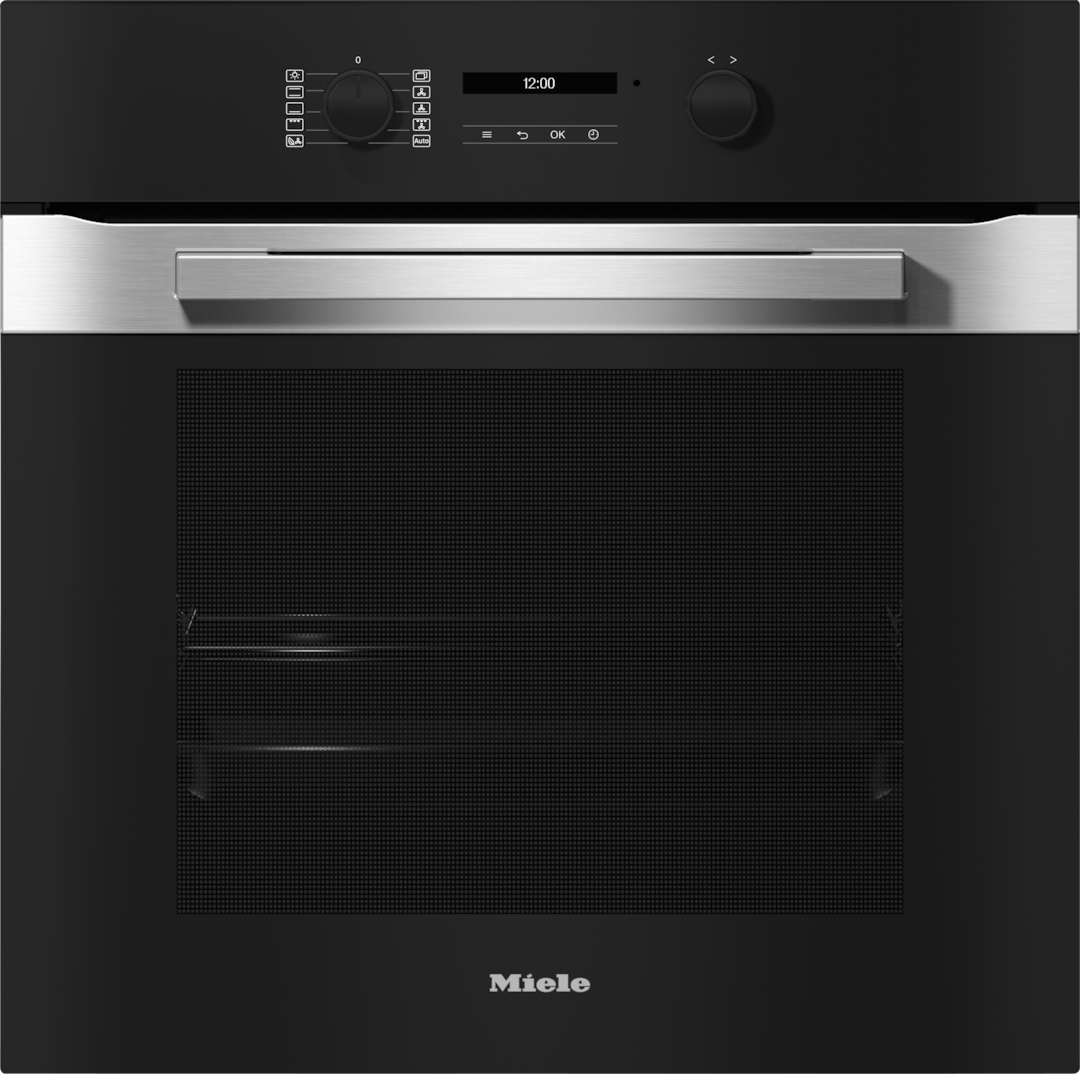

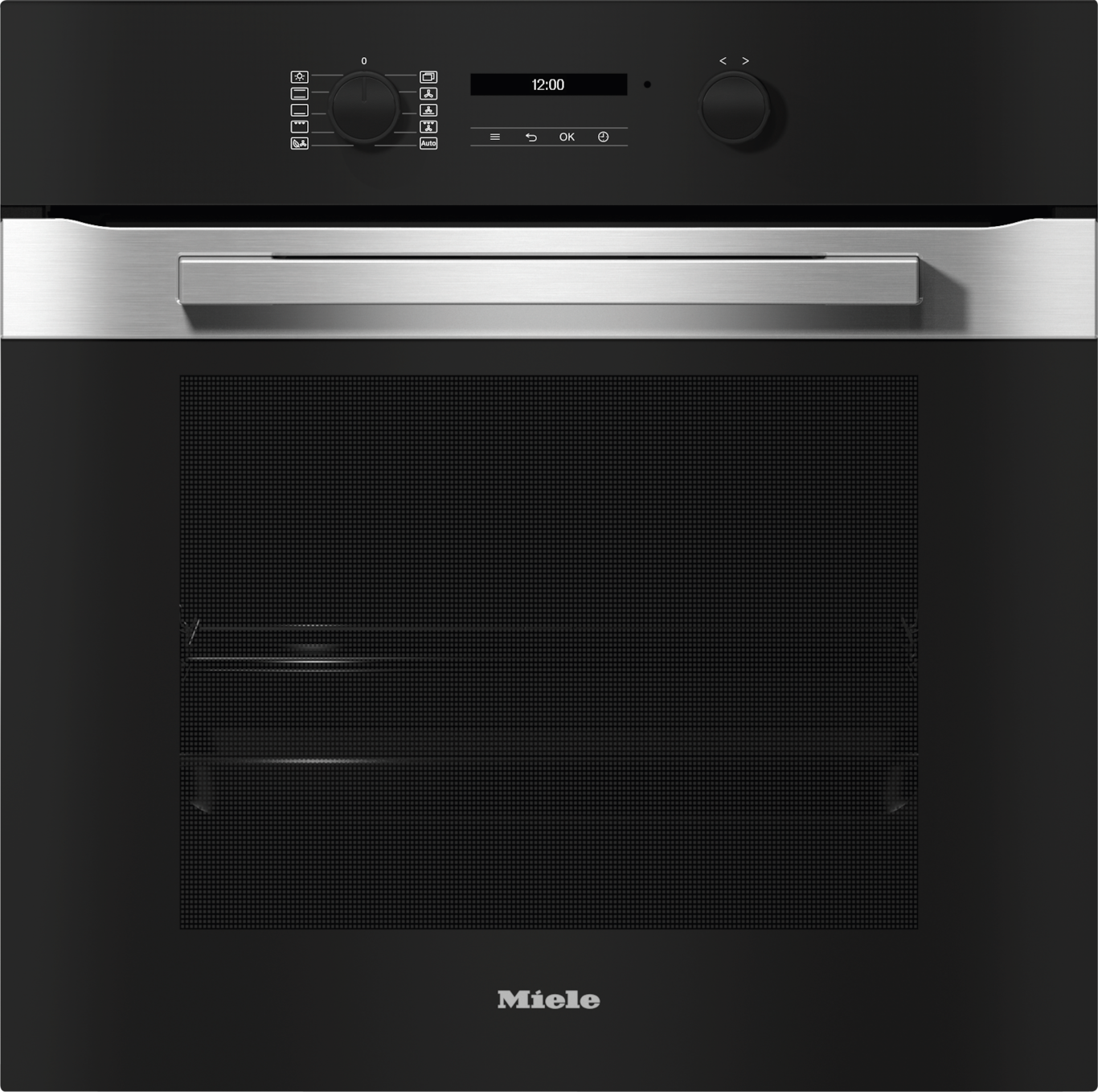

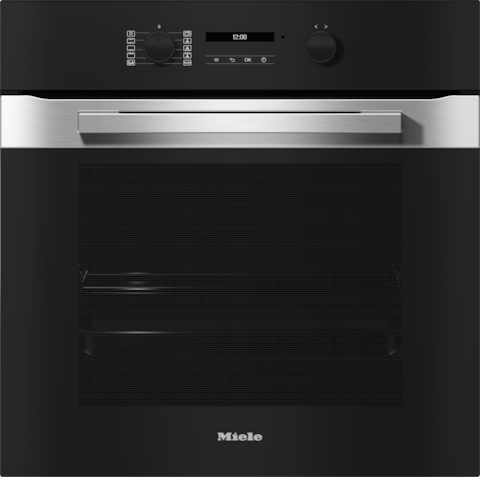

H 2861 B Stainless steel/Clean Steel

in a mix and match design with networking, PerfectClean and FlexiClip runners.


sale price€1,199.99
A contribution to recycling costs (PRF) of 5 EUR for large domestic appliances and 10 EUR for American Side by Side refrigeration is Included in the retail price. No fees apply to Vacuum Cleaners, Accessories, Hobs, Microwaves, Hoods or Coffee Machines.
Retail price includes 23% VAT.



Product details

  • Clear text display with rotary controls –EasyControl Plus
  • Particularly easy to clean -PerfectClean finish
  • Network-enabled WiFi appliance –Miele@home
  • Achieve perfect results with ease –automatic programmes
  • For everything that is crunchy and crisp –AirFry operating mode

Product data sheet

Built-in oven
PureLine
Appliance ColourStainless steel/Clean Steel
Rapid heat-up
Fan plus
Conventional heat
AirFry
Intensive bake
Fan grill
Grill
Grill operating modes
Bottom heat
Eco hot air
Automatic programmes
Networking with Miele@home
DisplayEasyControl Plus
SoftOpen
SoftClose
MultiLingua
Timer functions
Time of day display
Minute minder
Programmable start of cooking duration
Programmable end of cooking duration
Programmable cooking duration
Actual temperature display
Target temperature display
Buzzer when desired temperature is reached
Recommended temperature
Individual settings
Energy efficiency class (A+++ - D)A+
Power rating in off mode in W0.50
Stainless steel/CleanSteel finish
Oven compartment with PerfectClean and catalytically enamelled liners
CleanGlass door
Appliance cooling system and touch-cool front
Safety switch-off
System lock
Oven compartment volume in l76
No. of shelf levels5
Numbered shelf levels
Oven light1 halogen spot
Temperatures in °C30–300
Niche dimensions (W x H x D) in mm560-568 x 590-595 x 550
Niche width min. in mm560
Niche width max. in mm568
Niche height min. in mm590
Niche height max. in mm595
Niche depth in mm550
Appliance dimensions (W x H x D) in mm595 x 596 x 569
Weight in kg42
Total rated load in kW3.50
Voltage in V220.00-240.00
Frequency in Hz50
Fuse rating in A16
Number of phases1
Length of supply lead in m1.50
Replacing lampsCustomer
Baking tray with PerfectClean HBB 711
Universal tray with PerfectClean HUBB 711
Baking and roasting rack without PerfectClean1
FlexiClip runners HFC 70-C (pair)1
Removable side runners (pair)1
Grilling and roasting insert with PerfectClean1
Available display languages via MultiLinguaslovenščina
EAN4002516642565

What's included

Baking tray with PerfectClean HBB 71 (1)
Universal tray with PerfectClean HUBB 71 (1)
Baking and roasting rack without PerfectClean (1)
FlexiClip runners HFC 70-C (pair) (1)
Removable side runners (pair) (1)
Grilling and roasting insert with PerfectClean (1)

Safety

The only thing that gets hot is the food
Touch-cool front

Protection against burns: the appliance remains relatively cool – even on the outside of the door.


Maximum safety in any situation
Safety functions

Safety guaranteed: safety lock and safety switch-off provide reliable protection.


Efficiency and sustainability

Exceptional energy efficiency
Energy efficiency

Good for the environment and your wallet: almost all of our appliances correspond to energy efficiency class A+.


Operating modes

Fan plus

Perfectly soft and light: ideal for gentle baking and roasting on up to two levels.


Eco fan heat

Extremely energy-efficient: succulent roasts or incredible bakes are cooked to perfection.


Full grill

Versatile function: perfect for grilling larger quantities of steaks, sausages, kebabs and more.


Intensive bake

Crispy bases, delicious toppings: pizza, quiche or fresh fruit flans – crispy base, moist on top.


Conventional heat

Multi-purpose, classic function: perfect results for all types of traditional baked and roasted dishes.


Bottom heat

Individual requirements: for cooking food in a bain-marie or for browning from underneath.


Fan grill

Crisp outside, succulent inside: ideal for chicken, duck, pork knuckle, rolled meat and many other meat dishes.


Booster

For those who lead a busy life: if there’s not much time for cooking, you will really appreciate this function.


AirFry

Cook crunchy and crispy French fries or poultry in a hot air stream and without adding fat.


Special features

Stress-free cooking with success guaranteed
Automatic programmes

Cooking delicious dishes with ease: cakes, fish or meat – fully automatic cooking.


User convenience

Cleverly networked
Domestic appliance networking with Miele@home3,

Make your life smart: thanks to Miele@home, you can cleverly network your domestic appliances – for more options.


Gentle door movement
SoftOpen and SoftClose

Refined and elegant: the door opens and closes with a gentle movement from beginning to end.


Leave time management to your oven
Timer functions

Always on time: programme the start time, finish time and duration of the cooking process or the minute minder.


Easy to understand
MultiLingua

The controls can be shown in numerous languages so users can operate the appliance in a language they understand.


Gentle and even
AirFry

Cook crunchy and crispy French fries or poultry in a hot air stream and without adding fat.


Maintenance

Unique non-stick effect for effortless cleaning
PerfectClean

Fast cleaning: as no food residue sticks to the surfaces, cleaning is extremely easy.


Finish for flawless stainless steel surfaces
CleanSteel

No fingerprints on stainless steel: the surface is protected and no special cleaning agents are required.


Downloads

Warranty conditions
PDF
Downloads
Product sheet
PDF
Downloads
Operating instructions/Installation instructions
PDF
Downloads
EU declaration of conformity
PDF
Downloads
ifc
ZIP
Downloads
rvt
ZIP
Downloads
dwg
ZIP
Downloads
fbx
ZIP
Downloads
rfa
ZIP
Downloads
Energy label
PNG
Downloads
Energy label
PDF
Downloads
Product fiche
PDF
Downloads
Energy label
Downloads

Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts. In the event of queries, please ring us for some no-obligation advice!

https://media.miele.com/images/2000015/200001537/20000153722.png
Descriptions
Installation H7000 XL underframe, installation drawings
If the oven is to be installed under a hob, follow the instructions for installing the hob and the height of the hob.
Downloads
https://media.miele.com/images/2000015/200001537/20000153736.png
Descriptions
H7000 handle, installation drawing
1) 400 mm, 2) 360 mm, 3) 47 mm, 4) 24 mm, 5) 32.5 mm
Downloads
https://media.miele.com/images/2000015/200001537/20000153707.png
Descriptions
installation H7000 XL, installation drawing, GB, AU
1) Netzanschlussleitung, L=1500 mm, 2) In diesem Bereich kein Anschluss, 3) Lüftungsausschnitt min. 150 cm²
Downloads
https://media.miele.com/images/2000015/200001537/20000153713.png
Descriptions
side view H7000 XL, installation drawings, GB, AU
22 mm - glass, 23.3 mm - metal
Downloads
https://media.miele.com/images/2000016/200001697/20000169786.png
Descriptions
side view H7000 XL build-under, installation drawing, GB, AU
22 mm - glass, 23.3 mm - metal
Downloads
https://media.miele.com/images/2000015/200001537/20000153718.png
Descriptions
built-in H7000 XL, installation drawing
Installation drawings
Downloads
  • 1.A contribution to recycling costs (PRF) of 5 EUR for large domestic appliances and 10 EUR for American Side by Side refrigeration is Included in the retail price. No fees apply to Vacuum Cleaners, Accessories, Hobs, Microwaves, Hoods or Coffee Machines.
  • 2.Retail price includes 23% VAT.
  • 3.Additional digital offer from Miele & Cie. KG. All smart applications are made possible with the Miele@home system. The range of functions can vary depending on the model and the country.

We reserve the right to make technical changes; we assume no liability for the accuracy of the information provided.
