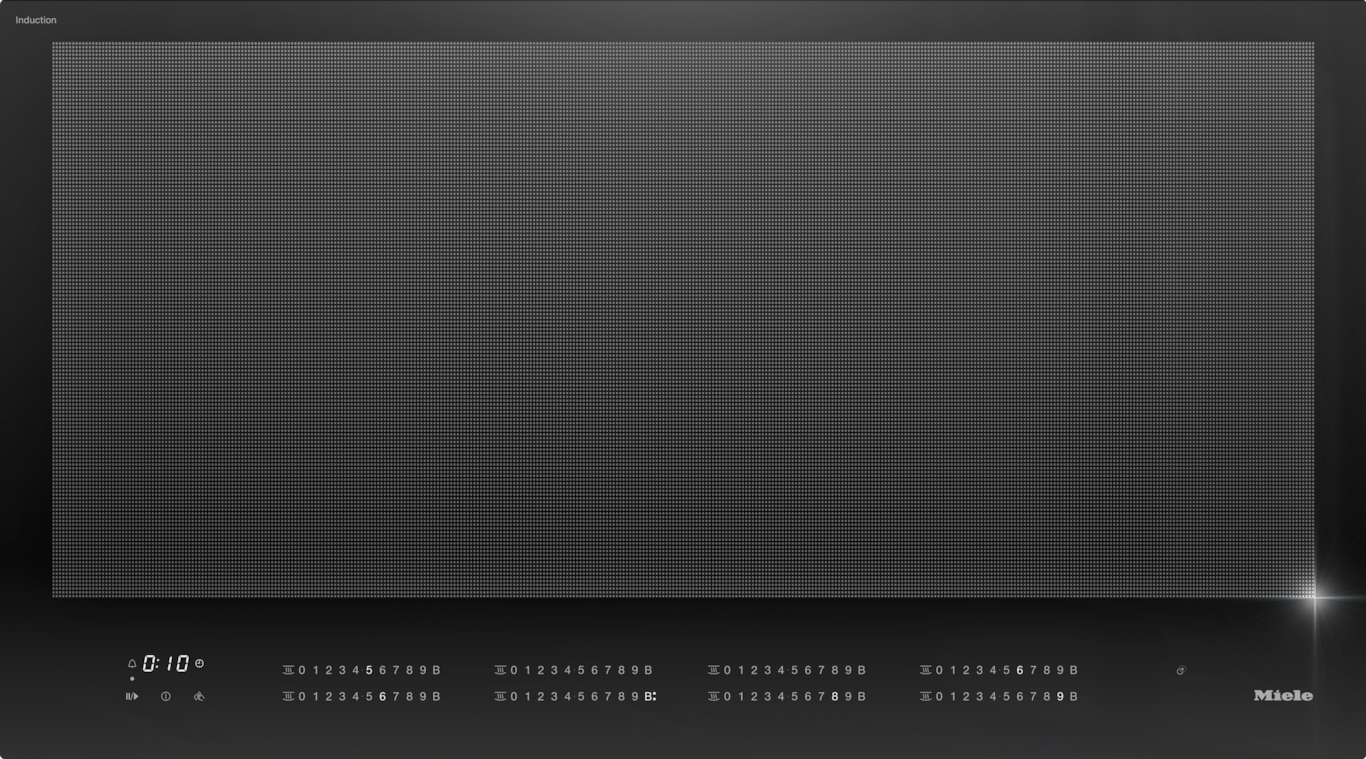

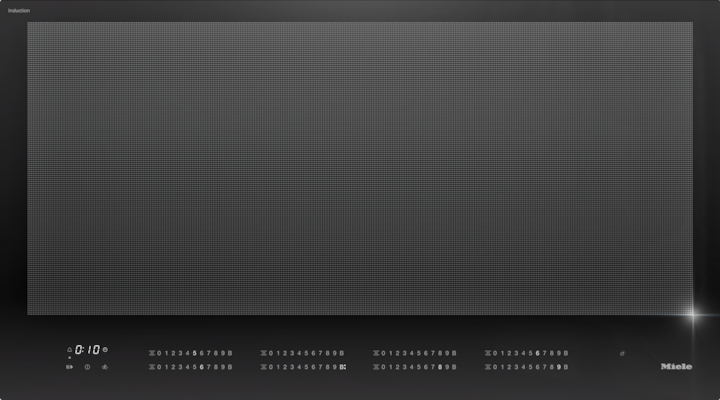

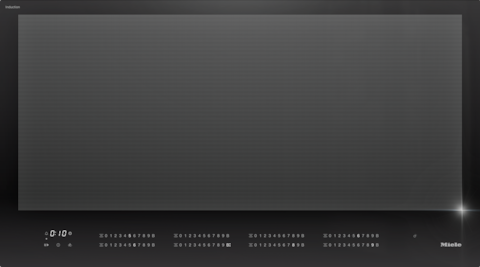

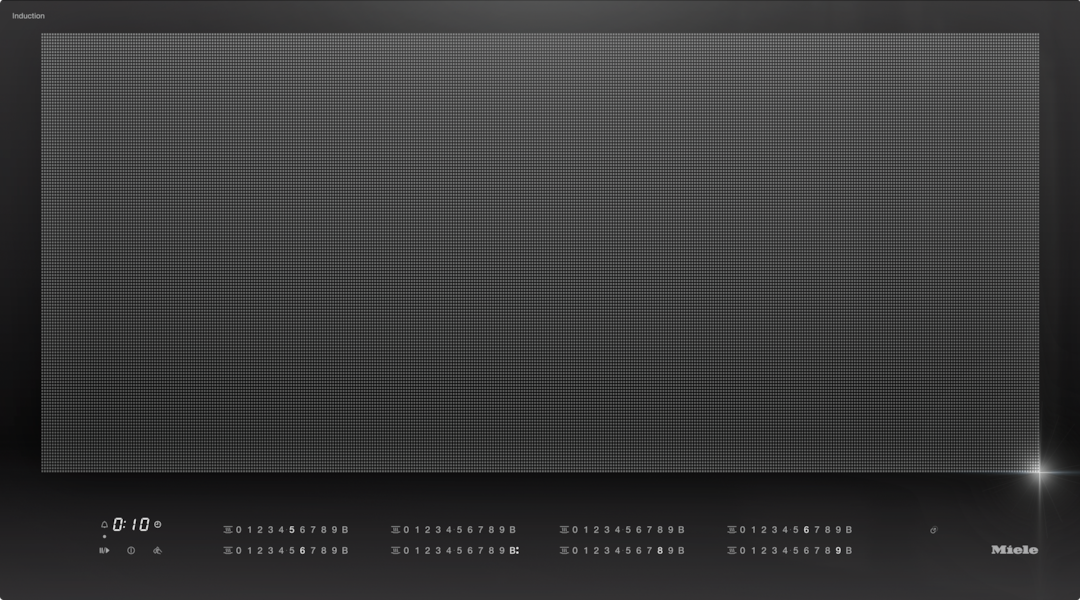

KM 7897-2 FL Diamond

Induction hob with onset controls

KM 7897-2 FL Diamond

Name: KM 7897-2 FL Diamond
Brand: Miele
SKU: 12273810
Price: 3699.99 EUR
Availability: InStock

with full-surface induction and DiamondFinish for long-lasting cooking pleasure

Product data sheet

€3,699.99

A contribution to recycling costs (PRF) of 5 EUR for large domestic appliances and 10 EUR for American Side by Side refrigeration is Included in the retail price. No fees apply to Vacuum Cleaners, Accessories, Hobs, Microwaves, Hoods or Coffee Machines.

Retail price includes 23% VAT.

Product details

Hard-wearing finish –DiamondFinish
Intelligent pan recognition – for up to 6 pans
Intuitive quick selection with numerical keybank -Smart Select White
Communication with the hood – automaticCon@ctivityfunction
Frameless for flush-fit or surface-mounted installation

Product data sheet

Heating typeInduction

Independent of cooker

Elegant glass ceramic surface

Scratch-resistant surfaceDiamondFinish

Ceramic surface colourGraphite black

Flush

Surface-mounted installation

Number of cooking areas1

Maximum number of pans6

PositionCan be selected freely

TypeFull area

Size in mm870x380

Max. rating in W2600

Max. Booster power rating in W3300

Max. TwinBooster power rating in W3650

Networking with Miele@home

Automatic function Con@ctivity

Operation via sensor controlsSmart Select White

Display colourWhite

Pan and pan size recognition

Intelligent pan recognition

Positioning aid

Stop & Go function

Wipe protection

Recall function

Minute minder

Safety switch-off

Auto heat-up

Keeping warm

Individual setting options (e.g. buzzers)

Power rating in off mode in W0.5

Power rating in standby mode in W1

Power rating in networked standby in W2

Time until automatic switch to off mode in min20

Time until automatic switch to standby in min20

Time until automatic switch to networked standby in min20

Easy to clean ceramic glass

Safety switch-off

Lock function

System lock

Integrated cooling fan

Overheating protection

Residual heat indicator

Dimensions in mm (width)936

Dimensions in mm (height)51

Casing height incl. connection box in mm57

Dimensions in mm (depth)520

Cutout dimensions in mm (width) with surface-mounted installation916

Cutout dimensions in mm (depth) with surface-mounted installation500

Internal cutout dimensions in mm (width) with flush installation916

Internal cutout dimensions in mm (depth) with flush installation500

External cutout dimensions in mm (width) with flush installation940

External cutout dimensions in mm (depth) with flush installation524

Weight in kg21

Total rated load in kW9.200

Voltage in V230

Frequency in Hz50-60

Length of supply lead in m1.4

Mains cable

EAN4002516675136

What's included

Mains cable

Smart control

Con@ctivity

Innovative convenience: the cooker hood reacts automatically to settings on the hob.

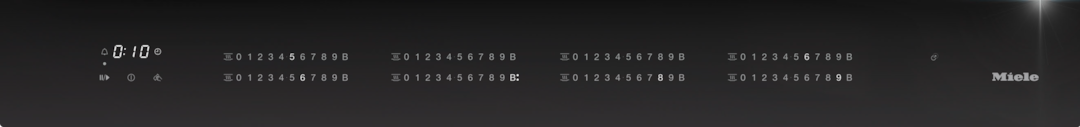

Easy operation with SmartSelect

SmartSelect White

Quick and intuitive: power levels can be selected directly for each cooking zone.

Unrivalled flexibility

Full-surface

Use the hob surface however you like: pans can be placed anywhere.

Hard-wearing finish

DiamondFinish

Robust and sophisticated: the particularly resistant and high-quality DiamondFinish coating reduces scratches.

Safety

For greater safety and security

Safety functions

The safety functions prevent any unpleasant surprises – even if your mind is on other things.

User convenience

Easy operation with SmartSelect

SmartSelect White

Quick and intuitive: power levels can be selected directly for each cooking zone.

Setup/function

Smart control

Con@ctivity

Innovative convenience: the cooker hood reacts automatically to settings on the hob.

Intuitive and intelligent

Intelligent pan detection

Knows where the pan is: the control elements simply move along on the full surface.

Booster Function for rapid heating

TwinBooster

Flexible power: the induction power can be individually distributed or focused on just one cooking zone.

Added convenience

Convenient additional functions

Numerous additional functions such as Stop & Go and the timer make life easier in the kitchen.

Unrivalled flexibility

Full-surface

Use the hob surface however you like: pans can be placed anywhere.

Hard-wearing finish

DiamondFinish

Robust and sophisticated: the particularly resistant and high-quality DiamondFinish coating reduces scratches.

Matching products and accessories

GP CL KM 0252 L

Ceramic and stainless steel cleaner, 250 ml

For best cleaning results and safe use.

GP MI X 0011 W

Multi-purpose microfibre cloth, qty 1

For best cleaning results and safe use.

GP GS KM 0011 M

Scraper for cleaning

For ceramic glass hobs.

GGRP

Gourmet griddle plate

For a unique grilling experience on Miele induction hobs

GP MI S 0031 W

MicroCloth kit, 3 pieces

For best cleaning results and safe use.

KMTY

Tepan Yaki

for a unique cooking experience on Miele induction hobs

iittala cookware, set of 4 pans

from the "All Steel" range by Harri Koskinen, satin finish exclusively f. Miele.

Fiskars “All Steel” starter pan set (4 pieces)

stainless steel cookware with a matt brushed finish exclusively for Miele.

Silicone feet

to ensure that the Gourmet griddle plate is secure on the induction hob

HUB 5001-M

Induction compatible gourmet oven dish

For frying, braising and gratinating.

Downloads

Warranty conditions

PDF

Downloads

Operating instructions/Installation instructions

PDF

Downloads

Operating instructions/Installation instructions

PDF

Downloads

Product sheet

PDF

Downloads

fbx

ZIP

Downloads

rfa

ZIP

Downloads

ifc

ZIP

Downloads

rvt

ZIP

Downloads

dwg

ZIP

Downloads

Product fiche

PDF

Downloads

Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts. In the event of queries, please ring us for some no-obligation advice!

https://media.miele.com/images/2000015/200001511/20000151125.png

Descriptions

KM7697FL, KM7897FL, KM7897-1FLDiamond, KM7897-2FL Diamond (installation drawings) - flush-fit

1) Front, 2) Mains connection box with mains connection cable, L = 1440 mm, are enclosed loosely, 3) Stepped cut-out natural stone worktop, 4) Wood support 12 mm (not supplied)

Downloads

https://media.miele.com/images/2000015/200001511/20000151107.png

Descriptions

KM7697FL, KM7897FL, KM7897-1FLDiamond, KM7897-2FL Diamond (installation drawings) - onset

1) Front, 2) Mains connection box with mains connection cable, L = 1440 mm, are enclosed loosely,
