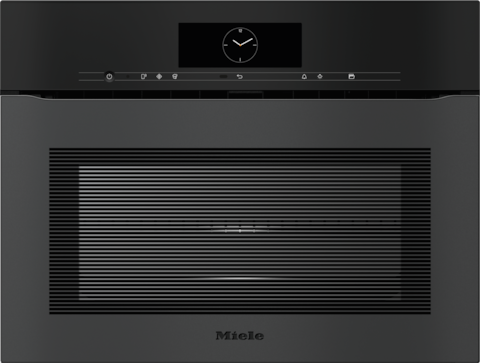

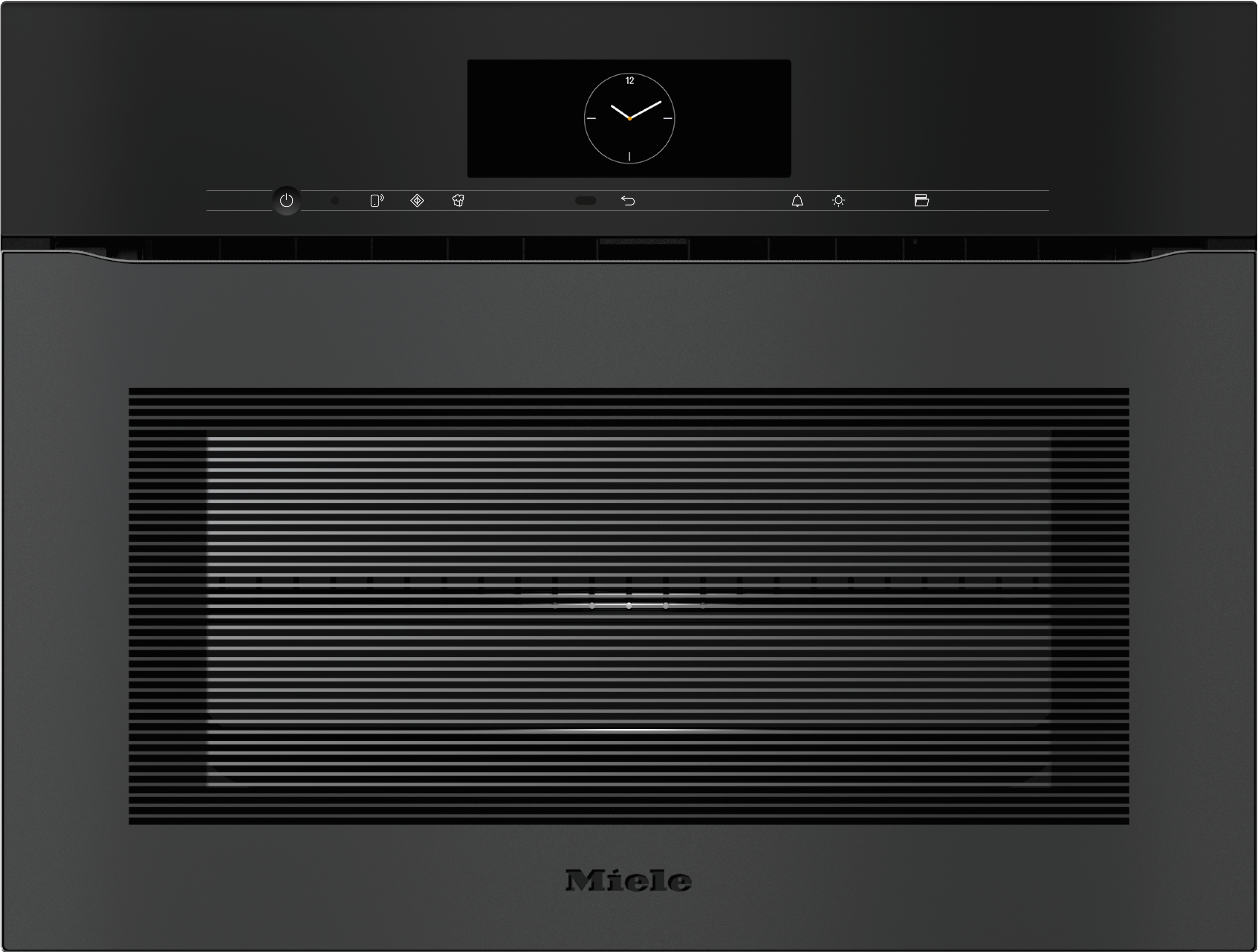

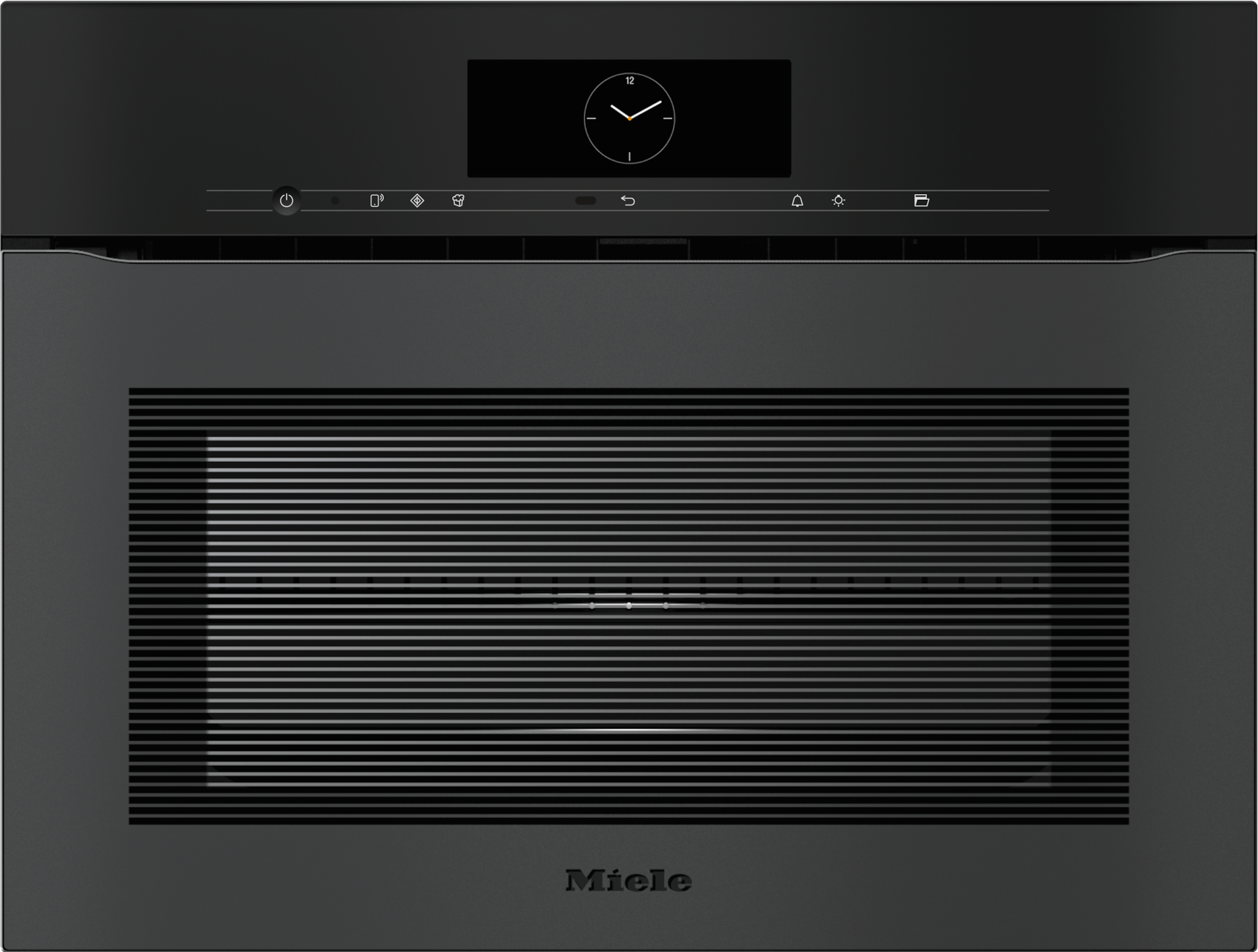

Handleless microwave combination oven

H 7840 BMX Obsidian black matt

with a seamless design, automatic programmes and food probe

Colour:Obsidian black matt
Graphite grey
Obsidian black
Obsidian black matt
Pearl beige

sale price€3,599.99
A contribution to recycling costs (PRF) of 5 EUR for large domestic appliances and 10 EUR for American Side by Side refrigeration is Included in the retail price. No fees apply to Vacuum Cleaners, Accessories, Hobs, Microwaves, Hoods or Coffee Machines.
Retail price includes 23% VAT.



Product details

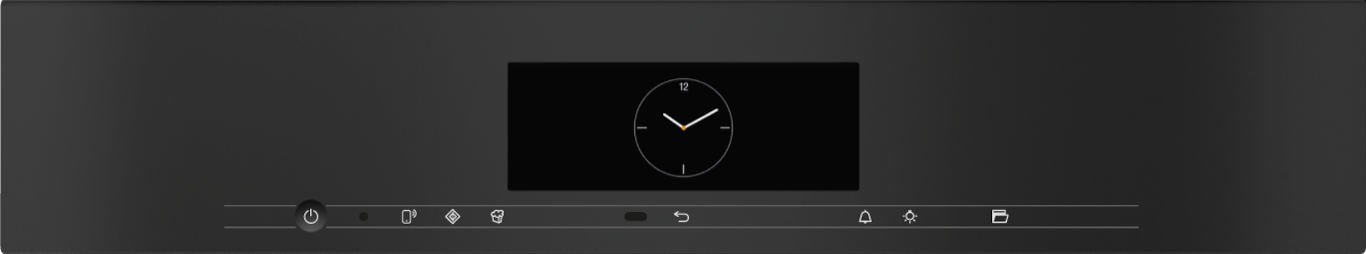

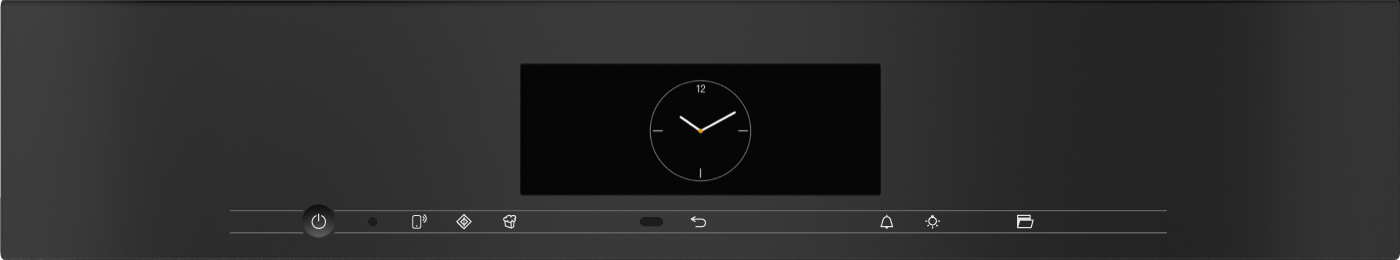

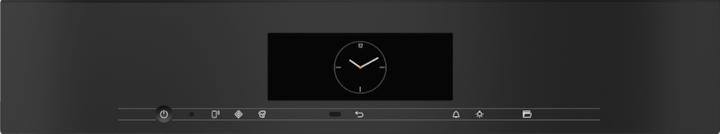

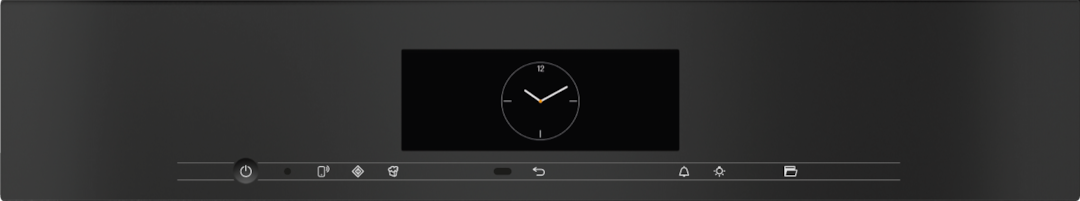

  • Large touch display with movement sensor –M Touch+MotionReact
  • Easy cleaning –compartment with PerfectClean & linen structure
  • Faster and more consistent results –Quick & Gentle
  • Network-enabled WiFi appliance –Miele@home
  • Get what you want in one easy step –Quick MWandPopcorn button

Product data sheet

Built-in microwave combination oven
ArtLine
Handleless
Appliance ColourObsidian black matt
Quick & Gentle
Rapid heat-up
Pre-heating
Food probeWith cable
Keeping warm
Crisp function
Fan plus
Conventional heat
Microwave
Microwave + Fan plus
Microwave + Grill
Microwave + Fan grill
Microwave with Auto roast
Intensive bake
Auto roast
Fan grill
Grill
Grill operating modes
Bottom heat
Low temperature cooking
Eco hot air
Defrosting
Automatic programmes
Country-specific automatic programmes
Special applications
Networking with Miele@home
DisplayM Touch
MotionReact proximity sensor
SoftOpen
Touch2Open
3 in 1
  • Microwave
  • Oven with microwave function
  • Oven
MultiLingua
MyMiele
Help function
Popcorn function
Polyphonic buzzers
Timer functions
Time of day display
Clock synchronisation
Date display
Minute minder
Programmable start of cooking duration
Programmable end of cooking duration
Programmable cooking duration
Actual temperature display
Target temperature display
Buzzer when desired temperature is reached
Recommended temperature
Suggestion microwave power
Quick microwave
User programmes
Individual settings
Automatic residual heat utilisation
Power rating in off mode in W0.5
Stainless-steel oven compartment with linen structure and PerfectClean
Hinged grill element
CleanGlass door
Appliance cooling system and touch-cool front
Safety switch-off
System lock
Sensor lock
Oven compartment volume in l43
No. of shelf levels3
Oven light1 LED spot
Temperatures in °C30–250
Electronically controlled microwave power
Microwave power levels in W80/150/300/450/600/850/1000
Niche dimensions (W x H x D) in mm560-568 x 450-452 x 550
Niche width min. in mm560
Niche width max. in mm568
Niche height min. in mm450
Niche height max. in mm452
Niche depth in mm550
Appliance dimensions (W x H x D) in mm595 x 456 x 562
Weight in kg38
Total rated load in kW3.200
Voltage in V220-240
Frequency in Hz50
Fuse rating in A16
Number of phases1
Mains cable with plug
Length of supply lead in m2
Replacing lampsService
Baking and roasting rack with PerfectClean1
Wired food probe1
Glass tray2
Available display languages via MultiLingua
  • slovenščina
  • deutsch
  • english
  • 繁體中文
  • hrvatski
  • slovenčina
  • suomi
  • 日本語
  • pусский
  • bahasa malaysia
  • srpski
  • italiano
  • română
  • 中文
  • ελληνιкά
  • nederlands
  • svenska
  • yкраїнська
  • 한국어
  • dansk
  • français
  • magyar
  • čeština
  • norsk
  • türkçe
  • العربية
  • polski
  • español
  • português
EAN4002516713463

What's included

Baking and roasting rack with PerfectClean (1)
Glass tray (2)
Wired food probe (1)

Safety

The only thing that gets hot is the food
Touch-cool front

Protection against burns: the appliance remains relatively cool – even on the outside of the door.


Maximum safety in any situation
Safety functions

Safety guaranteed: safety lock and safety switch-off provide reliable protection.


Oven cabinets

In the best possible light
LED spotlight

Spot on: the LED spotlight illuminates the oven compartment perfectly and is particularly energy-efficient.


Special non-stick finish
Stainless steel oven compartment, linen structure3,

Easy to clean: the special surface with a linen structure is scratch-proof and has a PerfectClean finish.


Operating modes

Microwave

Reheat water for a cup of tea or warm up a meal: efficient convenience – fast.


Microwave plus Auto roast

Juicy inside, crispy outside: meat is seared at a high temperature, then cooking continues with microwave power.


Microwave + Grill

Cooking and grilling: the perfect grilled flavour for meat, fish, vegetables and so much more.


Microwave + Fan plus

Whether cakes or a Sunday roast: ideal for quick and gentle baking and roasting on up to two levels.


Microwave + Fan grill

Versatile function: perfect for grilling steaks, sausages, kebabs, rolled meat, flash fried meat, etc.


Defrosting

Gentle on frozen food: frozen food is gently defrosted under ideal conditions using cool air.


Eco fan heat

Extremely energy-efficient: succulent roasts or incredible bakes are cooked to perfection.


Fan plus

Perfectly soft and light: ideal for gentle baking and roasting on up to two levels.


Intensive bake

Crispy bases, delicious toppings: pizza, quiche or fresh fruit flans – crispy base, moist on top.


Low temperature cooking

Tender and succulent: meat is cooked incredibly evenly at low temperatures without drying out on the outside.


Conventional heat

Multi-purpose, classic function: perfect results for all types of traditional baked and roasted dishes.


Grill

Versatile function: perfect for grilling larger quantities of steaks, sausages, kebabs and more.


Fan grill

Crisp outside, succulent inside: ideal for chicken, duck, pork knuckle, rolled meat and many other meat dishes.


Bottom heat

Individual requirements: for cooking food in a bain-marie or for browning from underneath.


Auto roast

Meat remains tender and succulent: meat is seared at a high temperature, then roasted at a selected temperature.


Booster

For those who lead a busy life: if there’s not much time for cooking, you will really appreciate this function.


Special features

Stress-free cooking
Automatic programmes

Delicious dishes in no time: bread, cakes or meat – all cooking processes are fully automated.


Precise cooking results for fish and meat
Food probe

Cook fish and meat with perfect precision: the time left display informs you when your food is ready.


Simple solutions for special cases
Special applications

Making the extraordinary easy: special programmes such as the drying programme produce outstanding results.


Makes food crispy
Crisp function

Perfect for pizza or chips: moisture is reduced for crispy results and perfect browning.


User convenience

One appliance, numerous possibilities
3 in 1

Choose between the microwave, oven and combination modes for perfect dishes from just one appliance.


Infinitely adjustable power ratings
Quick & Gentle

Combine the oven and microwave functions to suit your needs – saving time and ensuring perfect results.


Cleverly networked
Domestic appliance networking with Miele@home4,

Make your life smart: thanks to Miele@home, you can cleverly network your domestic appliances – for more options.


Select maximum power straight away
Quick microwave

Full power at your fingertips: fast microwave function selection via a separate sensor control.


Fresh popcorn at the press of a button
Popcorn button

Get that cinema feeling at home: our Popcorn button makes it easy to prepare microwave popcorn in next to no time.


Leave time management to your oven
Timer functions

Always on time: programme the start time, finish time and duration of the cooking process or the minute minder.


Easy to understand
MultiLingua

The controls can be shown in numerous languages so users can operate the appliance in a language they understand.


Gentle door movement
SoftOpen

Sophisticated and elegant: the door opens and closes with a gentle, quiet movement – right to the very end.


Downloads

Product sheet
PDF
Downloads
EU declaration of conformity
PDF
Downloads
Operating instructions/Installation instructions
PDF
Downloads
Warranty conditions
PDF
Downloads
rfa
ZIP
Downloads
fbx
ZIP
Downloads
rvt
ZIP
Downloads
ifc
ZIP
Downloads
dwg
ZIP
Downloads

Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts. In the event of queries, please ring us for some no-obligation advice!

https://media.miele.com/images/2000015/200001537/20000153709.png
Descriptions
side view H7000 BM, installation drawings, GB, AUS
22 mm - glass, 23.3 mm - metal
Downloads
https://media.miele.com/images/2000015/200001537/20000153716.png
Descriptions
built-in H7000 BM, installation drawing
Installation drawings
Downloads
https://media.miele.com/images/2000015/200001537/20000153720.png
Descriptions
built-in H7000 BM build-under, installation drawings
If the oven is to be installed under a hob, follow the instructions for installing the hob and the height of the hob.
Downloads
https://media.miele.com/images/2000015/200001537/20000153725.png
Descriptions
Installation H7000BM, installation drawings, GB, AUS
1) Mains connection cable, L=2000 mm, 2) No connection in this area, 3) Lüftungsausschnitt min. 150 cm²
Downloads
https://media.miele.com/images/2000015/200001537/20000153741.png
Descriptions
Installation H7000 BM XL, installation drawings
Installation drawings
Downloads
https://media.miele.com/images/2000016/200001697/20000169780.png
Descriptions
side view H7000 BM build-under, installation drawing, GB, AU
22 mm - glass, 23.3 mm - metal
Downloads
https://media.miele.com/images/2000017/200001710/20000171099.png
Descriptions
Side view Kombi BM XL, installation drawings
22 mm - glass, 23,3 mm - metal
Downloads
https://media.miele.com/images/2000017/200001711/20000171103.png
Descriptions
Installation Kombi BM XL, installation drawings
22 mm - glass, 23,3 mm - metal
Downloads
  • 1.A contribution to recycling costs (PRF) of 5 EUR for large domestic appliances and 10 EUR for American Side by Side refrigeration is Included in the retail price. No fees apply to Vacuum Cleaners, Accessories, Hobs, Microwaves, Hoods or Coffee Machines.
  • 2.Retail price includes 23% VAT.
  • 3.Patent: EP 1 345 474 B1
  • 4.Additional digital offer from Miele & Cie. KG. All smart applications are made possible with the Miele@home system. The range of functions can vary depending on the model and the country.

We reserve the right to make technical changes; we assume no liability for the accuracy of the information provided.
