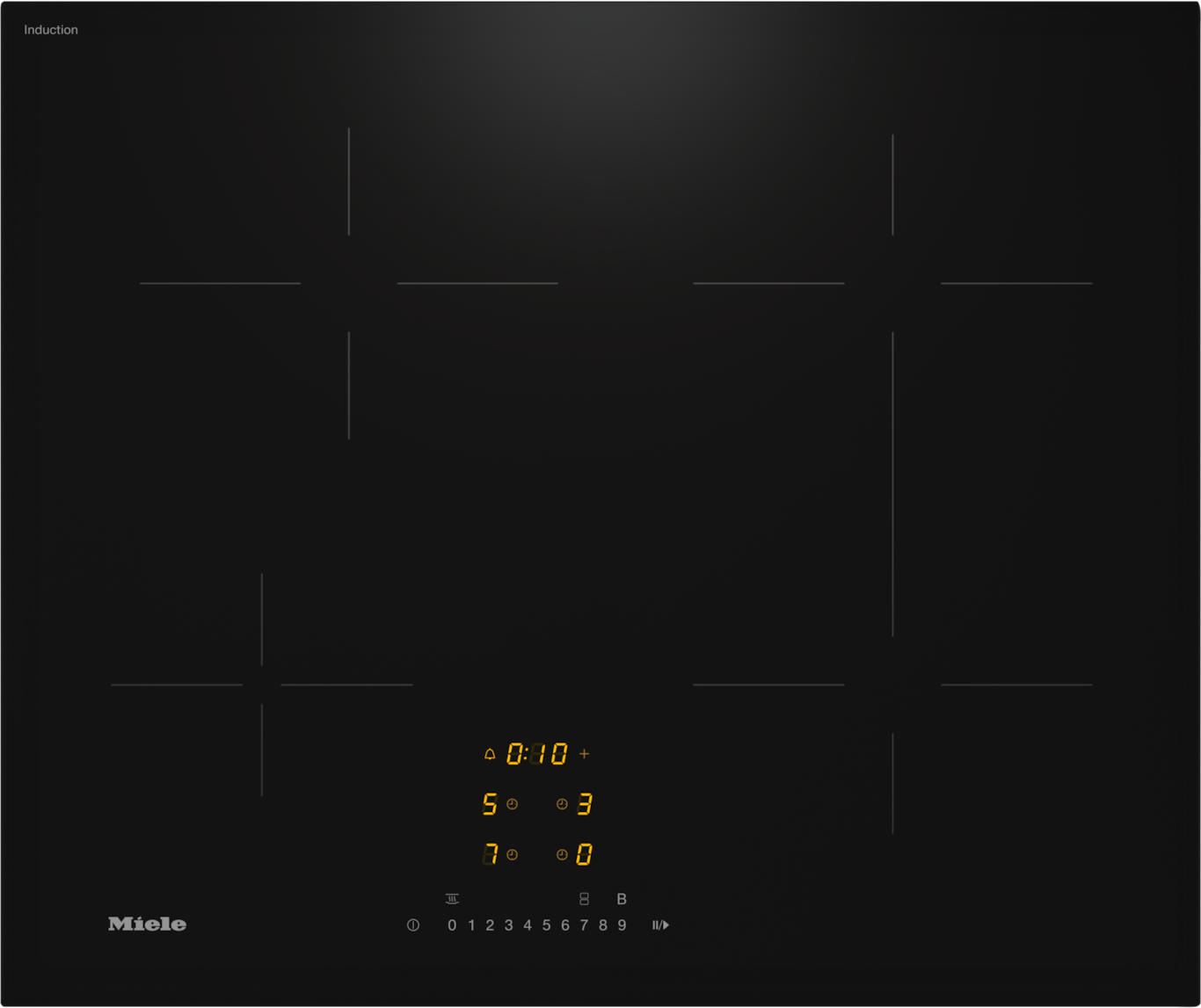

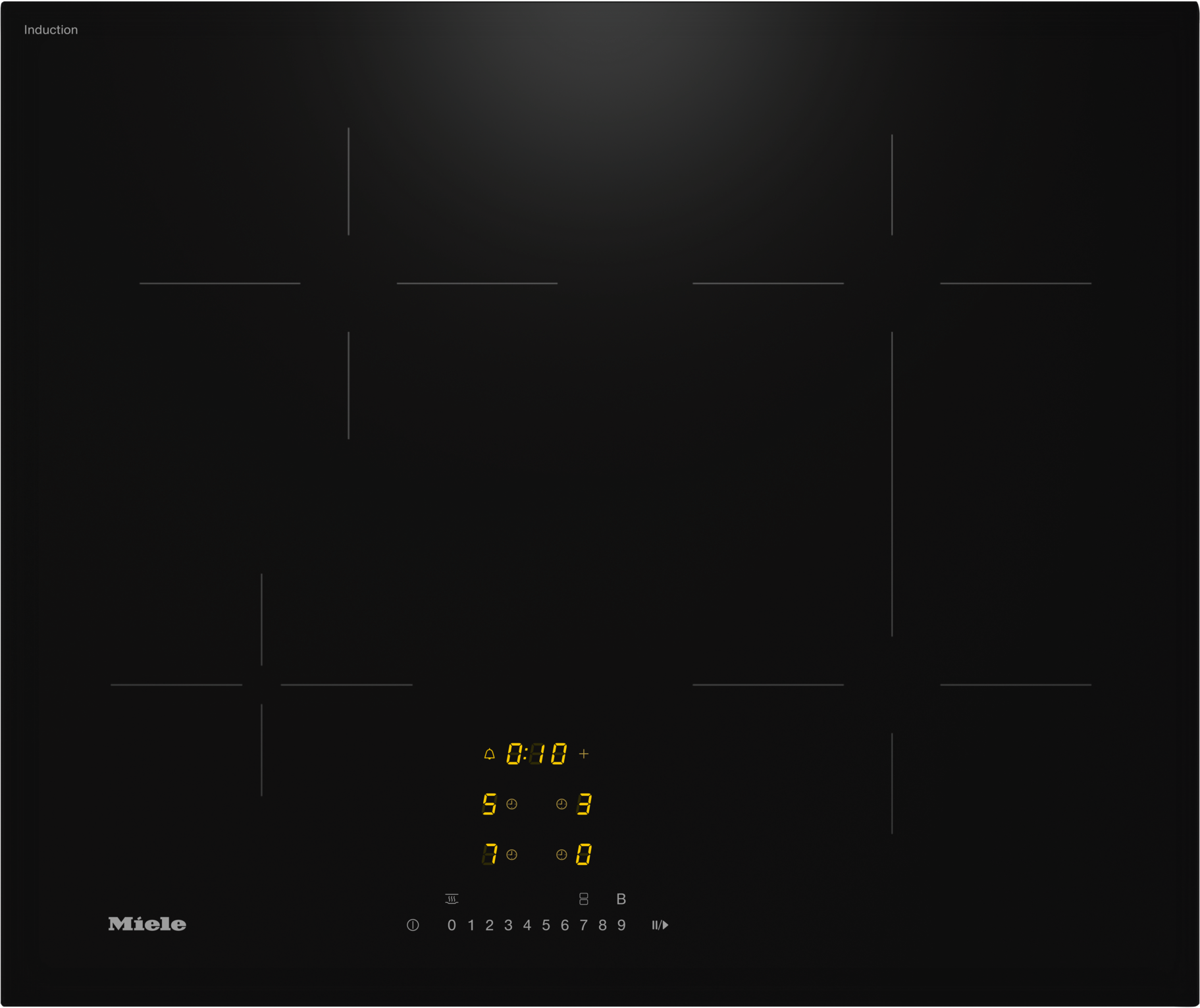

Induction hob with onset controls
KM 7363 FL
with flex cooking area for large cookware
sale price€1,149.99
A contribution to recycling costs (PRF) of 5 EUR for large domestic appliances and 10 EUR for American Side by Side refrigeration is Included in the retail price. No fees apply to Vacuum Cleaners, Accessories, Hobs, Microwaves, Hoods or Coffee Machines.
Retail price includes 23% VAT.
Product details
- Quick selection via numerical keybank – ComfortSelect
- 4 cooking zones incl. 1 flex cooking area
- A width of 620 mm for surface-mounted or flush-fit installation
- Communication with the hood – automaticCon@ctivityfunction
- Convenient use of large cookware items thanks to combinableFlex cooking zones [object Object] [object Object]
Heating typeInduction
Independent of cooker
Elegant glass ceramic surface
Ceramic surface colourBlack
Flush
Surface-mounted installation
Number of cooking zones4
Number of cooking areas1
Maximum number of pans4
No.2
TypeFlex cooking zone
Size in mmØ 110-210
Max. rating in W2100
Max. Booster power rating in W3000
Positionfront left
TypeDual-circuit ring
Size in mmØ 90-160
Max. rating in W1350
Max. Booster power rating in W1850
Positionrear left
TypeDual-circuit ring
Size in mmØ 110-220
Max. rating in W2300
Max. Booster power rating in W3000
Positionright
TypeFlex cooking zone
Size in mm210x400
Max. rating in W3000
Max. Booster power rating in W3650
Networking with Miele@home
Automatic function Con@ctivity
Operation via sensor controlsComfortSelect
Display colourYellow
Permanent pan recognition
Pan and pan size recognition
Stop & Go function
Recall function
Minute minder
Safety switch-off
Auto heat-up
Keeping warm
Individual setting options (e.g. buzzers)
Residual heat utilisation
Power rating in off mode in W0.50
Power rating in standby mode in W1
Power rating in networked standby in W2
Time until automatic switch to off mode in min20
Time until automatic switch to standby in min20
Time until automatic switch to networked standby in min20
Easy to clean ceramic glass
Safety switch-off
Lock function
System lock
Integrated cooling fan
Overheating protection
Residual heat indicator
Dimensions in mm (width)620
Dimensions in mm (height)53
Casing height incl. connection box in mm53
Dimensions in mm (depth)520
Cutout dimensions in mm (width) with surface-mounted installation600
Cutout dimensions in mm (depth) with surface-mounted installation490
Internal cutout dimensions in mm (width) with flush installation600
Internal cutout dimensions in mm (depth) with flush installation500
External cutout dimensions in mm (width) with flush installation624
External cutout dimensions in mm (depth) with flush installation524
Weight in kg9
Total rated load in kW7.30
Voltage in V230
Frequency in Hz50.00-60.00
Length of supply lead in m1.40
Mains cable
EAN4002516732808
Mains cable
Smart control
Con@ctivity
Innovative convenience: the cooker hood reacts automatically to settings on the hob.
For greater safety and security
Safety functions
The safety functions prevent any unpleasant surprises – even if your mind is on other things.
Smart control
Con@ctivity
Innovative convenience: the cooker hood reacts automatically to settings on the hob.
Added convenience
Convenient additional functions
Numerous additional functions such as Stop & Go and the timer make life easier in the kitchen.
Set down your pan and get cooking
Permanent pan detection
Automatic control element activation: when the hob is turned on, pans which are already in place are detected.
Matching products and accessories
Downloads
Product fiche
DownloadsPDF
Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts. In the event of queries, please ring us for some no-obligation advice!
Descriptions
KM7363FL surface-mounted (*Fußnote) (Installation drawing)
1) front, 2) Mains connection box, The mains connection cable (L = 1440 mm) is enclosed loose
Descriptions
KM7363FL flush (*Fußnote) (Installation drawing)
1) front, 2) Mains connection box, The mains connection cable (L = 1440 mm) is enclosed loosely, 3) Step milling natural stone worktop, 4) Wooden strip 12 mm (no supplied accessories) - 1.A contribution to recycling costs (PRF) of 5 EUR for large domestic appliances and 10 EUR for American Side by Side refrigeration is Included in the retail price. No fees apply to Vacuum Cleaners, Accessories, Hobs, Microwaves, Hoods or Coffee Machines.
- 2.Retail price includes 23% VAT.
We reserve the right to make technical changes; we assume no liability for the accuracy of the information provided.
