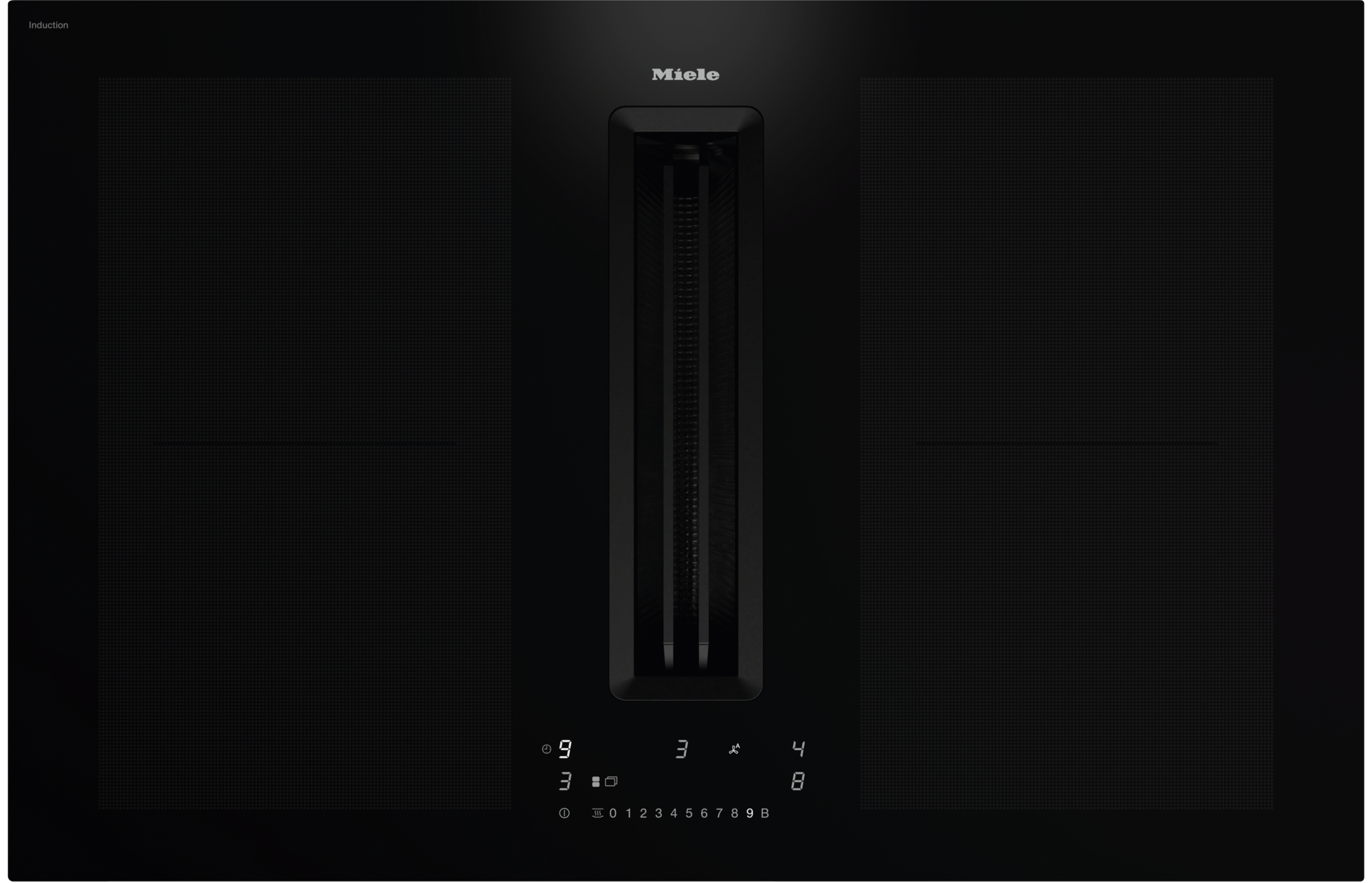

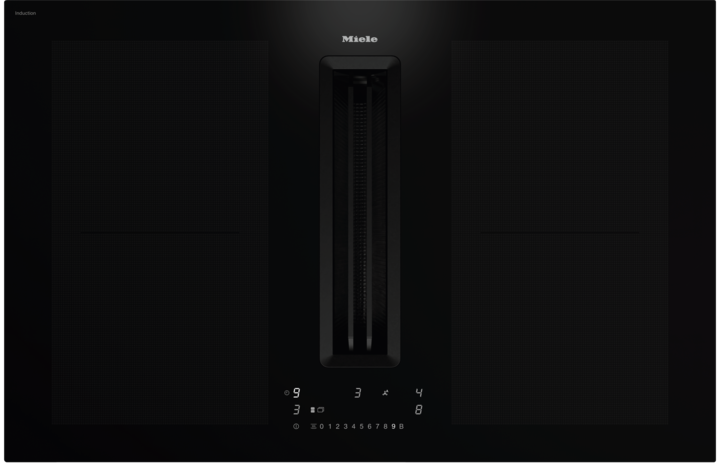

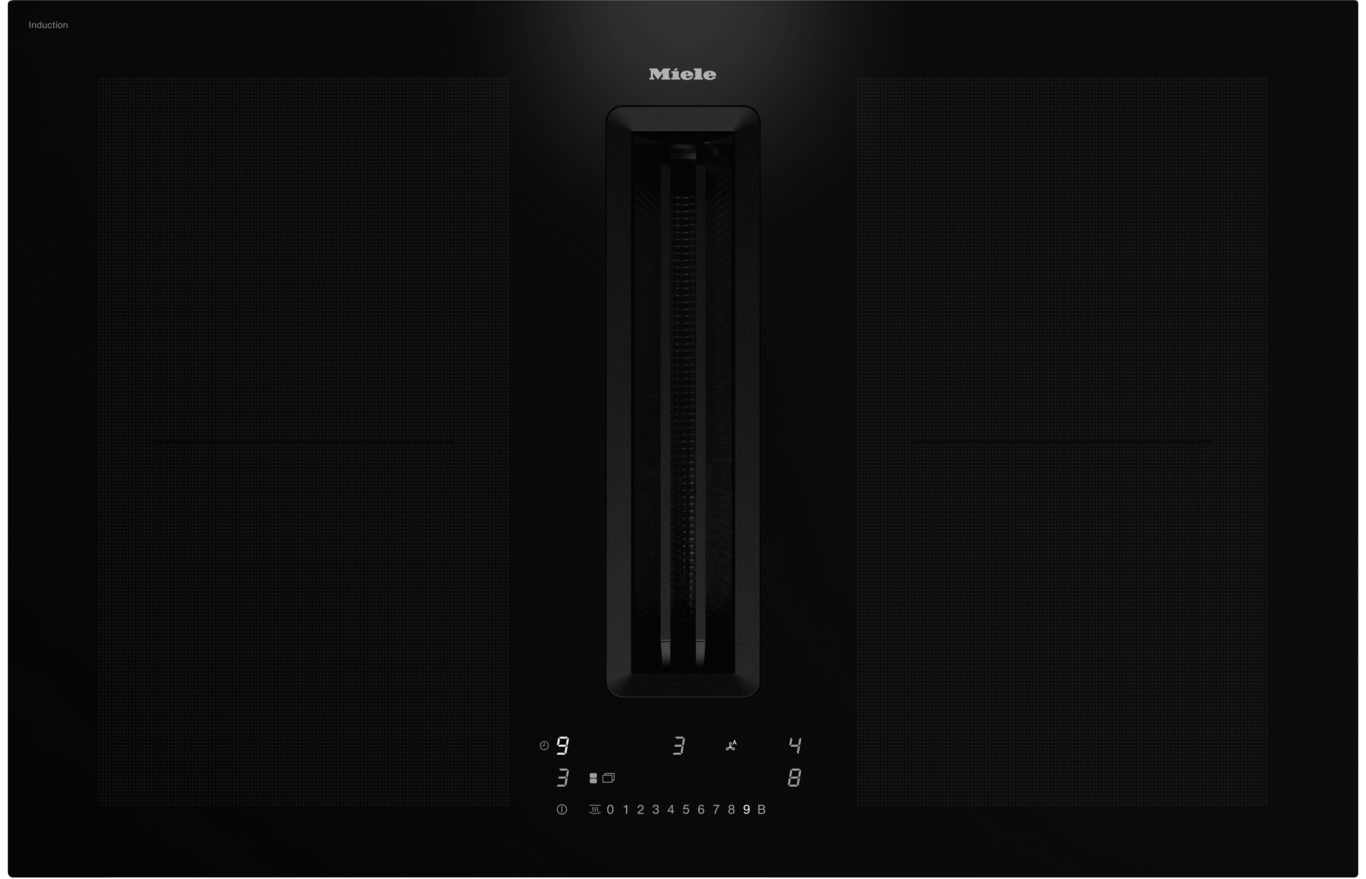

Induction hob with integrated vapour extraction
KMDA 7676 FL-U BlackPerfection
with two extra large PowerFlex XL cooking areas for recirculation mode
sale price€3,799.99
A contribution to recycling costs (PRF) of 5 EUR for large domestic appliances and 10 EUR for American Side by Side refrigeration is Included in the retail price. No fees apply to Vacuum Cleaners, Accessories, Hobs, Microwaves, Hoods or Coffee Machines.
Retail price includes 23% VAT.
Product details
- The quietest TwoInOne from Miele –Silence motor
- Flexible installation – Plug&Play or ducted recirculation mode
- Ample space – 4 large cooking zones incl.2 PowerFlex XL areas
- Automatic fan power regulation –Con@ctivity
- All-black design ensures an elegant appearance
Heating typeInduction
Induction hob with integrated vapour extraction
Recirculation air guided with optional accessoriesDFK-xxxx
Unguided recirculation air (Plug&Play installation)
Elegant glass ceramic surface
Ceramic surface colourBlack
Flush
Frameless – surface-mounted
Flush fit extractor
Colour of cover grilleBlack
Grease filter colourBlack
Number of cooking zones4
Number of cooking areas2
Maximum number of pans4
No.4
TypePowerFlex XL cooking area
Diameter in mmØ 150 – 230
Rating in W2100
Booster in W3000
TwinBooster in W3650
PositionLeft
TypePowerFlex XL cooking area
Size in mm230x460
Max. rating in W3400
Max. Booster power rating in W4800
Max. TwinBooster power rating in W7300
Positionright
TypePowerFlex XL cooking area
Size in mm230x460
Max. rating in W3400
Max. Booster power rating in W4800
Max. TwinBooster power rating in W7300
Operation via sensor controlsComfortSelect White
Miele@home
Display colourWhite
Automatic function Con@ctivity
Digital power level display
Permanent pan recognition
Keeping warm
Stop & Go function
Recall function
Minute minder
Safety switch-off
Auto heat-up
Individual setting options (e.g. buzzers)
Run-on time 5/15 min.
Grease filter saturation indicator
Active charcoal filter saturation indicator
ECO motor
Silence motor
Easy to clean ceramic glass
Wipe protection
Easy-to-clean canopy interior – CleanCover
Air throughput at min. level (m³/h) according to EN 61591160
Air throughput at max. level (m³/h) according to EN 61591465
Air throughput in Intensive level (m³/h) according to EN 61591510
Sound power at min. level (dB(A) re 1 pW) according to EN 60704-347
Sound power at max. level (dB(A) re 1 pW) according to EN 60704-370
Sound pressure at min. level (dB(A) re 20 µPa) according to EN 60704-2-1334
Sound pressure at max. level (dB(A) re 20 µPa) according to EN 60704-2-1355
Noise pressure level in Intensive level (dB(A) re 20 µPa) according to EN 60704-2-1357
Safety switch-off
Lock function
System lock
Integrated cooling fan
Overheating protection
Residual heat indicator
Dimensions (W x D) in mm800 x 238 x 520
Dimensions in mm (width)800
Dimensions in mm (height)238
Dimensions in mm (depth)520
Casing height incl. connection box in mm238
Cutout dimensions in mm (width) with surface-mounted installation780
Cutout dimensions in mm (depth) with surface-mounted installation500
Internal cutout dimensions in mm (width) with flush installation780
Internal cutout dimensions in mm (depth) with flush installation500
External cutout dimensions in mm (width) with flush installation804
External cutout dimensions in mm (depth) with flush installation524
Weight in kg20
Total rated load in kW7.50
Voltage in V230
Frequency in Hz50.00-60.00
Length of supply lead in m1.40
Mains cableYes

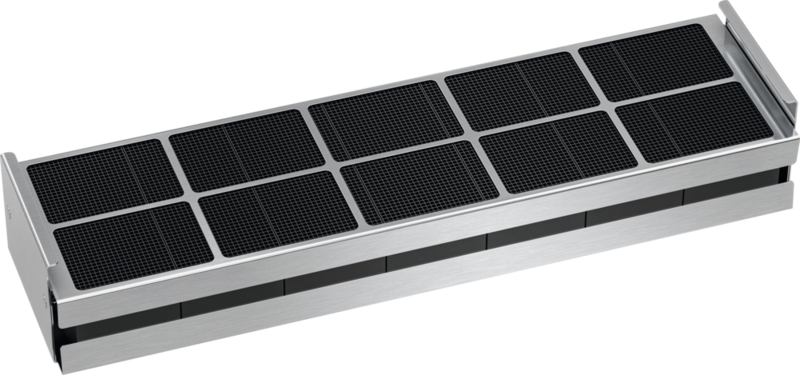

Active charcoal filter for recirculation modeYes
Plug&Play adapter
EAN4002516777809
Mains cable
Active charcoal filter for recirculation mode
Plug&Play adapter
State-of-the-art
Con@ctivity
Innovative convenience: the cooker hood reacts automatically to settings on the hob.
Ideal for large pots
PowerFlex XL
Ample space: as the entire depth of the hob can be used, large cookware can be positioned perfectly.
Power function for fast heat generation
TwinBooster
Unique level of flexibility: Induction output can be individually distributed or used for one single zone.

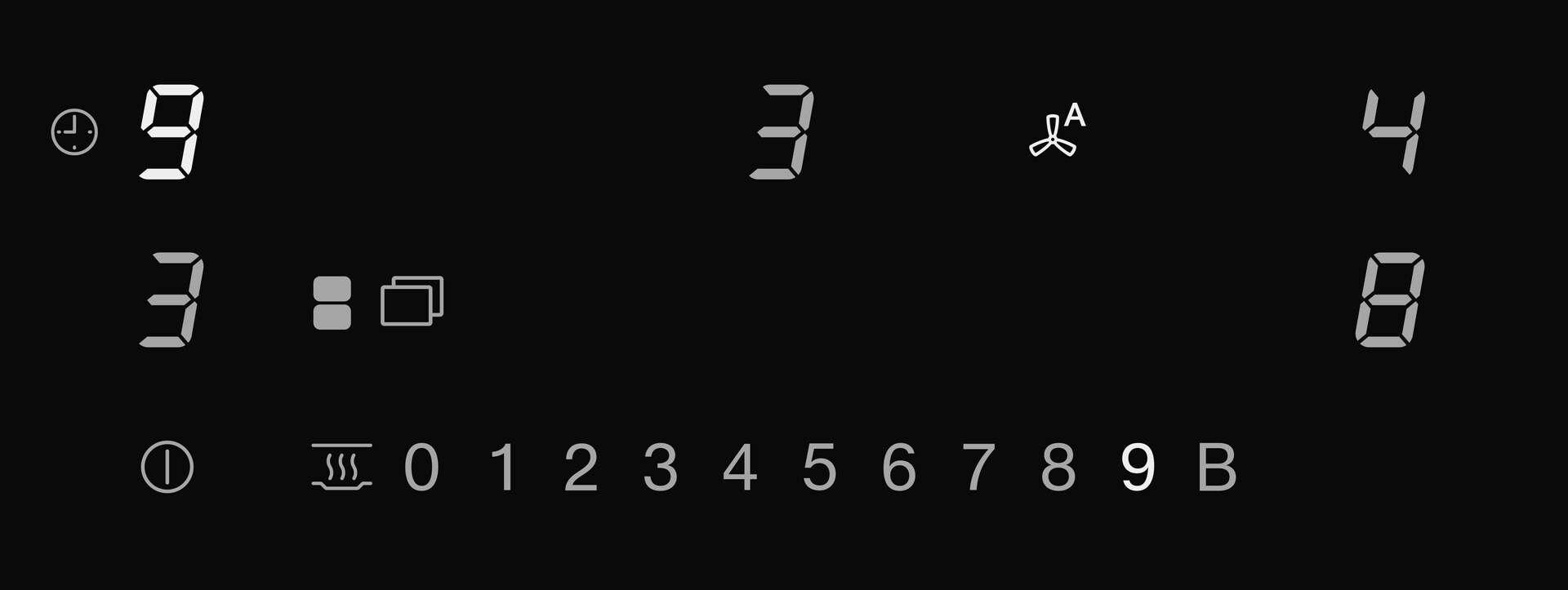

Easy and elegant operation: white numerical display
ComfortSelect White
Elegant and convenient: conveniently control your Miele hob while enjoying its premium appearance.
The quietest TwoInOne from Miele
Silence motor
Extra-quiet: developed by Miele, this motor is 25 % quieter than its predecessor at higher air throughput levels.
Safety for all
Safety functions
Our safety functions prevent any unwanted surprises.
The heart of every cooker hood
ECO motor
Powerful and quiet: The DC motor saves up to 70% energy compared with conventional motors.
Convenience and safety in detail
Miele CleanCover
Protection and easy cleaning: the smooth concealed surface prevents contact with electrical components and motor.
Ideal for large pots
PowerFlex XL
Ample space: as the entire depth of the hob can be used, large cookware can be positioned perfectly.
Convenient additional functions
Convenient additional functions
Numerous additional functions such as Stop & Go and the timer make life easier in the kitchen.
Vapour extraction at its best
Flush-fit extractor
Flush and elegant: thanks to the discreet design, you can enjoy maximum design freedom in your kitchen.
The quietest TwoInOne from Miele
Silence motor
Extra-quiet: developed by Miele, this motor is 25 % quieter than its predecessor at higher air throughput levels.
State-of-the-art
Con@ctivity
Innovative convenience: the cooker hood reacts automatically to settings on the hob.
Power function for fast heat generation
TwinBooster
Unique level of flexibility: Induction output can be individually distributed or used for one single zone.
Easy and elegant operation: white numerical display
ComfortSelect White
Elegant and convenient: conveniently control your Miele hob while enjoying its premium appearance.
Best use of energy
Permanent pot recognition
Autom. activation of numerical keybank: When turned on, crockery that has been placed is recognised immediately.
Matching products and accessories
Downloads
Product fiche
DownloadsPDF
Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts. In the event of queries, please ring us for some no-obligation advice!
Descriptions

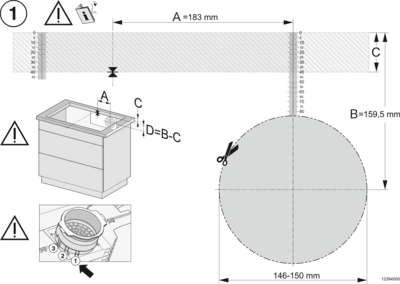

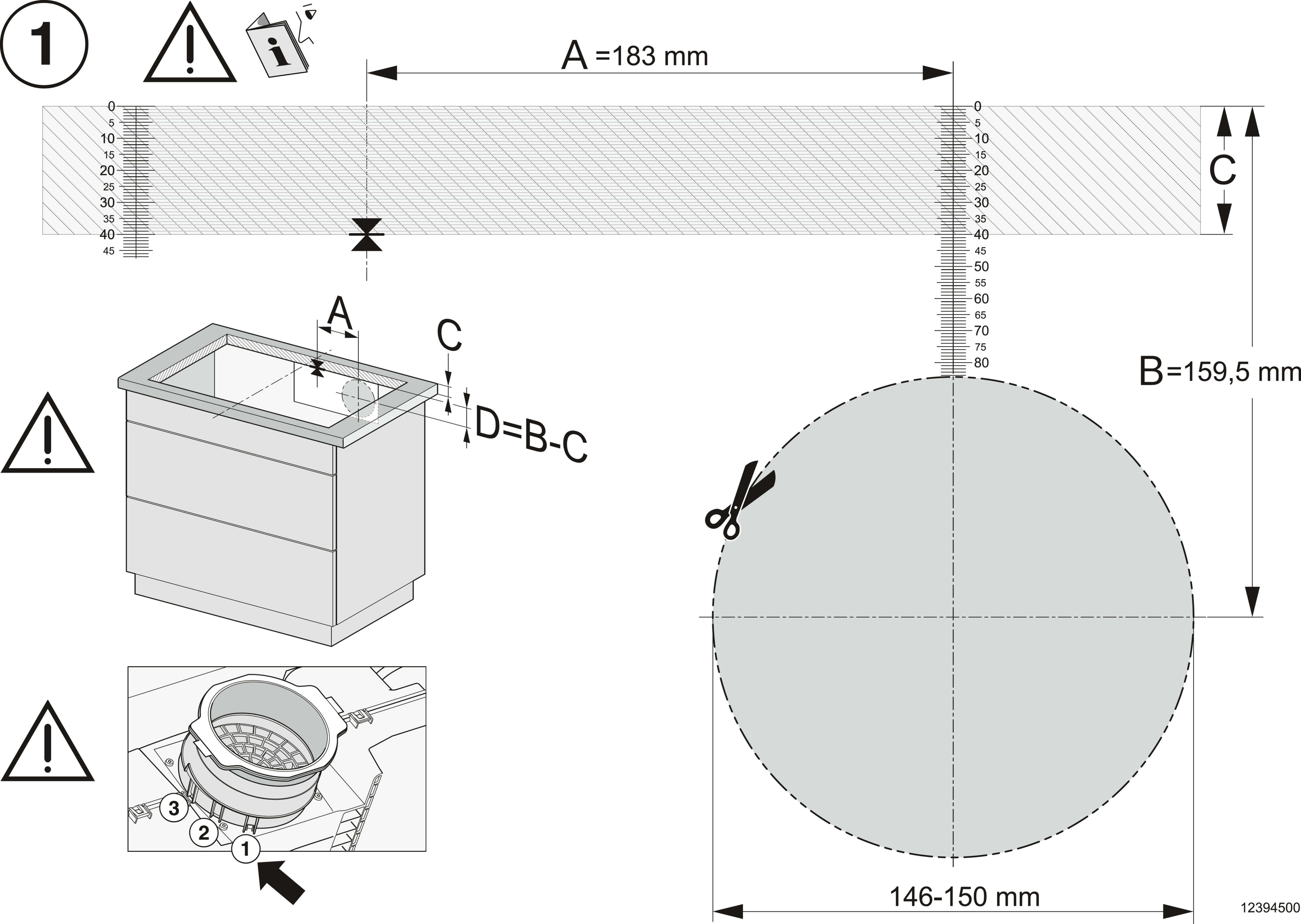

KMDA7676FL-U BlackPerfection, KMDA7876FL-U - flush installation, drilling template, Installation depth 23,8 cm
Installation drawings
Descriptions

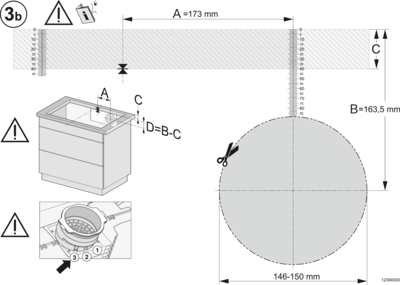

KMDA7676FL-U, KMDA7876FL-U - surface installation, drilling template, 23,8 cm, Installation drawing
Installation drawings
Descriptions
KMDA7676FL-U, KMDA7876FL-U - surface installation, 24,8 cm, drilling template, Installation drawing
Installation drawings
Descriptions

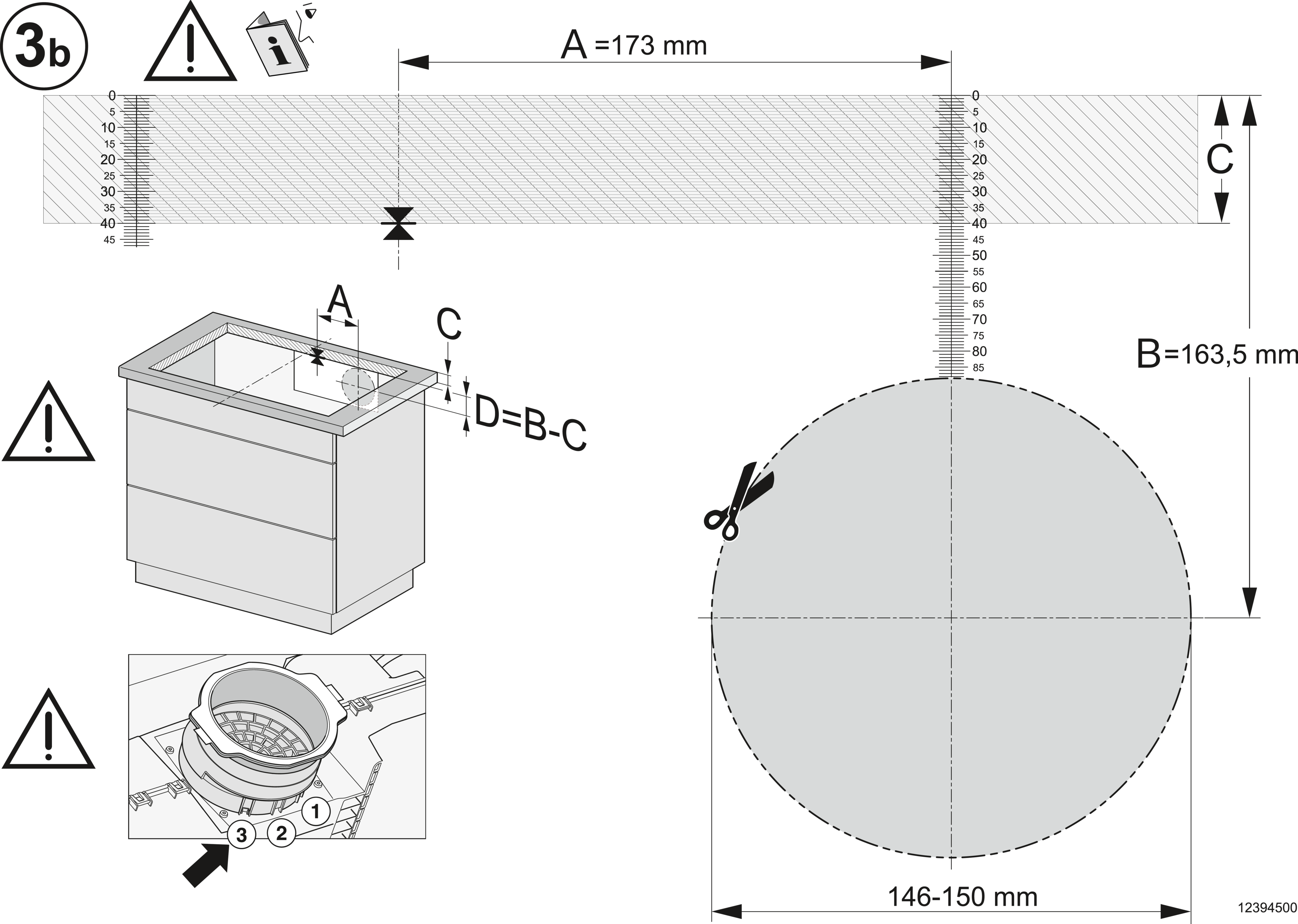

KMDA7676FL-U, KMDA7876FL-U - flush installation, drilling template, Installation depth 24,8 cm, Installation drawing
Installation drawings
Descriptions

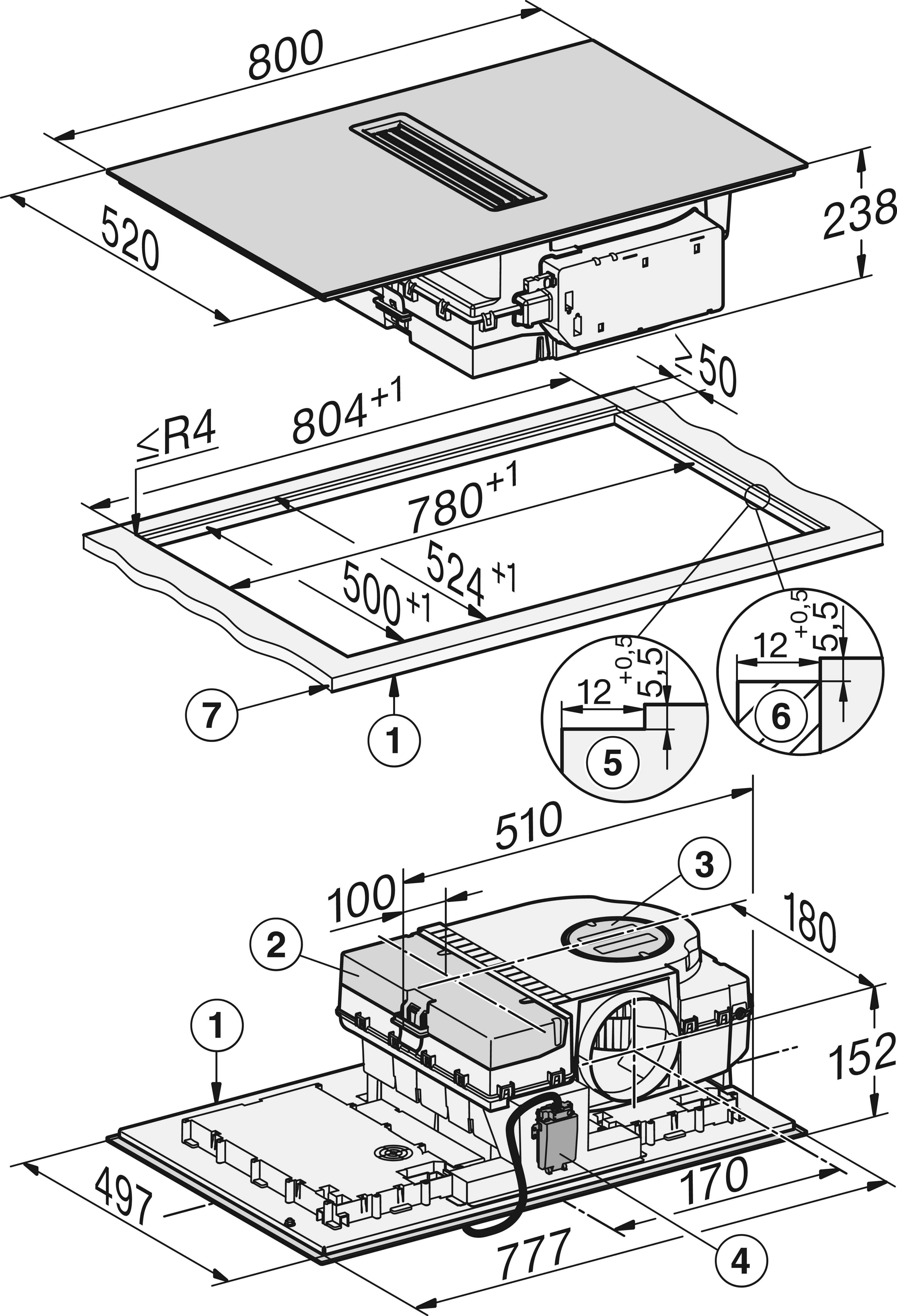

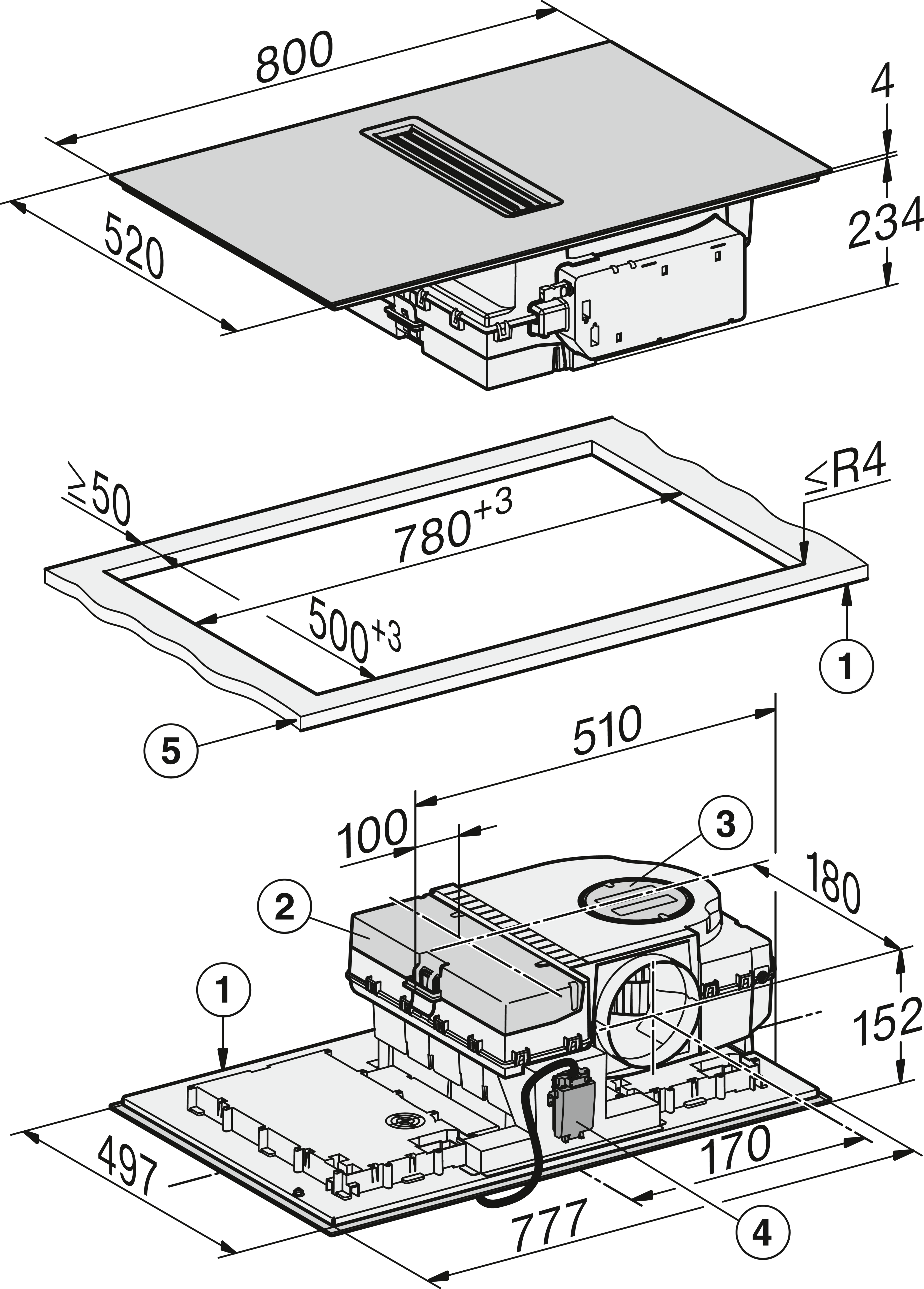

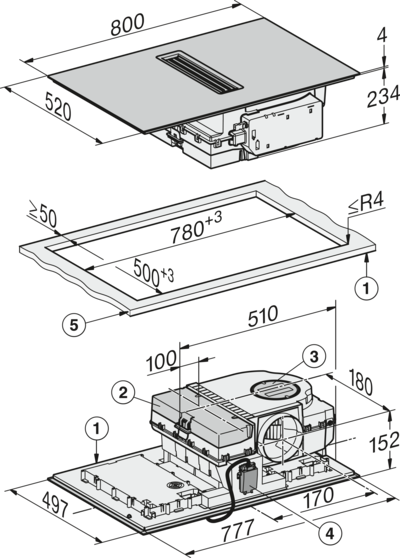

KMDA7676FL, KMDA7876FL - Installation drawing
1) Front, 2) Removable drip tray, 3) Cleaning flap, 4) Mains connection box with mains connection cable, L = 1600 mm, 5) Worktop thickness, Exhaust air and guided recirculation mode: ≥10 mm, Plug&Play operation: ≥10 mm - ≤40 mm
Descriptions
KMDA7676FL, KMDA7876FL - flush - Installation drawing
1) Front, 2) removable drip tray, 3) cleaning flap, 4) Mains connection box with mains connection cable, L = 1600 mm, 5) Step milling natural stone worktop, 6) Wooden strip 12 mm (not included in delivery), 7) Worktop thickness, Exhaust air and guided recirculation mode: ≥10 mm, Plug&play operation: ≥10 mm - ≤40 mm
Descriptions
KMDA7676FL, KMDA7876FL - Side view lying on top - Installation drawing
①The rear wall of the cabinet must be removable for servicing. A minimum distance of 110 mm must be maintained for routing the exhaust air duct between the cabinet wall and an adjacent room wall or furniture., ②The removable collection tray and the cleaning flap must be accessible after installation.
Descriptions
KMDA7676FL, KMDA7876FL - Side view lying on top+X - Installation drawing
①The rear wall of the cabinet must be removable for servicing. A minimum distance of 110 mm must be maintained for routing the exhaust air duct between the cabinet wall and an adjacent room wall or furniture., ② The removable collection tray and the cleaning flap must be accessible after installation., , x Dimension by which the worktop depth is greater than 600 mm.
Descriptions
KMDA7676FL, KMDA7876FL - Side view flush - Installation drawing
①The rear wall of the cabinet must be removable for servicing. A minimum distance of 110 mm must be maintained for routing the exhaust air duct between the cabinet wall and an adjacent room wall or furniture., ②The removable collection tray and the cleaning flap must be accessible after installation.
Descriptions
KMDA7676FL, KMDA7876FL - Side view flush+X - Installation drawing
①The rear wall of the cabinet must be removable for servicing. A minimum distance of 110 mm must be maintained for routing the exhaust air duct between the cabinet wall and an adjacent room wall or furniture., ②The removable collection tray and the cleaning flap must be accessible after installation., , x Dimension by which the worktop depth is greater than 600 mm.
Descriptions
KMDA7676FL, KMDA7876FL - Side view lying on top, Plug&Play - Installation drawing
①A minimum distance of 25 mm must be maintained for routing the exhaust air duct between the cabinet wall and an adjacent room wall or furniture., ②The removable collection tray and the cleaning flap must be accessible after installation., ③The cross-section of the vent opening must be at least 425 cm².
Descriptions
KMDA7676FL, KMDA7876FL - Side view lying on top+X, Plug&Play - Installation drawing
①A minimum distance of 25 mm must be maintained for routing the exhaust air duct between the carcase wall and an adjacent room wall or furniture. If the carcase rear wall is <gt/> 555 mm from the worktop front, the Plug&Play adapter must be extended with a supplementary set from Miele., ②The removable drip tray and the cleaning flap must be accessible after installation., ③The cross-section of the vent opening must be at least 425 cm²., , x Dimension by which the worktop depth is greater than 600 mm.
Descriptions
KMDA7676FL, KMDA7876FL - Side view flush, Plug&Play - Installation drawing
①A minimum distance of 25 mm must be maintained for routing the exhaust air duct between the cabinet wall and an adjacent room wall or furniture., ②The removable collection tray and the cleaning flap must be accessible after installation., ③The cross-section of the ventilation opening must be at least 425 cm².
Descriptions
KMDA7676FL, KMDA7876FL - Side view flush+X, Plug&Play - Installation drawing
①A minimum distance of 25 mm must be maintained for routing the exhaust air duct between the carcase wall and an adjacent room wall or furniture. If the carcase rear wall is <gt/> 555 mm from the worktop front, the Plug&Play adapter must be extended with a supplementary set from Miele., ②The removable drip tray and the cleaning flap must be accessible after installation., ③The cross-section of the vent opening must be at least 425 cm²., , x Dimension by which the worktop depth is greater than 600 mm.
Descriptions
KMDA7676FL, KMDA7876FL - Installation variant 1 Basis -drawing
1) DFK-AK 90, 2) DFK-R 1000
Descriptions
KMDA7676FL, KMDA7876FL - Installation variant 2 Basis - drawing
1) DFK-AK 90, 2) DFK-R 1000, 3) DFK-BV 90
Descriptions
KMDA7676FL, KMDA7876FL -Installation variant 3 Basis - drawing
1) DFK-AK 90, 2) DFK-R 1000, 3) DFK-BV 90, 4) DFK-BH 90
Descriptions
KMDA7676FL, KMDA7876FL - Installation variant 4 Circulating air - drawing
1) DFK-AK 90, 2) DFK-R 1000, 3) DFK-BV 90, 4) DFK-BH 90, 5) DFK-V, 6) DUU 1500, , The minimum width of the cabinet is 1350 mm.
Descriptions
KMDA7676FL, KMDA7876FL - Installation variant 5 Circulating air - drawing
1) DFK-AK 90, 2) DFK-R 1000, 3) DFK-BV 90, 4) DFK-BH 90, 5) DFK-V, 6) DUU 1500, , The minimum depth of the cabinet is 935 mm.
Descriptions
KMDA7676FL, KMDA7876FL - Installation variant 6 Circulating air - drawing
1) DFK-AK 90, 2) DFK-R 1000, 3) DFK-BV 90, 4) DFK-V, 5) DUU 1500, , The minimum depth of the cabinet is 935 mm.
Descriptions
KMDA7676FL, KMDA7876FL - Installation variant 13 Circulating air - drawing
1) DFK-AK 90, 2) DFK-R 1000, 3) DFK-BV 90, 4) DFK-BH 90, 5) DFK-V, 6) DUU 1500, , The minimum width of the cabinet is 1125 mm.
Descriptions
KMDA7676FL, KMDA7876FL - Installation variant 14 Circulating air - drawing
1) DFK-AK 90, 2) DFK-R 1000, 3) DFK-BV 90, 4) DFK-BH 90, 5) DFK-V, 6) DUU 1500, , The minimum width of the cabinet is 900 mm.
Descriptions

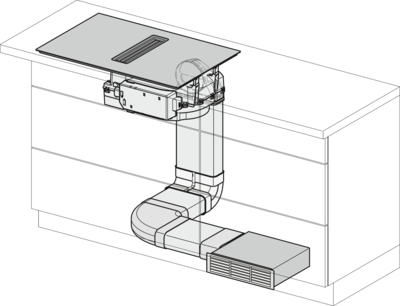

KMDA7676FL/FR, KMDA7876FL/FR, Air circulation (Installation drawing)
Installation drawings
Descriptions
KMDA7676FL/FR, KMDA7876FL/FR, Plug&Play (Installation drawing)
