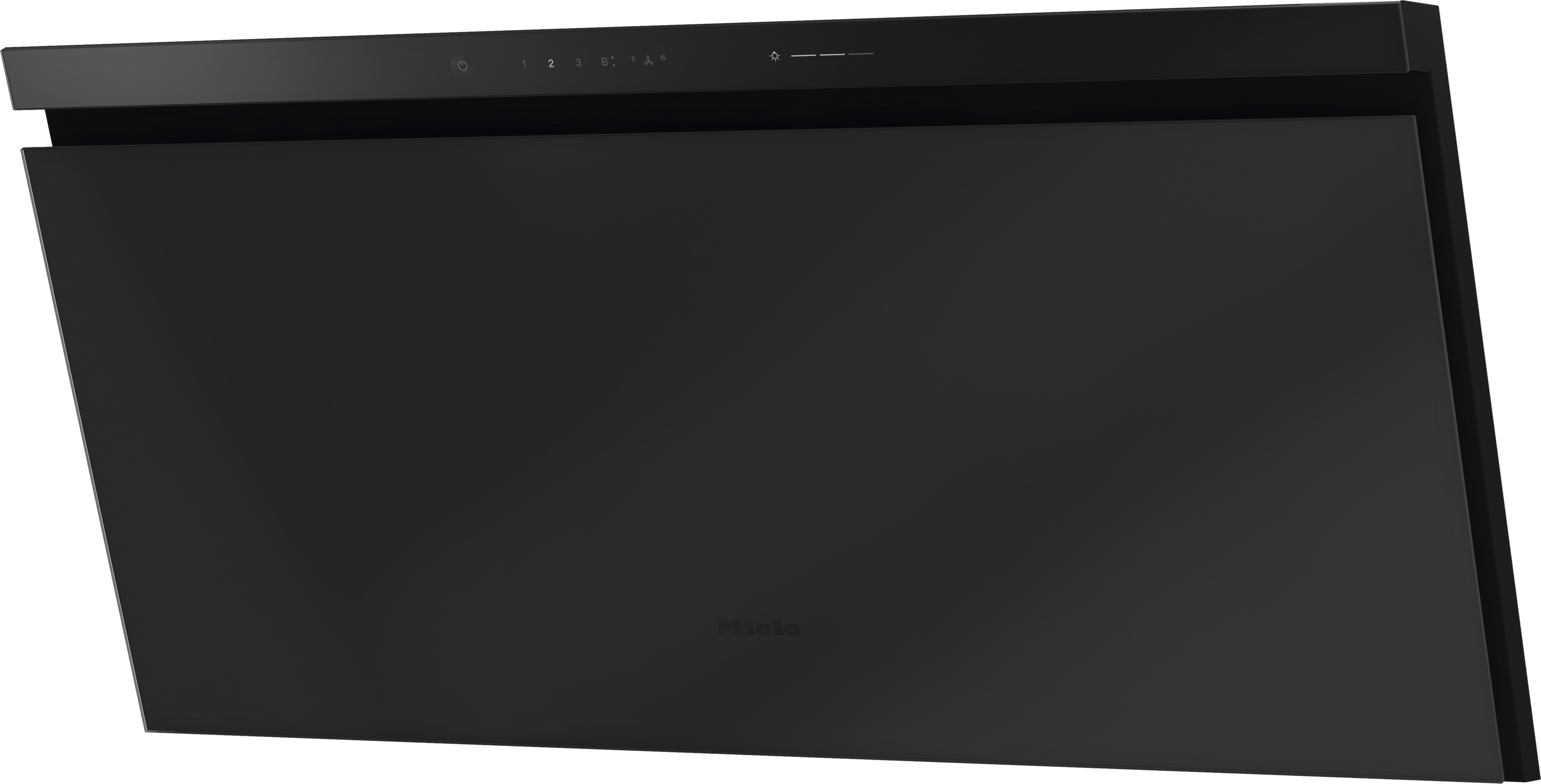

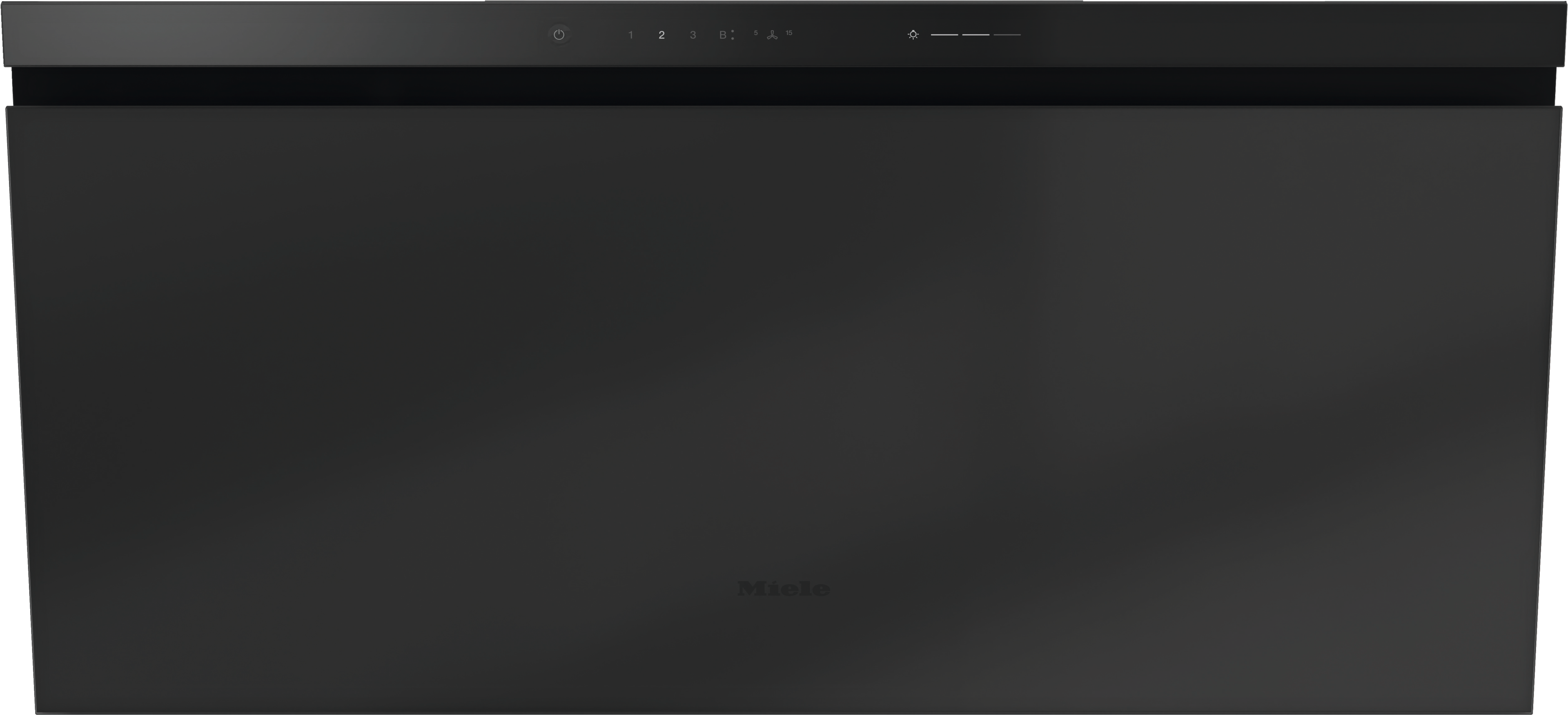

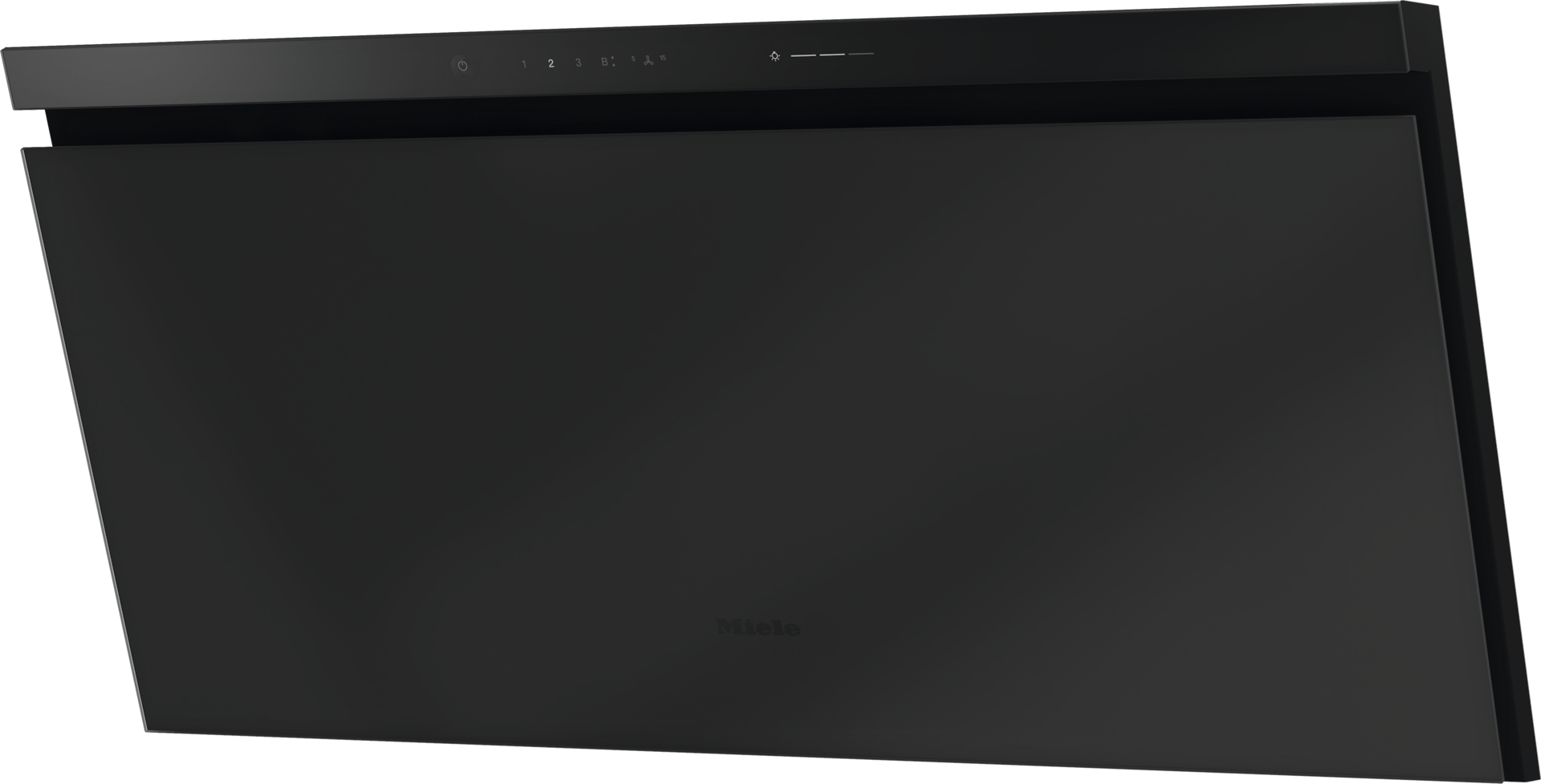

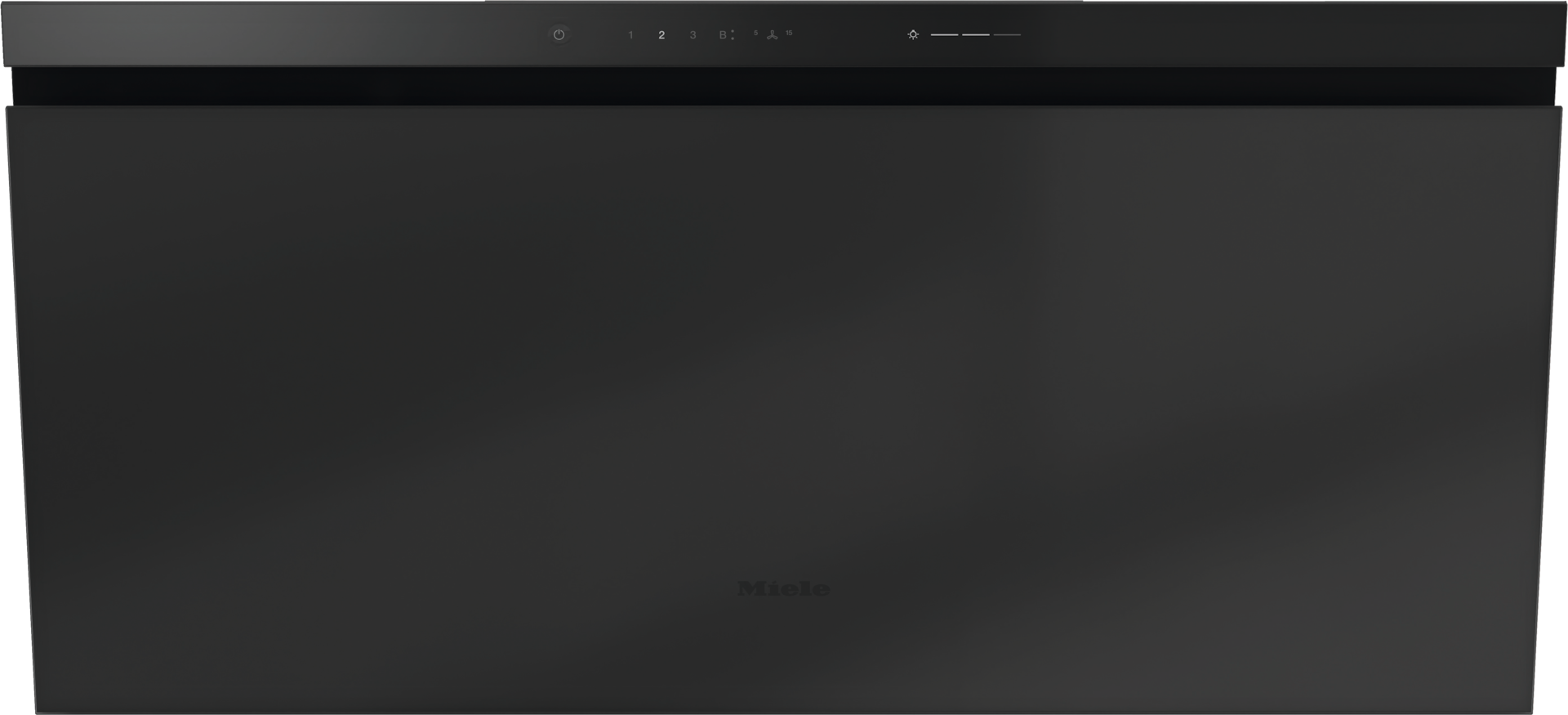

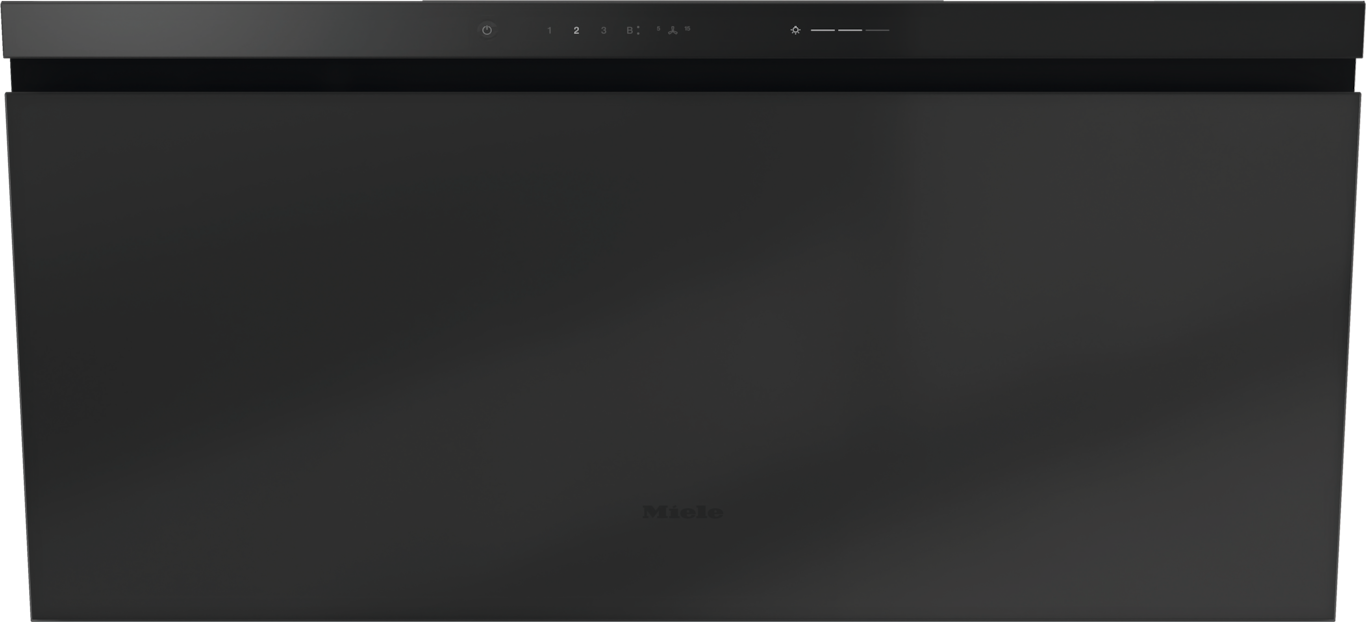

Wall mounted cooker hood

DAH 4980 Sienna Obsidian black matt

With particularly low noise levels and elegant matt black glass panel


sale price€1,999.99
A contribution to recycling costs (PRF) of 5 EUR for large domestic appliances and 10 EUR for American Side by Side refrigeration is Included in the retail price. No fees apply to Vacuum Cleaners, Accessories, Hobs, Microwaves, Hoods or Coffee Machines.
Retail price includes 23% VAT.



Product details

  • ECO motor – the quietest Miele angled cooker hood with only 50 dB3,
  • Networking with Con@ctivity andMiele@home
  • Efficient filtration-10-ply stainless-steel grease filter
  • Lots of headroom – with front panel, 898 mm wide
  • Perfect match – glass panel and canopy in the same colour

Product data sheet

Wall mounted cooker hood
Type of air guideCan be retrofitted
Active charcoal filter (order separately)DKF 29 charcoal filter
ColourObsidian black matt
Edge extraction
Miele@home
Automatic function Con@ctivity
Electronic controls
SmartControl White
ControlsSmartControl White
ON/OFF switch
Power levels (number without Booster level)3
Booster levels2
Run-on time 5/15 min.
Grease filter saturation indicator
Grease filter saturation indicator
Active charcoal filter saturation indicator
Silence package
Easy-to-clean canopy interior – CleanCover

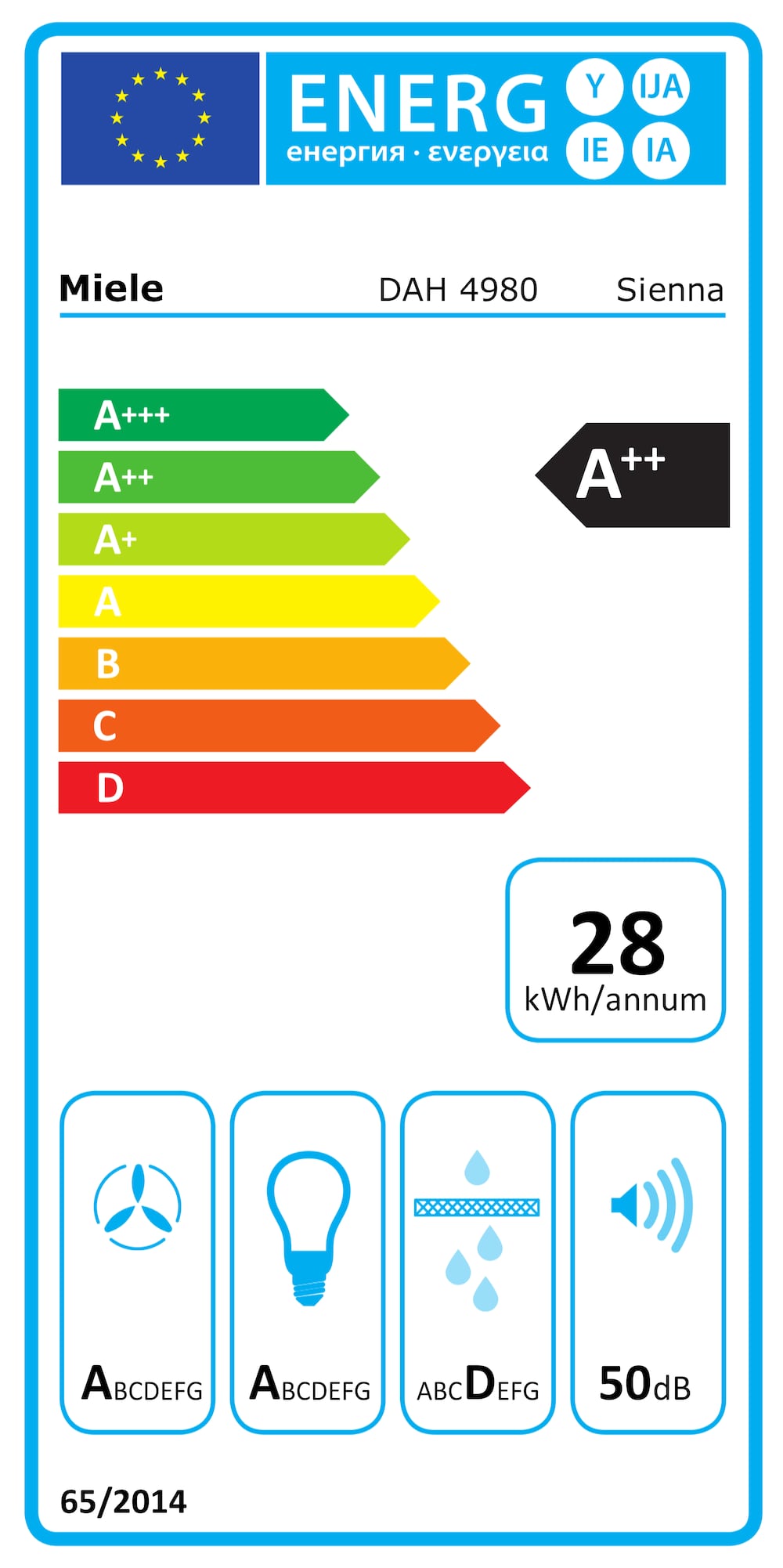

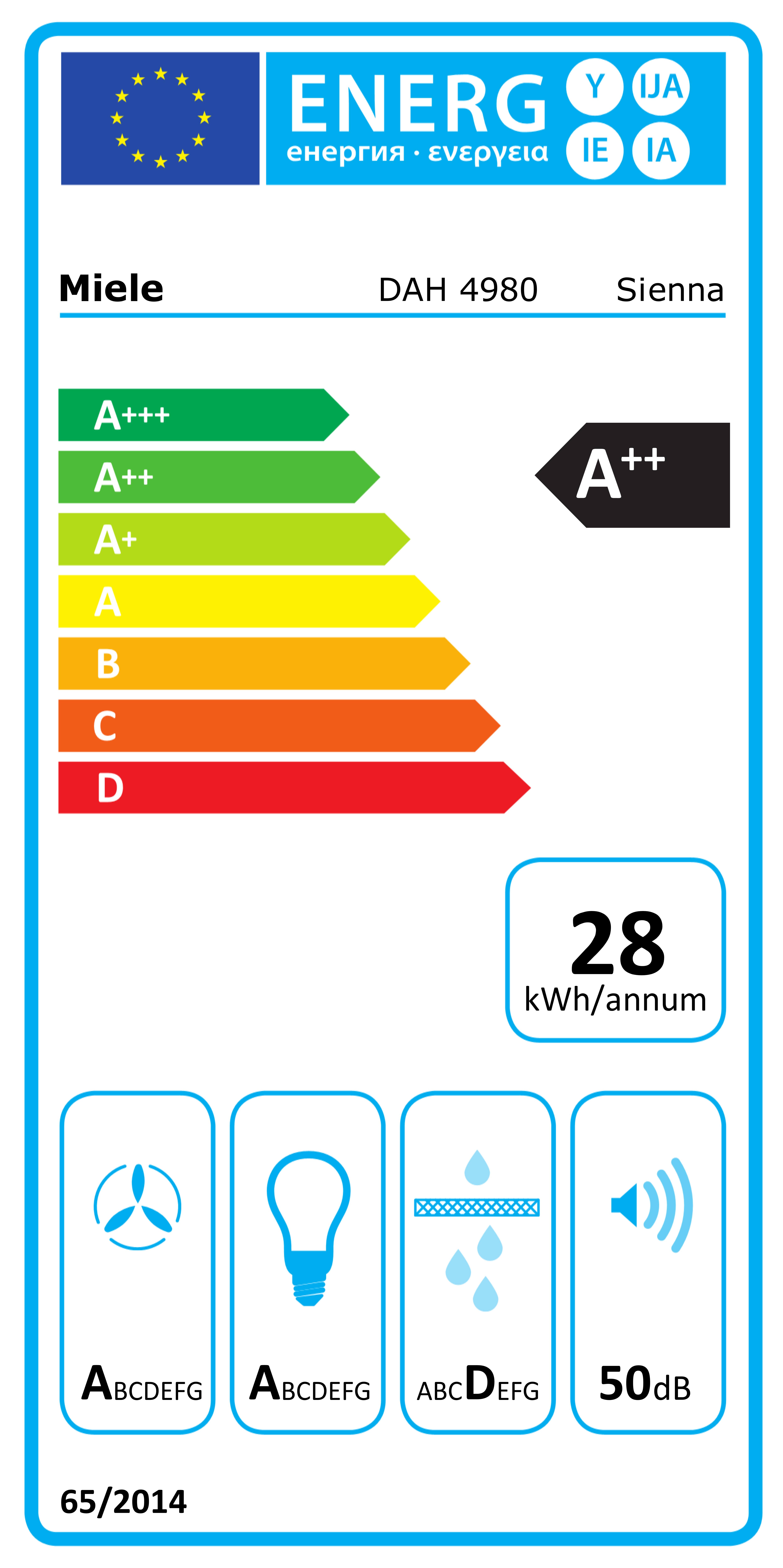

Energy efficiency class (A+++ to D)A++
Annual energy consumption in kWh/year28.20
Fluid dynamic efficiency classA
Lighting efficiency classA
Grease filtering efficiency classD
PowerManagement system
Easy-to-clean canopy interior – CleanCover
Number of dishwasher-safe stainless steel grease filters (10-ply)2
LED
Number x W1 x 3,2 W
Light intensity in Lx260 lx
Colour temperature in K3500 Kelvin
Dimmer function
Dual-action blower
DC motor
Air throughput in Level 1 (m³/h) according to EN 61591215
Air throughput in Level 2 (m³/h) according to EN 61591315
Air throughput in Level 3 (m³/h) according to EN 61591415
Air throughput in booster level 1 (m³/h)660
Air throughput in booster level 2 (m³/h)875
Sound power in Level 1 (dB(A) re 1 pW) according to EN 60704-338
Sound power in Level 2 (dB(A) re 1 pW) according to EN 60704-345
Sound power in Level 3 (dB(A) re 1 pW) according to EN 60704-350
Sound power in Booster level 1 (dB(A) re 1 pW) acc. to EN 60704-361
Sound power in Booster level 2 (dB(A) re 1 pW) acc. to EN 60704-368
Sound pressure in Level 1 (dB(A) re 20 µPa) according to EN 60704-2-1324
Sound pressure in Level 2 (dB(A) re 20 µPa) according to EN 60704-2-1331
Sound pressure in Level 3 (dB(A) re 20 µPa) according to EN 60704-2-1336
Sound pressure in Booster level 1 (dB(A) re 20 µPa) acc. to EN 60704-2-1347
Sound pressure in Booster level 2 (dB(A) re 20 µPa) acc. to EN 60704-2-1354
Air throughput in Level 1 (m³/h) according to EN 61591175
Air throughput in Level 2 (m³/h) according to EN 61591275
Air throughput in Level 3 (m³/h) according to EN 61591430
Air throughput in Booster level 1 (m³/h) according to EN 61591625
Air throughput in Booster level 2 (m³/h) according to EN 61591720
Sound power in Level 1 (dB(A) re 1 pW) according to EN 60704-346
Sound power in Level 2 (dB(A) re 1 pW) according to EN 60704-353
Sound power in Level 3 (dB(A) re 1 pW) according to EN 60704-364
Sound power in Booster level 1 (dB(A) re 1 pW) acc. to EN 60704-373
Sound power in Booster level 2 (dB(A) re 1 pW) acc. to EN 60704-376
Sound pressure in Level 1 (dB(A) re 20 µPa) according to EN 60704-2-1332
Sound pressure in Level 2 (dB(A) re 20 µPa) according to EN 60704-2-1339
Sound pressure in Level 3 (dB(A) re 20 µPa) according to EN 60704-2-1350
Sound pressure in Booster level 1 (dB(A) re 20 µPa) acc. to EN 60704-2-1359
Sound pressure in Booster level 2 (dB(A) re 20 µPa) acc. to EN 60704-2-1362
Safety shut-off
Single-ply safety glass (ESG)
Overall height for vented and external in in. (mm)830
Overall height for extraction mode and external mode cooker hoods in mm1210
Overall height for recirculation in in. (mm)420
Overall height for recirculation mode cooker hoods in mm420
Canopy width in in. (mm)898
Canopy height in in. (mm)420
Depth of hood canopy in in. (mm)381
Minimum height above electric hobs in mm450
Minimum safety distance above gas hobs (max. 12.6 kW total power, burner ≤ 4.5 kW) in mm650
Net weight in kg18
Length of supply lead in m1.30
Standard plug fitted
Total rated load in kW0.22
Voltage in V230
Fuse rating in A10
Frequency in Hz50
Number of phases1
Extraction ducting connection at top
Extraction connection at top and rear
Diameter of extraction ducting connection in mm150
Non-return flap
EAN4002516802938

What's included

Non-return flap

Safety

Always on the safe side
Safety switch-off

Sensible, even in case of operating errors: the cooker hood switches off automatically after 10 hours.


Efficiency and sustainability

The heart of every cooker hood
ECO motor

Powerful and economical: the DC motor saves up to 50 % electricity compared with conventional motors.


Features

Easy to use and effective against grease
Stainless steel grease filters (10-layer)

Looks great and does a good job: effective grease filtering and easy cleaning in a dishwasher.


Performance and convenience as standard
Silence

Efficient and quiet: the fan is effectively insulated with special soundproofing mats.


Convenience and safety in detail
Miele CleanCover

Protection and easy cleaning: the smooth concealed surface prevents contact with electrical components and motor.


Decorative panels instead of metal grease filters
Edge extraction

Efficient and beautiful: With edge extraction grease filters are concealed by a stainless steel or glass panel.


User convenience

Automatic operation for intelligent fan control
Con@ctivity

Innovative convenience: the cooker hood reacts automatically to settings on the hob.


Automatic fan run-on
Run-on function

Odour-free room air: after cooking, the fan can be set to switch off automatically after a 5 or 15 minute run-on period.


Countdown time conveniently in view
Filter indicator

Easy filter replacement: a red light lets you know when the grease and/or active charcoal filter is saturated.


Elegant touch controls
SmartControl

High-quality and functional: enjoy convenient touch controls with a yellow display and dimmer function.


Downloads

Product sheet
PDF
Downloads
Installation plan
PDF
Downloads
Warranty conditions
PDF
Downloads
Operating instructions/Installation instructions
PDF
Downloads
ifc
ZIP
Downloads
rfa
ZIP
Downloads
fbx
ZIP
Downloads
rvt
ZIP
Downloads
dwg
ZIP
Downloads
Energy label
PDF
Downloads
Product fiche
PDF
Downloads
Energy label
PNG
Downloads
Energy label
Downloads

Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts. In the event of queries, please ring us for some no-obligation advice!

https://media.miele.com/images/2000020/200002057/20000205753.png
Descriptions
DAH4970, DAH4980 Installation drawings
1) Break-through if the mains connection is not made with a mains plug, but with a fixed connection., 2) Exhaust air opening ø 200 mm, so that the exhaust air line can be moved in the wall. Exhaust air connection ø 150 mm to the top or alternatively to the rear., 3) Air outlet for recirculated air. The distance to the ceiling or furniture mounted above the unit should be at least 300 mm.
Downloads
  • 1.A contribution to recycling costs (PRF) of 5 EUR for large domestic appliances and 10 EUR for American Side by Side refrigeration is Included in the retail price. No fees apply to Vacuum Cleaners, Accessories, Hobs, Microwaves, Hoods or Coffee Machines.
  • 2.Retail price includes 23% VAT.
  • 3.with extraction mode, Level 3 (dB(A) re 1 pW) according to EN 60704-3
