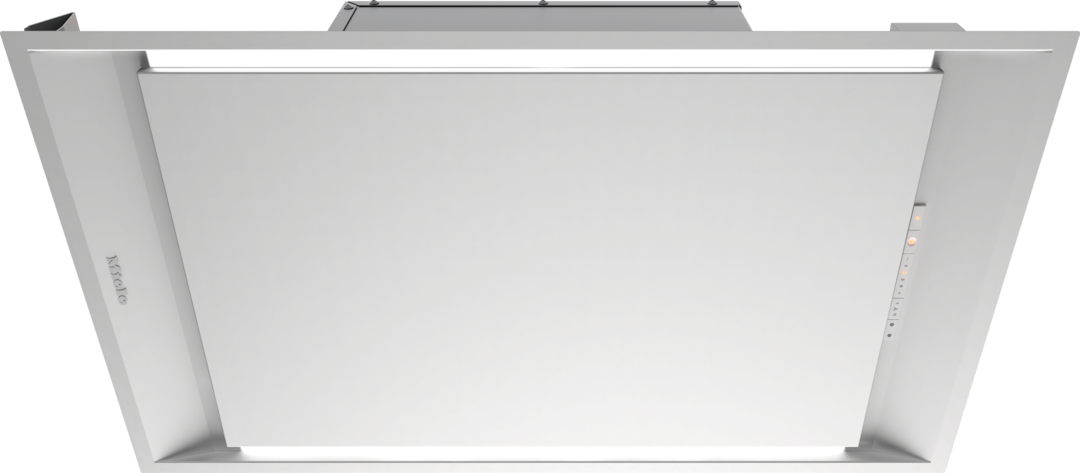

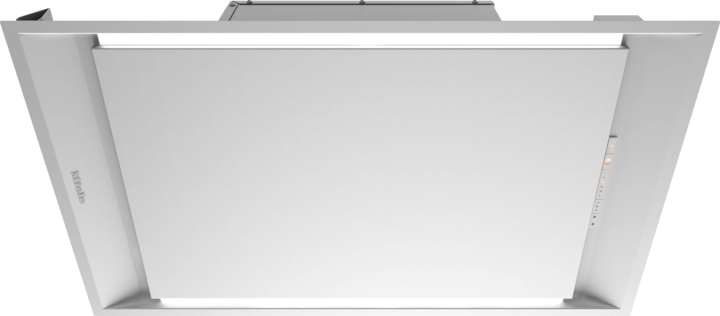

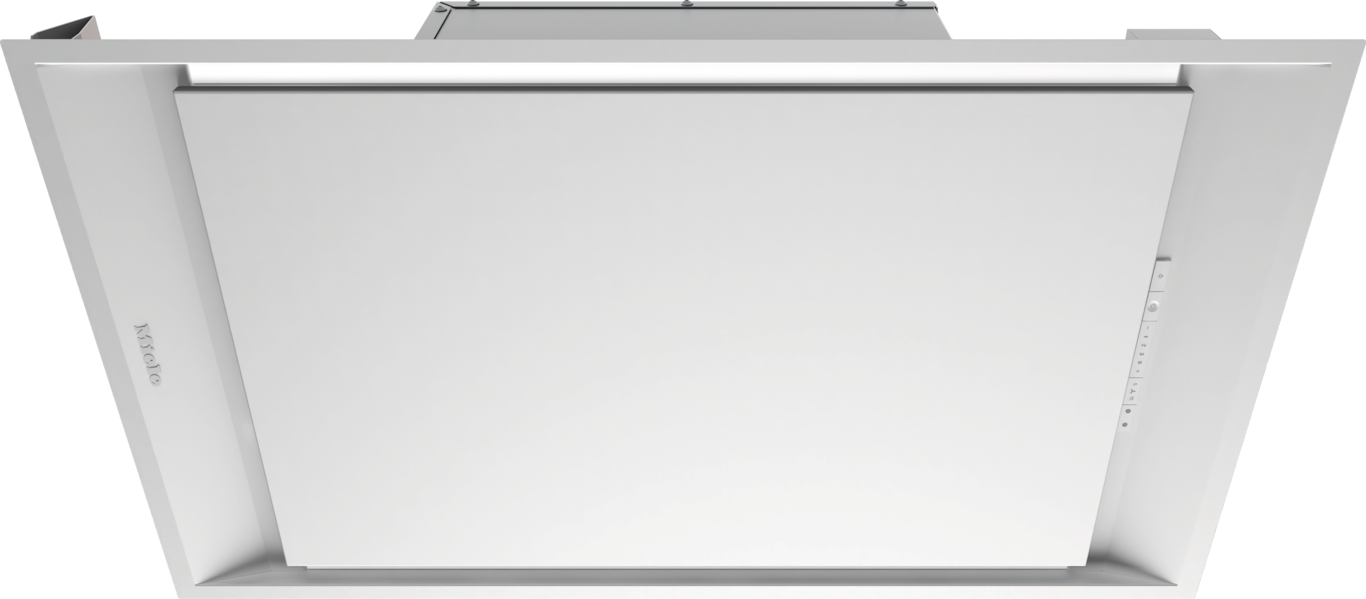

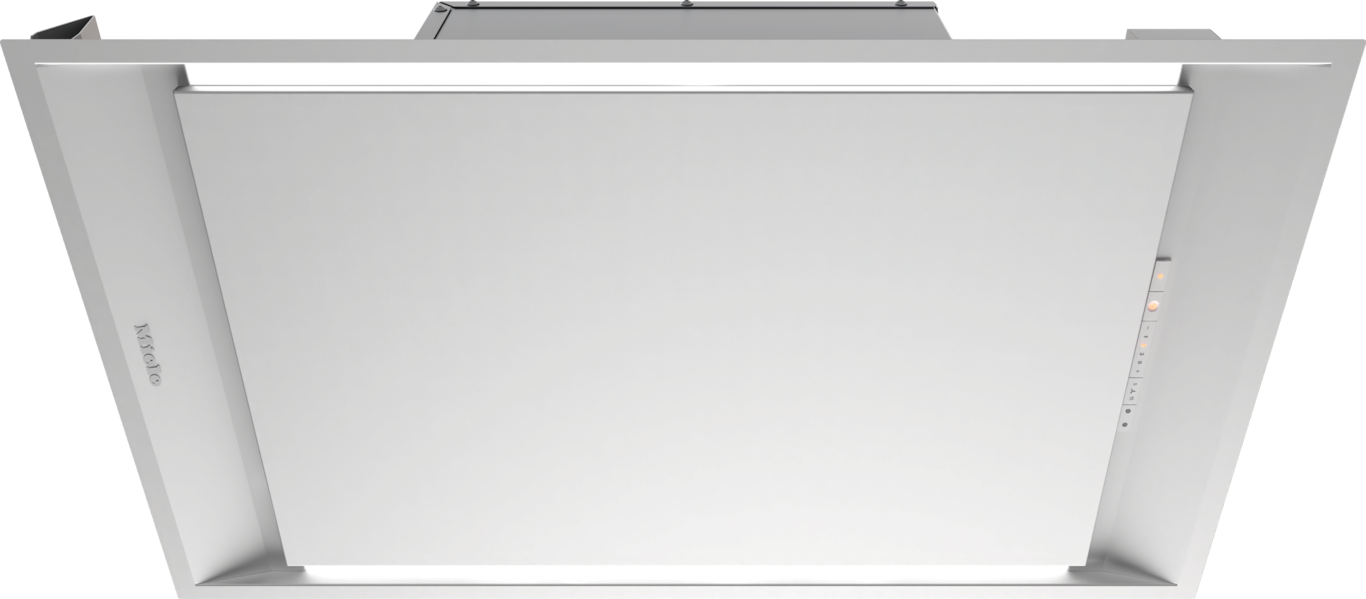

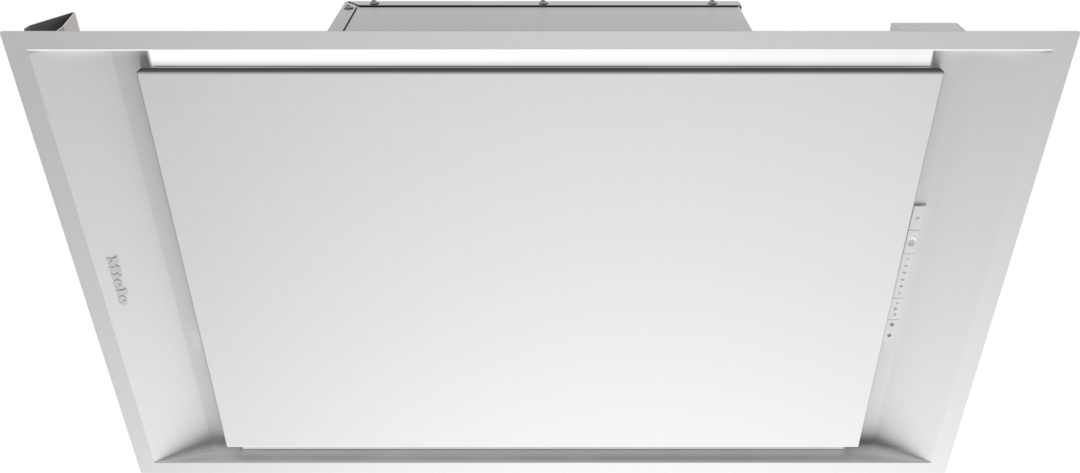

Cooker hoods - DAC 4940 Stella Ambient Matt white - 1
Cooker hoods - DAC 4940 Stella Ambient Matt white - 2
Cooker hoods - DAC 4940 Stella Ambient Matt white - 3
Cooker hoods - DAC 4940 Stella Ambient Matt white - 4
Cooker hoods - DAC 4940 Stella Ambient Matt white - 1
Cooker hoods - DAC 4940 Stella Ambient Matt white - 2
Cooker hoods - DAC 4940 Stella Ambient Matt white - 3
Cooker hoods - DAC 4940 Stella Ambient Matt white - 4
Ceiling extractor

DAC 4940 Stella Ambient Matt white

with ambient lighting, compact and powerful in 880 mm width
Product data sheet
Colour:Matt white
sale price€2,369.99
A contribution to recycling costs (PRF) of 5 EUR for large domestic appliances and 10 EUR for American Side by Side refrigeration is Included in the retail price. No fees apply to Vacuum Cleaners, Accessories, Hobs, Microwaves, Hoods or Coffee Machines.
Retail price includes 23% VAT.



Product details

  • Easy recirculation mode installation withplug&play
  • Convenient operation – withCon@ctivityand remote control included
  • ECO motorwith minimum sound emissions at high air throughput
  • Efficient filtration-10-ply stainless-steel grease filter
  • #Panel# can be customisedCO_18575297

Product data sheet

Ceiling extractor
Type of air guideCan be retrofitted
Active charcoal filter (order separately)DKF 35-P
ColourMatt white
Edge extraction
Miele@home
Automatic function Con@ctivity
Electronic controls
Touch-on-glass controls
ControlsEasySwitch
ON/OFF switch
Power levels (number without Booster level)3
Booster levels2
Programmable Booster level switch-off
Run-on time 5/15 min.
Grease filter saturation indicator
Grease filter saturation indicator
Active charcoal filter saturation indicator
Silence package
Easy-to-clean canopy interior – CleanCover

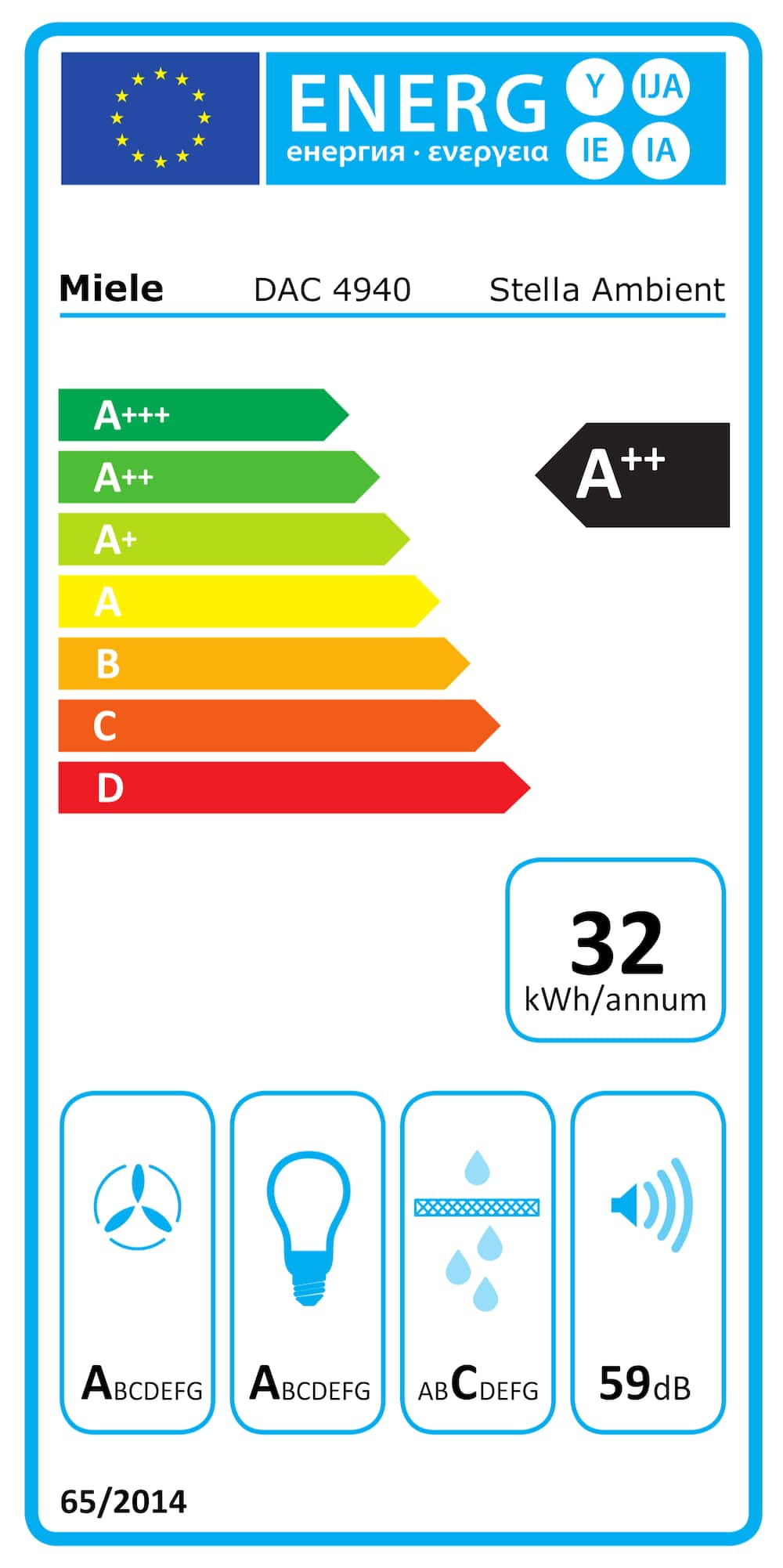

Energy efficiency class (A+++ to D)A++
Annual energy consumption in kWh/year32
Fluid dynamic efficiency classA
Lighting efficiency classA
Grease filtering efficiency classC
PowerManagement system
Easy-to-clean canopy interior – CleanCover
Number of dishwasher-safe stainless steel grease filters (10-ply)4
LED
Number x W2 x 7,2 W / 2 x 9 W
Light intensity in Lx470 lx
Colour temperature in K3500 Kelvin
Dimmer function
Ambient lighting
Dual-action blower
DC motor
Air throughput in Level 1 (m³/h) according to EN 61591235
Air throughput in Level 2 (m³/h) according to EN 61591395
Air throughput in Level 3 (m³/h) according to EN 61591505
Air throughput in booster level 1 (m³/h)680
Air throughput in booster level 2 (m³/h)755
Sound power in Level 1 (dB(A) re 1 pW) according to EN 60704-342
Sound power in Level 2 (dB(A) re 1 pW) according to EN 60704-353
Sound power in Level 3 (dB(A) re 1 pW) according to EN 60704-359
Sound power in Booster level 1 (dB(A) re 1 pW) acc. to EN 60704-366
Sound power in Booster level 2 (dB(A) re 1 pW) acc. to EN 60704-368
Sound pressure in Level 1 (dB(A) re 20 µPa) according to EN 60704-2-1326
Sound pressure in Level 2 (dB(A) re 20 µPa) according to EN 60704-2-1338
Sound pressure in Level 3 (dB(A) re 20 µPa) according to EN 60704-2-1343
Sound pressure in Booster level 1 (dB(A) re 20 µPa) acc. to EN 60704-2-1350
Sound pressure in Booster level 2 (dB(A) re 20 µPa) acc. to EN 60704-2-1352
Air throughput in Level 1 (m³/h) according to EN 61591165
Air throughput in Level 2 (m³/h) according to EN 61591325
Air throughput in Level 3 (m³/h) according to EN 61591425
Air throughput in Booster level 1 (m³/h) according to EN 61591525
Air throughput in Booster level 2 (m³/h) according to EN 61591565
Sound power in Level 1 (dB(A) re 1 pW) according to EN 60704-345
Sound power in Level 2 (dB(A) re 1 pW) according to EN 60704-358
Sound power in Level 3 (dB(A) re 1 pW) according to EN 60704-363
Sound power in Booster level 1 (dB(A) re 1 pW) acc. to EN 60704-368
Sound power in Booster level 2 (dB(A) re 1 pW) acc. to EN 60704-369
Sound pressure in Level 1 (dB(A) re 20 µPa) according to EN 60704-2-1329
Sound pressure in Level 2 (dB(A) re 20 µPa) according to EN 60704-2-1342
Sound pressure in Level 3 (dB(A) re 20 µPa) according to EN 60704-2-1348
Sound pressure in Booster level 1 (dB(A) re 20 µPa) acc. to EN 60704-2-1352
Sound pressure in Booster level 2 (dB(A) re 20 µPa) acc. to EN 60704-2-1354
Safety shut-off
Overall hood height for extraction mode and external in mm196
Overall hood height for recirculation and external in mm196
Overall height for vented and external in in. (mm)196
Overall height for extraction mode and external mode cooker hoods in mm196
Overall height for recirculation in in. (mm)196
Overall height for recirculation mode cooker hoods in mm196
Canopy width in in. (mm)880
Canopy height in in. (mm)196
Depth of hood canopy in in. (mm)500
Minimum height above electric hobs in mm450
Minimum safety distance above gas hobs (max. 12.6 kW total power, burner ≤ 4.5 kW) in mm650
Net weight in kg17.7
Length of supply lead in m1.4
Standard plug fitted
Total rated load in kW0.198
Voltage in V230
Fuse rating in A10
Frequency in Hz50
Number of phases1
Extraction ducting connection on side
Diameter of extraction ducting connection in mm150
Non-return flap
Adapter to reduce ducting diameter from 150 mm to 125 mm Ø
Remote control
EAN4002516802860

What's included

Non-return flap
Adapter to reduce ducting diameter from 150 mm to 125 mm Ø
Remote control
Easy to use and effective against grease
Stainless steel grease filters (10-layer)

Looks great and does a good job: effective grease filtering and easy cleaning in a dishwasher.

Automatic operation for intelligent fan control
Con@ctivity

Innovative convenience: the cooker hood reacts automatically to settings on the hob.

Performance and convenience as standard
Silence

Efficient and quiet: the fan is effectively insulated with special soundproofing mats.

Convenience and safety in detail
Miele CleanCover

Protection and easy cleaning: the smooth concealed surface prevents contact with electrical components and motor.

The heart of every cooker hood
ECO motor

Powerful and economical: the DC motor saves up to 50 % electricity compared with conventional motors.

Safety

Always on the safe side
Safety switch-off

Sensible, even in case of operating errors: the cooker hood switches off automatically after 10 hours.

Efficiency and sustainability

The heart of every cooker hood
ECO motor

Powerful and economical: the DC motor saves up to 50 % electricity compared with conventional motors.

Features

Easy to use and effective against grease
Stainless steel grease filters (10-layer)

Looks great and does a good job: effective grease filtering and easy cleaning in a dishwasher.

Performance and convenience as standard
Silence

Efficient and quiet: the fan is effectively insulated with special soundproofing mats.

Convenience and safety in detail
Miele CleanCover

Protection and easy cleaning: the smooth concealed surface prevents contact with electrical components and motor.

Decorative panels instead of metal grease filters
Edge extraction

Efficient and beautiful: With edge extraction grease filters are concealed by a stainless steel or glass panel.

User convenience

Automatic operation for intelligent fan control
Con@ctivity

Innovative convenience: the cooker hood reacts automatically to settings on the hob.

Countdown time conveniently in view
Filter indicator

Easy filter replacement: a red light lets you know when the grease and/or active charcoal filter is saturated.

Automatic fan run-on
Run-on function

Odour-free room air: after cooking, the fan can be set to switch off automatically after a 5 or 15 minute run-on period.

Matching products and accessories

Silencer

Silencer

reduces airflow and motor noises.

€105.00
Active AirClean charcoal filter
DKF 35-P

Active AirClean charcoal filter

for Miele KMDA 7272 and KMDA 7473.

€99.99
Roof vent
DDF 125

Roof vent

for extraction.

€399.99
Aluminium vent hose

Aluminium vent hose

flexible vent duct.

€105.00

Downloads

Operating instructions/Installation instructions
PDF
Downloads
Warranty conditions
PDF
Downloads
EU declaration of conformity
PDF
Downloads
Product sheet
PDF
Downloads
Installation plan
PDF
Downloads
rvt
ZIP
Downloads
rfa
ZIP
Downloads
fbx
ZIP
Downloads
dwg
ZIP
Downloads
ifc
ZIP
Downloads
Energy label
PDF
Downloads
Energy label
PNG
Downloads
Product fiche
PDF
Downloads
Energy label
Downloads

Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts. In the event of queries, please ring us for some no-obligation advice!

https://media.miele.com/images/2000020/200002058/20000205863.png
Descriptions
DAC2940, DAC4940, DAC4943 EXTA Installation drawings
A) Exhaust air mode, B) Recirculation mode with integrated odour filter, 1) Exhaust air connection ø 150 mm , The connection piece is on the left-hand side ex works., -The housing can be rotated by 90 degrees for exhaust air routing to the front or rear. To allow the housing to be rotated, there must be a free space of 100 mm in the ceiling in front of and behind the ceiling cut-out., -For an exhaust air duct to the right, the extractor bonnet must be installed rotated by 180 degrees., 2) Spigot ø 150 mm as air outlet in Plug&Play mode or for connecting an air duct in ducted recirculation mode. The connection piece is on the left-hand side ex works., -It is not possible to convert the spigot to the front or rear., -For an exhaust air duct to the right, the cooker bonnet must be installed rotated by 180 degrees.,
