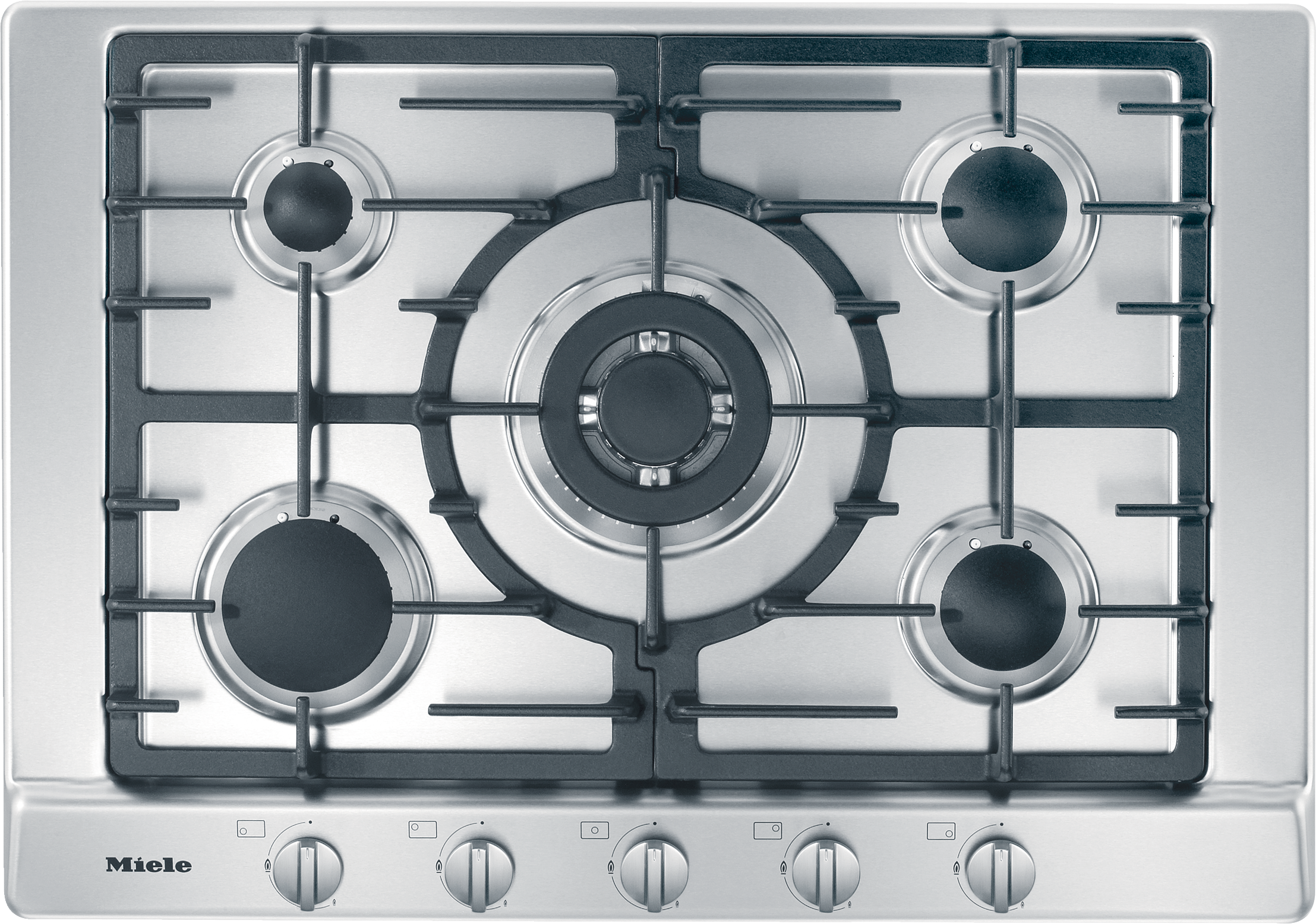

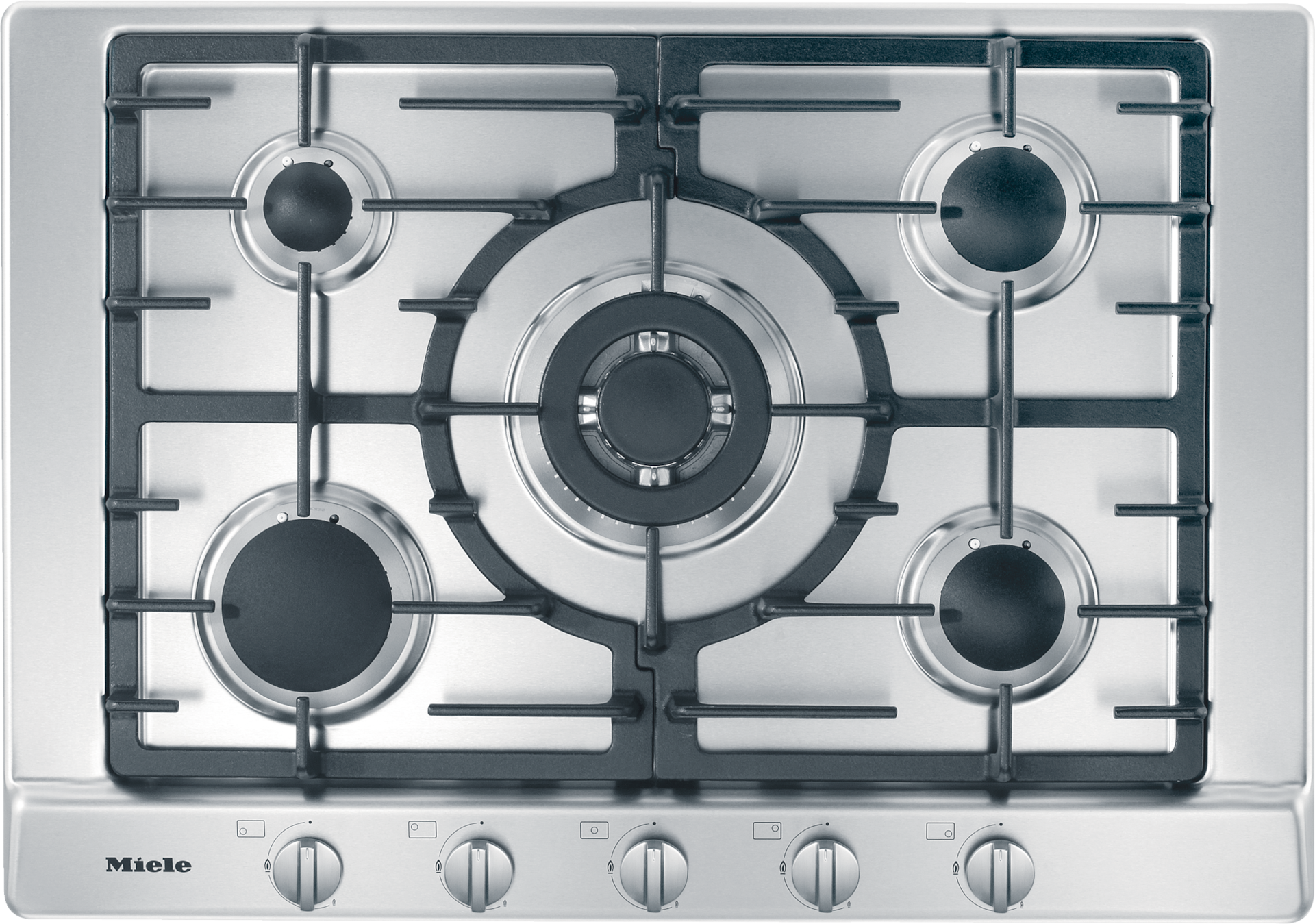

Gas hob

KM 2032

Name: KM 2032
Brand: Miele
SKU: 7113320
Price: 1219.99 EUR
Availability: OutOfStock

with 5 burners for extremely versatile cooking convenience.

Product data sheet

€1,219.99

A contribution to recycling costs (PRF) of 5 EUR for large domestic appliances and 10 EUR for American Side by Side refrigeration is Included in the retail price. No fees apply to Vacuum Cleaners, Accessories, Hobs, Microwaves, Hoods or Coffee Machines.

Additional services

You can select the following services for this product in your basket:

Built-In Installation (€70.00)
WEEE Collection (€0.00)

Product details

Simple controls -single-handed operation via rotary dial control
Professional design - 750 mm wide stainless steel trough
Particularly versatile - 5 burners incl. 1 mono wok
Extremely safe -GasStop function
Easy cleaning - dishwasher-safe ComfortClean pot rests

Product data sheet

Heating typeGas

Independent of cooker

Stainless steel trough

Cast iron pot rests (matt black enamelled)

Number of cooking zones5

Small burner in kW1

Medium burner in kW1.75

Large burner in kW2.60

Mono wok burner in kW3.80

Positionfront left

TypeHigh-speed burner

Positionrear left

TypeEconomy burner

PositionCentred

TypeSingle wok burner

Positionrear right

TypeStandard burner

Positionfront right

TypeStandard burner

Operation via knobs

Electronic ignition with single-hand operation

Dishwasher-proof pot rests

PerfectClean burner

GasStop

Dimensions (W x D) in mm750 x 90 x 520

Dimensions in mm (width)750

Dimensions in mm (height)90

Cut-out dimensions (W x D) with surface-mounted installation in mm560 x 480

Dimensions in mm (depth)520

Cutout dimensions in mm (width) with surface-mounted installation560

Cutout dimensions in mm (depth) with surface-mounted installation480

Weight in kg16

Position of gas connectionHinten links

Voltage in V220.00-240.00

Frequency in Hz50.00-60.00

Length of supply lead in m1.40

Mains cable

EAN4002514414027

What's included

Mains cable

Large variety of burner sizes for every application

Versatile burner configuration

From economical to powerful: for every application the right burner with the right output.

Efficiently protects and makes cleaning easier

ComfortClean pot rests

Fast cleaning: Remove the pot rests and wash in the dishwasher. Keeps gas hobs looking good for longer.

Safety

Flame failure monitor for maximum safety

GasStop

Reassuring: if the flame is extinguished, for example by a draught, the continued supply of gas is prevented.

Efficiency and sustainability

Efficient and environmentally friendly

Gas - efficient and environmentally friendly

With environmental and economic benefits: Cooking with gas

Features

Large variety of burner sizes for every application

Versatile burner configuration

From economical to powerful: for every application the right burner with the right output.

Design

A gas hob to suit every kitchen style

Individual design

Attractive design to suit all tastes: a minimalist stainless-steel look or elegant ceramic glass.

User convenience

Comfortably reignite the flame

Electronic ignition and single-handed controls

No need for matches or lighters: automatic ignition of burners thanks to intelligent technology.

Everything under control

Front knob controls

Easy controls to regulate: Convenient power level control via plastic or metal knobs.

Maintenance

High quality features for a long life

Enamelled pot rests and burner parts

Nothing lasts longer and is easier to clean: enamelled cast-iron pot rests and burners with PerfectClean.

Efficiently protects and makes cleaning easier

ComfortClean pot rests

Fast cleaning: Remove the pot rests and wash in the dishwasher. Keeps gas hobs looking good for longer.

Matching products and accessories

GP MI X 0011 W

Multi-purpose microfibre cloth, qty 1

For best cleaning results and safe use.

GP MI S 0031 W

MicroCloth kit, 3 pieces

For best cleaning results and safe use.

iittala cookware, set of 4 pans

from the "All Steel" range by Harri Koskinen, satin finish exclusively f. Miele.

KMTS 5704-2

Fiskars “All Steel” starter pan set (4 pieces)

stainless steel cookware with a matt brushed finish exclusively for Miele.

iittala frying pan with nonstick coating

from the matt brushed “All Steel” range, exclusively by Miele.

MicroCloth HyClean, 1 cloth

Antibacterial multi-purpose cloth for improved hygiene.

Downloads

Product sheet

PDF

Downloads

Warranty conditions

PDF

Downloads

Operating instructions/Installation instructions

PDF

Downloads

ifc

ZIP

Downloads

fbx

ZIP

Downloads

rvt

ZIP

Downloads

rfa

ZIP

Downloads

dwg

ZIP

Downloads

Product fiche

PDF

Downloads

Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts. In the event of queries, please ring us for some no-obligation advice!

https://media.miele.com/images/2000004/200000467/20000046754.png

Descriptions

KM2032G (installation drawing)

1. Front, 2 Building-in depth, 3. Gas connection R 1/2 - ISO 7-1 (DIN 10226), 4. Mains connection box with mains connection cable, L = 2000 mm

Downloads

1.A contribution to recycling costs (PRF) of 5 EUR for large domestic appliances and 10 EUR for American Side by Side refrigeration is Included in the retail price. No fees apply to Vacuum Cleaners, Accessories, Hobs, Microwaves, Hoods or Coffee Machines.

We reserve the right to make technical changes; we assume no liability for the accuracy of the information provided.
